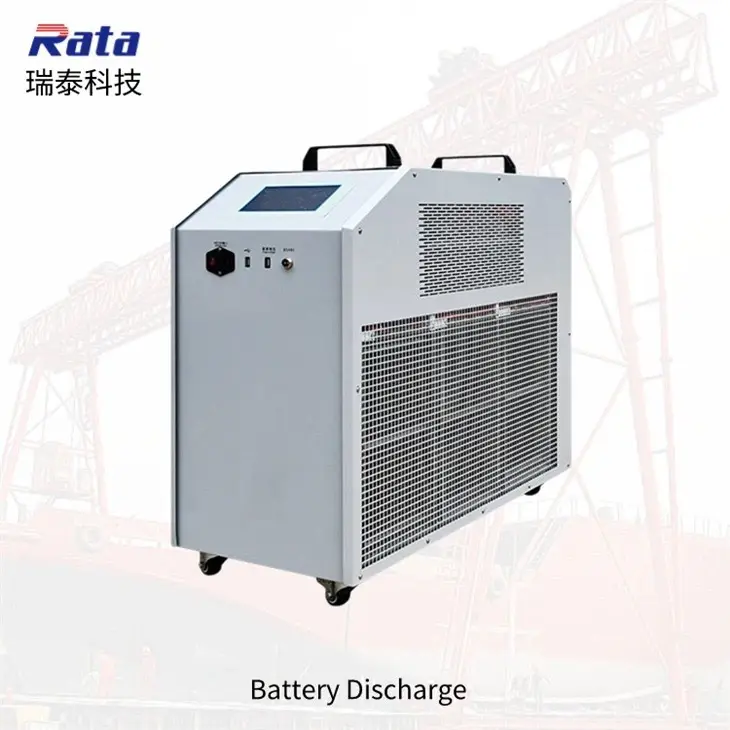

RT-BTS48-100 battery discharge tester
Battery discharge test equipment is mainly used for the discharge test of backup power lead-acid battery in Telecom, mobile, Unicom and DC power industry.
Rata is made of high quality raw materials that are well selected from suppliers.
Introduction
RT-BTS48-100 battery discharge tester is mainly used for the discharge test of backup power lead-acid battery in Telecom, mobile, Unicom and DC power industry. It has three functions of battery fast capacity test, online monitoring and capacity check test. It has high integration, small volume and perfect function.
Control system
The control of the load bank is divided into local manual control and remote PC control.
Supply list
|
Equipment components |
quantity. |
|
RT-BTS48-100 battery discharge tester |
1 |
|
Operation and Maintenance Instructions |
2 |
|
Acceptance certificate |
1 |
|
Inspection report |
1 |
|
Electrical schematic |
2 |
|
PC software |
1 |
Warranty period
2 years.
Standard
System design, production and service are strictly in accordance with the requirements of GB/t19001-2008 "Quality Management System", and refer to the following standards. The final production plan for the system shall be subject to the technical agreement agreed upon by both parties.
|
National standard |
|
|
GB/t2820.52009 |
A reciprocating internal combustion engine drives the alternator. Part 5: Generator Sets |
|
GB/t13032-2010 |
Marine diesel generator set. |
|
GB/t1029-2005 |
Test methods for three-phase synchronous motors. |
|
GB14711-2006 |
Safety requirements for small and medium rotating electrical machines. |
|
Military standard |
|
|
GJB 2815-97 |
General Specification for Military Internal Combustion Engine Loads |
|
GJB235a-97 |
General Specification for Military AC Mobile Loads |
|
GJB 235-87 |
General technical conditions for industrial and intermediate frequency mobile loads |
|
GJB 1488-93 |
General test method for military internal combustion engine load |
|
Industry Standard |
|
|
JB/t10303-2001 |
Technical conditions of power frequency diesel generator sets |
The product excels in meeting and exceeding quality standards.
Data sheet
|
Specifications |
DC48V/100A |
|
Full set of voltage resolution |
0.01V |
|
Voltage test accuracy |
0.5% |
|
Discharge current working range |
100A |
|
Constant current discharge voltage range |
48V: 40-60V |
|
Discharge current accuracy |
0.1A |
|
Current test accuracy |
1% |
|
Insulation interface |
Equipped with ground point |
|
Operating Voltage |
AC 220V±15% |
|
Cooling method |
Forced air cooling |
|
Modbus |
RS232 port and USB port |
|
Display method |
7-inch color LCD touch screen |
|
Size |
350mm*420mm*320mm |
|
Weight |
≤35kg |
More specifications
|
Rated voltage |
Input Voltage |
Discharge current |
Applicable battery pack voltage |
|
48V |
19-60V |
0-30A,50A,100A,150A,200A,300A, |
24V,36V,48V |
|
96V |
57-132V |
0-30A,50A,100A, 150A,200A,300A |
72V,96V,110V |
|
110V |
88-132V |
0-30A,50A,100A, 150A,200A,300A |
96V,110V |
|
220V |
176-264V |
0-30A,50A,100A, 150A,200A,300A |
220V,240V |
|
380V |
304-456V |
0-30A,50A,100A, 150A,200A |
380V |
|
480V |
384-600V |
0-30A,50A, 100A,150A |
480V |
