Resistive Inductive Load Bank
Resistive inductive load bank usually consists of resistive resistance, power resistance, and inductive resistance, and has various functions and parameter configurations to meet the testing needs of different types of electronic devices. The following are some application areas for resistive load banks:
All kinds of shapes are available for Rata for your choice.
Products Application
A resistive load bank is a load device used for testing electronic devices. It usually consists of resistive resistance, power resistance, and inductive resistance, and has various functions and parameter configurations to meet the testing needs of different types of electronic devices. The following are some application areas for resistive load banks:
1) Power system maintenance and testing: can be used to test the load capacity and electrical performance of equipment such as high-voltage transformers, high-voltage switches, and circuit breakers.
2) Electronic device testing: It can test the electrical characteristics of passive components such as resistors, capacitors, and inductors.
3) Research, teaching, and laboratory: suitable for various electrical testing and research.
4) Other fields: It can also be used for maintenance and testing work in communication systems, electric motors, generators, air conditioners, solenoid valves, sensors, optical fibers, semiconductors, and lasers.
In summary, resistive load banks play an important role in the testing and evaluation of electronic devices. They can simulate real load conditions and provide reliable technical support for the research and production of electronic devices.
Resistive Inductive Load bank
5000kVA/4000kW/3000kvar Load Bank
5000kVA/4000kW/3000kvar resistive inductive load bank was designed as horizontal air intake and outlet,copper bar + quick coonector for power cable connection and Rata design and produced easy instal and disassembly Ni-Cr alloy resistor based on client's application for ship generator loading test.The load bank is water and snow proof,easy to install and operation.
Air intake and outlet with electrical open and close louver,holes for load power cable inlet,IP54 rating.Quick connector design will be water/snow proof.
3125kVA/2500kW/2000kvar Load Bank
3125kVA/2500kW/2000kvar resistive inductive load bank designed as horizontal air intake and vertical air outlet,local panel switching control mode + remote PC control mode with Rata supplied operation software;Power cables connection from the side and with cover. Air intake with fixed louver that with downward tilt angle and with steel mesh inside,water proof and prevent animals go into the load bank.Air outlet with cover,open and close the cover when using or not use the load bank,water proof.

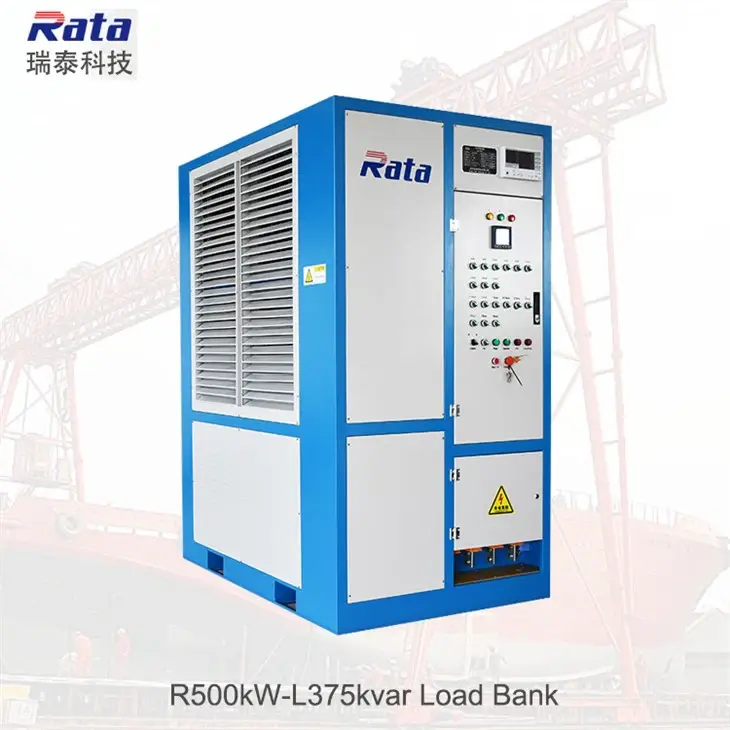

625kVA/500kW/375kvar Load bank
625kVA/500kW/375kvar resistive inductive load bank designed as indoor use.Local panel switching control mode and remote PC control mode with Rata supplied operation software.
Power cables connected with tin plated copper bar and terminal.ABCN marked for easy connection by user.
Rata produced inductor with low temperature rise about 10~15℃ when the load bank is working.
Local/Remote switch on the local panel for user to choose the control mode.
375KVA/300kW/225kvar Load bank
375kVA/300kW/225kvar resistive inductive load bank designed as indoor use,local panel switching control + remote PC control mode for use choose,there is Local/Remote switch for mode choose on the local panel.Copper bar and terminal for power cables connection,RJ45 for remote control net cable connection.
Design
Rata has professional technical team for load bank design. We supply OEM/ODM service for the clients.
Packing
Container type load bank will be packed with film for water proof and other load bank will be packed with wooden case and pallet.
Rata is simple in design and convenient in construction.
