Resistance Load Bank R200kW/400V/50Hz Structural Design
R200kW/400V/50Hz load bank is a resistance load bank developed and produced by our company. The load bank has reasonable structural design and makes full use of space layout.
Rata is engineered using best available raw materials and by implementing latest technologies.

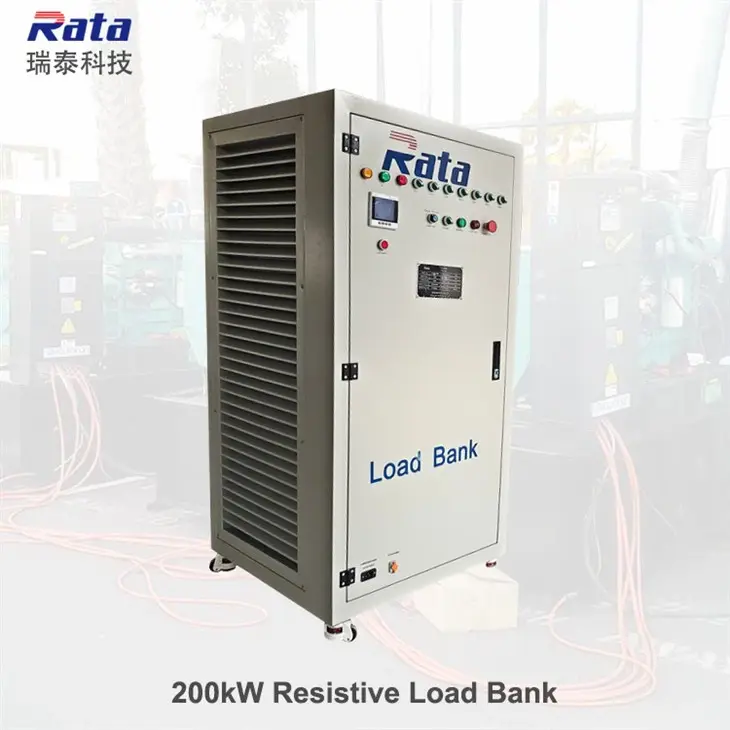

200kW Resistance Load bank
R200kW/400V/50Hz load bank is a resistance load bank developed and produced by our company. The load bank has reasonable structural design and makes full use of space layout. The appearance adopts two-color matching design. The cabinet frame adopts black frosted design and the cover plate adopts yellow frosted design. It is fashionable and beautiful. The function is controlled by local manual knob and equipped with local control of Siemens touch screen, In addition, customers can choose whether they need remote PC upper computer control.
Control system
The control of the load bank is divided into local touch screen control and remote PC control. Load data can be saved and printed based on remote PC control mode.
Supply List
|
Equipment components
|
quantity. |
|
R200kW/AC400V/50Hz/PF=1.0 |
1 |
|
Operation and Maintenance Instructions |
1 |
|
Acceptance certificate |
1 |
|
Inspection report |
1 |
|
Electrical schematic |
1 |
|
PC software |
1 |
As a professional Rata manufacturer, we concentrate on producing the best and preferential products.
Data Sheet
|
Note: all parameters are for reference only and can be customized |
|
|
Product name |
200kW load bank |
|
Specifications |
R200kW/400V/50Hz |
|
Formation |
One load bank(Including dry resistance load, electrical control components, measurement and control system) |
|
Load steps |
1kW, 2*2kW, 5kW, 2*10kW, 20kW, 50kW, 100kW |
|
Load connection |
Copper bar |
|
Resistor |
Each resistance element: insulation impedance DC1000V/100MΩ above Withstand voltage AC 2000V for 5min Resistance error of each resistance tube: ±3% |
|
Load control |
Local touch screen control and remote PC control |
|
Loading accuracy |
≤ 3% |
|
Three phase balance |
Unbalance degree ≤ 3% |
|
Minimum step |
1kW |
|
Working mode |
Continuous work |
|
Load protection |
Short circuit, overcurrent, high temperature, fan fault protection |
|
External power |
380V/50Hz |
|
Cooling mode |
Forced air cooling, horizontal air outlet |
|
Insulation class |
F |
|
Measurement accuracy |
The display accuracy is 0.5,the sampling accuracy is 0.2 |
|
Electrical parameter display |
Three phase voltage, three-phase current, frequency, power, etc |
|
Load expansion |
Parallel expansion of multiple loads |
|
Standard |
Meet international standard, ship standard, military standard and telecommunication standard |
|
Transport |
The load bank has a load-bearing lifting hole, which meets the requirements of long-distance transportation |
|
Color |
Customized |
| Dimensions | 800mm*1100mm*1200mm (L*W*H) |
| Weight | 100Kg |
|
Ambient temperature |
-20℃ to 50℃ |
|
Humidity |
Up to 100% |
|
Altitude |
Up to 2500m |
|
Atmospheric pressure |
86 to 106kPa |
