5MW Load Bank for Power Plant
5MW/11kV resistive AC 3 phase load bank used for gas power plant load test.It is container type with aire ducts for outdoor use.The load data can be saved and printed based on remote PC operation with Rata supplied software.
We always pay attention to the industry quality standards, product quality is guaranteed.
5MW Load Bank for Power Plant
Product Overview

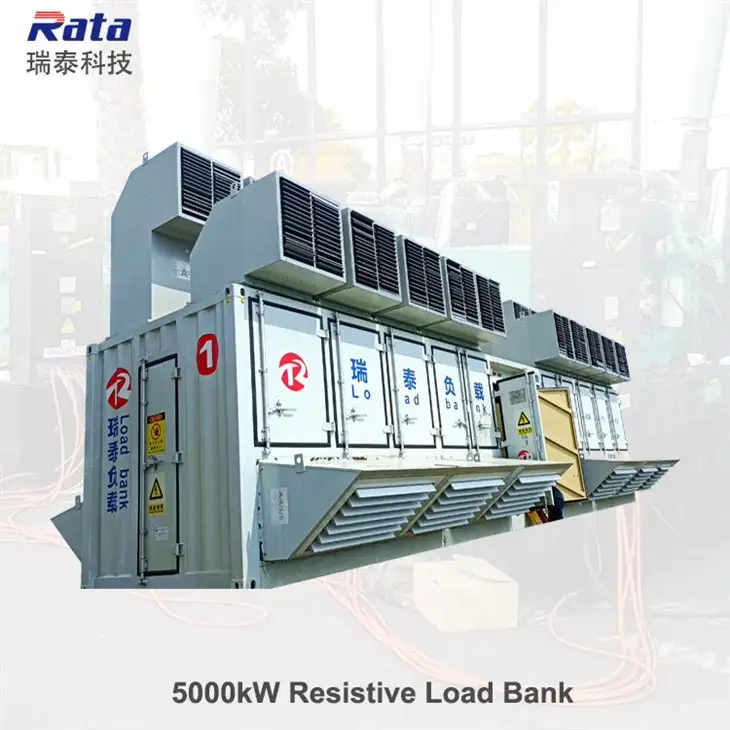

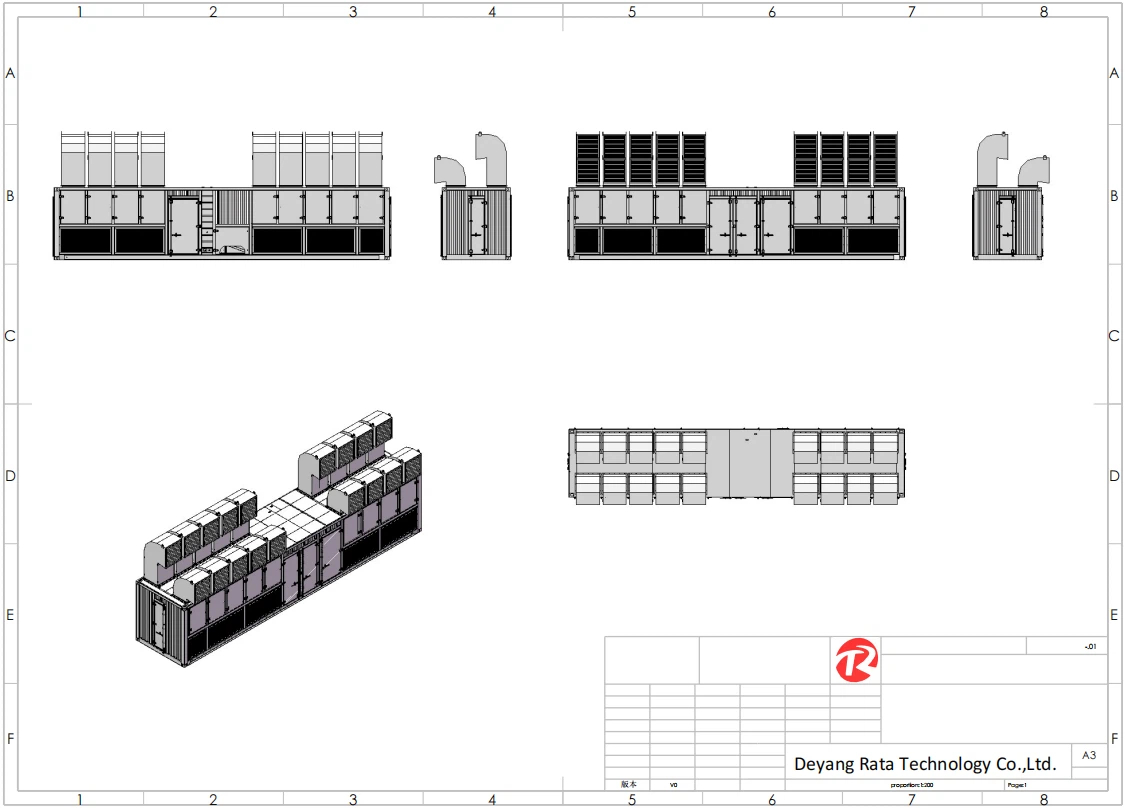

5MW/11kV resistive AC 3 phase load bank used for gas power plant load test.It is container type with aire ducts for outdoor use.The load data can be saved and printed based on remote PC operation with Rata supplied software. The load bank is 12M long caused by the voltage is 11kV, it need the high voltage contactor and enough space for resistors' installation. Air duct installed by bolts and nuts for hot air vertical outlet and water proof.
Data Sheet
|
5MW Resistive Load Bank Data Sheet |
|
|
Product name |
5000kW resistive load bank; |
| Model number | RT5000kWLB; |
| Design | Container type with air duct for outdoor use; |
|
Rated power |
AC 11kV. Connected with tin plated copper bar. Other customized voltages are available; |
| Control power |
AC380V,3 phase 4 wire,connected with quick coonector/terminal; |
| Frequency | 50Hz/60Hz; |
| Loading accuracy | ≤ 3%; |
| 3 phase balance | Unbalance degree ≤ 3%; |
| Duty cycle | Continuous work |
| Insulation | F |
|
Operation mode |
1)Local panel switching operation 2)Remote PC operation(Mod bus TCP communication protocol,PLC system,operation software,support load data save and printing); |
|
Load steps |
100kW resolution;100kW+200kW+200kW+500kW+1000kW+1000kW+1000kW+1000kW |
|
Resistor |
8020 Ni-Cr alloy finned resistor; |
|
Cooling system |
Forced air cooling;horizontal air intake and vertical outlet;Axial fan,noise less than 80dB at 3m distance; |
| Enclosure | Q235 steel,powder coated. |
|
Protection |
High temperature,low air volume,phase sequence,short circuit,fan interlock,access control,temperature and humidity control,emergency stop; |
|
Digital meter |
Voltage,current,power,power factor and frequency; |
|
Load expansion |
Parallel expansion of multiple loads; |
|
Standard |
Meet international standard,ship standard,military standard and telecommunication standard |
|
Movement |
Lift lugs on the top |
|
Color |
RAL 7035(industrial grey) |
| Dimensions | 12000mm*2530mm*2600mm (L*W*H) |
| Weight | 18000Kg |
|
Ambient temperature |
-20℃ to 50℃ |
|
Humidity |
Up to 100% |
|
Altitude |
Up to 2500m |
|
Atmospheric pressure |
86 to 106kPa |
| Warranty period | 12 months start from commissioning at clients' ste |
| Packing | Wrapping film |
Product Application
This 5MW/11kV resistive load bank used for the power station in Rawanda. It also can be used for generator load test.
Transportation and Installation
5MW/11kVAC resistive load bank has 4 lift lugs on the top four corners for movement.It is best to install the load bank on the concret platform for water proof and easily for the power cables connection.
Onsite Service
Rata supply onsite service for the load bank installation,commissioning and training.
