Product Overview
Certainly! Here is a summarized description of the “3 Phase Resistive Load Bank Factory Products Wholesale - Rata” based on the detailed introduction:
Product Features
**Product Overview**
Product Value

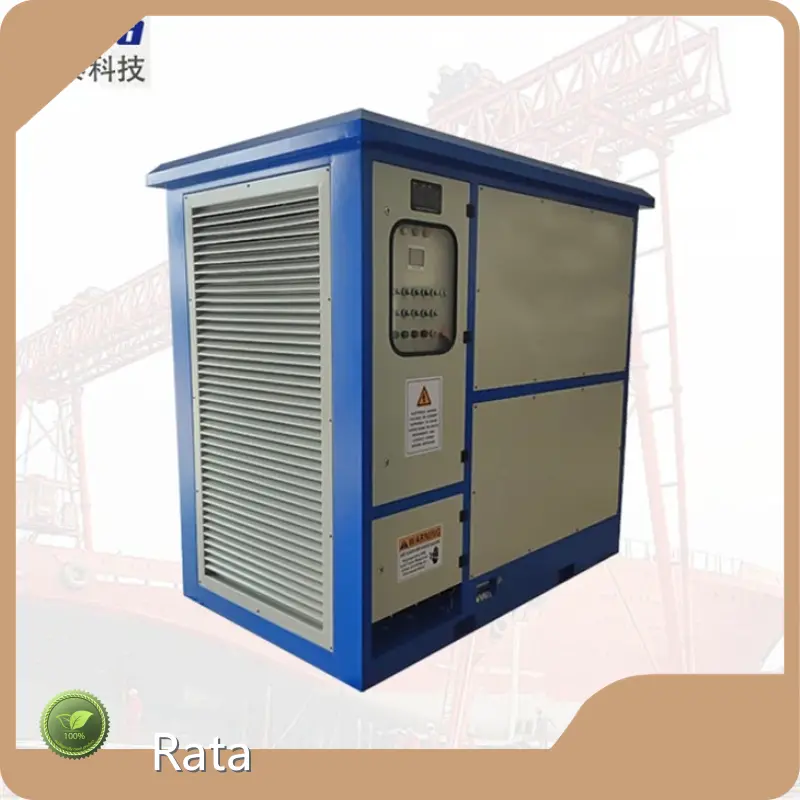

The Rata 1250kW 3-phase resistive load bank is designed primarily for outdoor applications to perform generator load testing. It features local panel switching control and is constructed for high power testing with a rated voltage of 415VAC, three-phase, four-wire system. The product is robust, with dimensions of 2220×1420×2100mm and weighs 1850 kg, making it suitable for heavy-duty use.
Product Advantages
**Product Features**
Application Scenarios
- Uses 8020 Ni-Cr alloy finned resistors for efficient and durable resistive load
- Horizontal air discharge cooling system with axial fans producing noise below 85dB at 3 meters
- IP54 rated enclosure ensuring waterproof protection, especially for outdoor use
- Local panel control with a cover for safety
- Connection with tin-plated copper bars for load power cables and terminal connections for control power cables
- Certified quality standards including CE, ISO9001:2015, ISO14001:2015, and ISO45001:2018
**Product Value**
This load bank offers reliable and precise load testing for generators, helping to ensure optimal performance and longevity of power generation equipment. The heavy-duty design combined with industry certifications increases trust and reduces operational risks and downtime in critical power systems.
**Product Advantages**
- Real object photography under natural light ensures authenticity and transparency for buyers
- Factory quality assurance guarantees freedom from defects and consistent performance within manufacturing tolerances
- The company boasts strong experience and resources, ensuring adherence to demanding quality, budget, and scheduling needs
- The factory’s Target Operating Model System (TOMS) aligns resources and capabilities to customer-specific requirements
- Creative thinking as a core company value fosters innovation and custom solution provision
**Application Scenarios**
The Rata 3 phase resistive load bank is versatile and applicable across various industries requiring generator testing and load simulation. Its outdoor design and robust control systems make it suitable for on-site testing in power plants, manufacturing facilities, data centers, utilities, and other sectors needing reliable power system verification and maintenance. The company emphasizes providing one-stop overall solutions tailored to customer use cases.
Data Sheet
|
1250kW Resistive Load Bank Data Sheet |
|
|
Product name |
1250kW resistive load bank; |
| Model number | RT1250kWLB; |
| Design | Outdoor design with canopy; IP54 |
|
Rated power |
Customized voltages are available; connected with tin plated copper bar; |
| Control power |
AC380V,3 phase 4 wire,connected with quick coonector/terminal; |
| Frequency | 50Hz/60Hz; |
| Loading accuracy | ≤ 3%; |
| 3 phase balance | Unbalance degree ≤ 3%; |
| Duty cycle | Continuous work |
| Insulation | F |
|
Operation mode |
Options 1)Local panel switching operation 2)Remote PC operation(Mod bus TCP communication protocol,PLC system,operation software,support load data save and printing); |
|
Load steps |
1kW resolution;1kW+2kW+2kW+5kW+10kW+10kW+20kW+50kW+50kW+100kW×11 |
|
Resistor |
8020 Ni-Cr alloy finned resistor; |
|
Cooling system |
Forced air cooling;horizontal air intake and outlet; |
| Enclosure | Q235 steel,powder coated. |
|
Protection |
High temperature,low air volume,phase sequence,short circuit,fan interlock,emergency stop; |
|
Digital meter |
Voltage,current,power,power factor and frequency; |
|
Load expansion |
Parallel expansion of multiple loads; |
|
Standard |
Meet international standard,ship standard,military standard and telecommunication standard |
|
Movement |
Forklift holes |
|
Color |
Customized RAL color |
| Dimensions | 2220×1420×2100mm(L*W*H) |
| Weight | 1850Kg |
|
Ambient temperature |
-20℃ to 50℃ |
|
Humidity |
Up to 100% |
|
Altitude |
Up to 2500m |
|
Atmospheric pressure |
86 to 106kPa |
| Warranty period | 12 months start from commissioning at clients' ste |
| Packing | Wooden case + wooden pallet |
