3 Phase Resistive Load Bank Factory Resistive Load Bank Wholesale - Rata
Product Overview

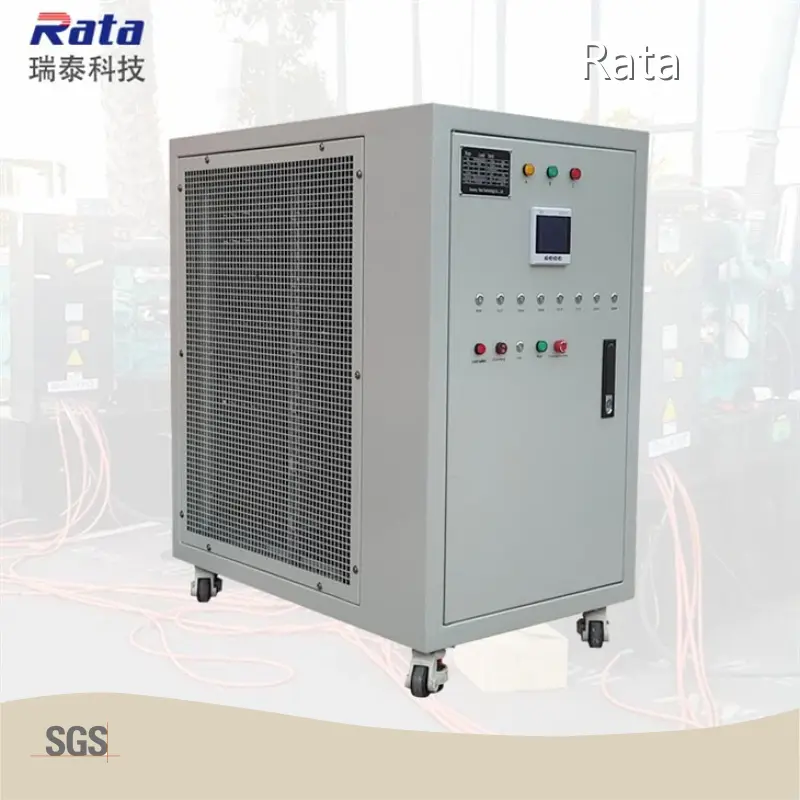

- Product Overview: Rata offers a 100kW load bank with various design options such as indoor/outdoor, local panel switching control, touch screen control, and remote PC control. The load bank is designed for easy movement with universal wheels and comes with easy-to-operate control software.
Product Features
- Product Features: The load bank is made with high-quality parts from top brands, ensuring good quality and long service life with regular maintenance and normal operation. It also features a maintenance schedule to ensure optimal performance and durability.
Product Value
- Product Value: Rata provides 7x24 after-sales service, ensuring quick responses to any issues. The company holds quality certificates such as CE, ISO9001, and SGS, offering assurance of product quality. Additionally, Rata offers OEM and ODM services for customized designs.
Product Advantages
- Product Advantages: The load bank is supported by a dedicated R&D team with advanced technology and mature design crafts, ensuring continuous optimization of products. The company prioritizes customer needs, aiming to provide excellent services from pre-sales to after-sales.
Application Scenarios
- Application Scenarios: The 100kW load bank is suitable for a wide range of applications, including testing and maintenance of power systems, generators, and other electrical equipment. The load bank is designed for easy operation and maintenance, making it ideal for various industries and environments.
Data Sheet
|
100kW Resistive Load Bank Data Sheet |
|
|
Product name |
100kW resistive load bank; |
| Model number | RT100kWLB; |
| Design | Container type with air duct for outdoor use; |
|
Rated power |
Customized voltages are available; |
| Control power |
AC230V,1 phase 2 wire,connected with quick coonector/terminal; |
| Frequency | 50Hz/60Hz; |
| Loading accuracy | ≤ 3%; |
| 3 phase balance | Unbalance degree ≤ 3%; |
| Duty cycle | Continuous work |
| Insulation | F |
|
Operation mode |
1)Local panel switching operation 2)Remote PC operation(Mod bus TCP communication protocol,PLC system,operation software,support load data save and printing); |
|
Load steps |
1kW resolution;1kW+2kW+2kW+5kW+10kW+10kW+20kW+50kW |
|
Resistor |
8020 Ni-Cr alloy finned resistor; |
|
Cooling system |
Forced air cooling;horizontal air intake and outlet; |
| Enclosure | Q235 steel,powder coated. |
|
Protection |
High temperature,low air volume,emergency stop; |
|
Digital meter |
Voltage,current,power,power factor and frequency; |
|
Load expansion |
Parallel expansion of multiple loads; |
|
Standard |
Meet international standard,ship standard,military standard and telecommunication standard |
|
Movement |
Universal wheels |
|
Color |
RAL 7035(industrial grey) |
| Dimensions | 700mm*500mm*960mm (L*W*H) |
| Weight | 105Kg |
|
Ambient temperature |
-20℃ to 50℃ |
|
Humidity |
Up to 100% |
|
Altitude |
Up to 2500m |
|
Atmospheric pressure |
86 to 106kPa |
| Warranty period | 12 months start from commissioning at clients' ste |
| Packing | Wooden case + wooden pallet |
