Custom Rata Load Bank Company
Product Overview

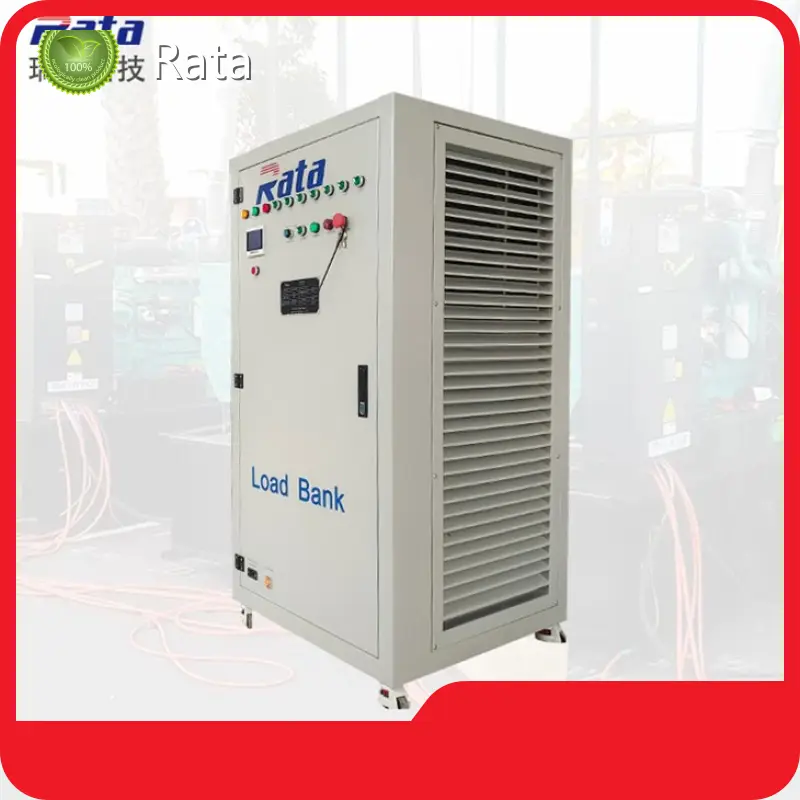

- Custom Rata Load Bank (resistive type) for generator and power-system load testing.
- Example model: 200 kW, available in indoor and outdoor configurations.
- Portable design with universal wheels and horizontal air discharge for forced-air cooling.
- Communication via RJ45; control locally by panel switches or remotely from PC software.
Product Features
- Dual control modes: local panel switching and remote PC control.
- Robust electrical connections: tin‑plated copper bus for load, quick connector for 230 V single‑phase control power.
- Forced air cooling, horizontal discharge; noise ≤85 dB at 3 m.
- Customizable: OEM/ODM, logo, color, load steps and other options.
- Transport packaging for units ≤1500 kW: wooden case and pallet.
Product Value
- Provides reliable, controlled loading for generator commissioning, maintenance and performance verification.
- Reduces downtime and operational risk by enabling accurate, repeatable load testing.
- Customization and remote-control capability increase flexibility for diverse test needs and site constraints.
- Backed by export rights and international certifications for use in global projects.
Product Advantages
- Manufactured under strict quality control and tested to international standards (CE, ISO9001, ISO14001, ISO45001, SGS).
- Uses first‑tier branded components to ensure durability and long service life with routine maintenance.
- Strong R&D and technical team, plus university cooperation for ongoing product improvement.
- 24/7 after‑sales support and responsive service for fast issue resolution.
- Proven partnerships with major industry names (ABB, Schneider, Omron, Siemens, Phoenix Contact, Delixi).
Application Scenarios
- Generator load testing during commissioning, routine maintenance and emergency simulation.
- Power plant and industrial site testing, factory acceptance tests (FAT).
- Data centers, hospitals and telecom sites for UPS and backup generator validation.
- Rental fleets and service providers supporting temporary power systems and onsite testing.
- Outdoor and indoor test environments where portability and remote operation are required.
Data Sheet
|
200kW Resistive Load Bank Data Sheet |
|
|
Product name |
200kW resistive load bank; |
| Model number | RT200kWLB; |
| Design | Indoor or outdoor design; |
|
Rated power |
Customized voltages are available; connected by tin plated copper bar; |
| Control power |
AC230V,1 phase 2 wire,connected with quick coonector/terminal; |
| Frequency | 50Hz/60Hz; |
| Loading accuracy | ≤ 3%; |
| 3 phase balance | Unbalance degree ≤ 3%; |
| Duty cycle | Continuous work |
| Insulation | F |
|
Operation mode |
1)Local panel switching operation 2)Remote PC operation(Mod bus TCP communication protocol,PLC system,operation software,support load data save and printing); |
|
Load steps |
1kW resolution;1kW+2kW+2kW+5kW+10kW+10kW+20kW+50kW+100kW |
|
Resistor |
8020 Ni-Cr alloy finned resistor; |
|
Cooling system |
Forced air cooling;horizontal air intake and outlet; |
| Enclosure | Q235 steel,powder coated. |
|
Protection |
High temperature,low air volume,emergency stop; |
|
Digital meter |
Voltage,current,power,power factor and frequency; |
|
Load expansion |
Parallel expansion of multiple loads; |
|
Standard |
Meet international standard,ship standard,military standard and telecommunication standard |
|
Movement |
Universal wheels |
|
Color |
RAL 7035(industrial grey) |
| Dimensions | 1000mm*850mm*1250mm (L*W*H) |
| Weight | 250Kg |
|
Ambient temperature |
-20℃ to 50℃ |
|
Humidity |
Up to 100% |
|
Altitude |
Up to 2500m |
|
Atmospheric pressure |
86 to 106kPa |
| Warranty period | 12 months start from commissioning at clients' ste |
| Packing | Wooden case + wooden pallet |
