Product Overview
Certainly! Here is a summarized description of the “Dummy Load Bank Inductive Load Bank Factory Factory” based on the provided detailed introduction:
Product Features
**Product Overview**
Product Value

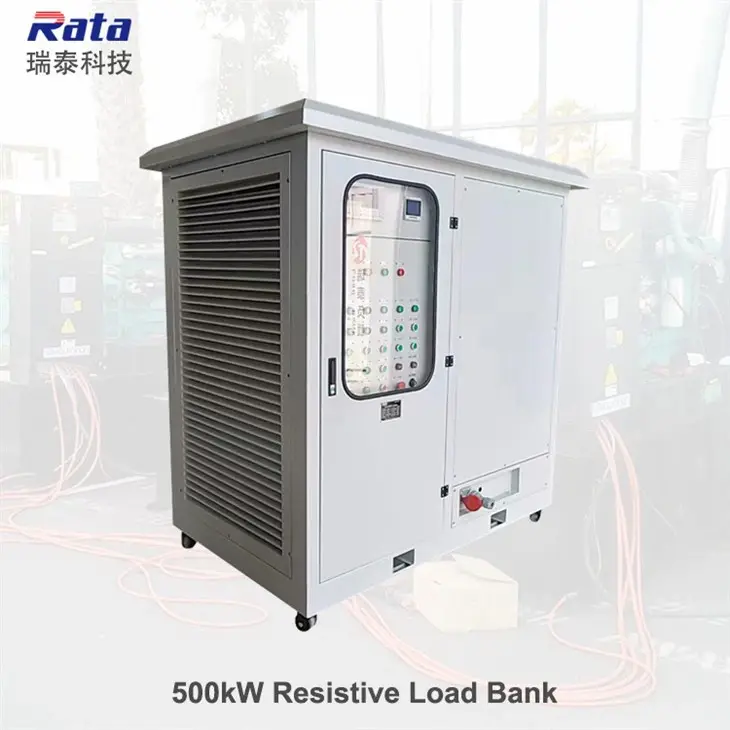

The product is a 500kW AC resistive dummy load bank designed primarily for generator load testing. It features an outdoor design with local panel switching control and remote PC control capabilities. The load is variable from 0 to 10kW with adjustable steps, making it flexible for different testing requirements.
Product Advantages
**Product Features**
Application Scenarios
- Rated power capacity of 500kW, resistive only
- Rated voltage at 415VAC, 3-phase 4-wire connection
- Control modes include local panel and remote PC, with support for load data saving and printing
- Uses 8020 Ni-Cr alloy finned resistors and forced air cooling with horizontal air discharge
- Equipped with multiple protections such as high temperature, low air volume, short circuit, and emergency stop
- Designed for outdoor use with IP54 protection rating
**Product Value**
The dummy load bank provides reliable and precise load testing for generators, helping to ensure operational safety and efficiency. Its ability to operate with both local and remote control enhances convenience and safety. The product’s robust design and high-quality components offer long-term performance and economic benefits.
**Product Advantages**
- Customizable design tailored to specific customer requirements
- Proven performance validated by third-party authorities
- High-quality manufacturing supported by an experienced and professional technical team
- Excellent reputation in both domestic and international markets with exports to over 21 countries
- Comprehensive protection features ensure safe and stable operation under various conditions
**Application Scenarios**
The load bank is widely used in industrial settings for generator testing, maintenance, and quality assurance. It is suitable for power plants, manufacturing facilities, data centers, and any environment where generator reliability and performance validation are critical. The outdoor design also allows for use in various climatic conditions.
If you need a more concise or detailed version, feel free to ask!
Data Sheet
|
Product name |
500kW resistive load bank; |
| Model number | RT500kWLB; |
| Design | Outdoor design with IP54 rating |
|
Rated power |
AC415V,3 phase 4 wire. Connected with tin plated copper bar; |
| Control power |
AC380V,3 phase 4 wire,connected with quick coonector/terminal; |
| Frequency | 50Hz/60Hz; |
| Loading accuracy | ≤ 3%; |
| 3 phase balance | Unbalance degree ≤ 3%; |
| Duty cycle | Continuous work |
| Insulation | F |
|
Operation mode |
1)Local panel switching operation 2)Remote PC operation(Mod bus TCP communication protocol,PLC system,operation software,support load data save and printing); |
|
Resistive load steps |
0~10kW variable adjustable,10kW,10kW,20kW,50kW,100kW×4 |
|
Resistor |
8020 Ni-Cr alloy finned resistor; |
|
Cooling system |
Forced air cooling;horizontal air intake and outlet;Axial fan,noise less than 80dB at 3m distance; |
| Enclosure | Q235 steel,powder coated. |
|
Protection |
High temperature,low air volume,phase sequence,short circuit,fan interlock,emergency stop; |
|
Digital meter |
Voltage,current,power,power factor and frequency; |
|
Load expansion |
Parallel expansion of multiple loads; |
|
Standard |
Meet international standard,ship standard,military standard and telecommunication standard; |
|
Movement |
Forklift holes; |
|
Color |
RAL 7035(industrial grey); |
| Dimensions | 1805×1560×1600mm |
| Weight | 950Kg |
|
Ambient temperature |
-20℃ to 50℃ |
|
Humidity |
Up to 100% |
|
Altitude |
Up to 2500m |
|
Atmospheric pressure |
86 to 106kPa |
