Product Overview

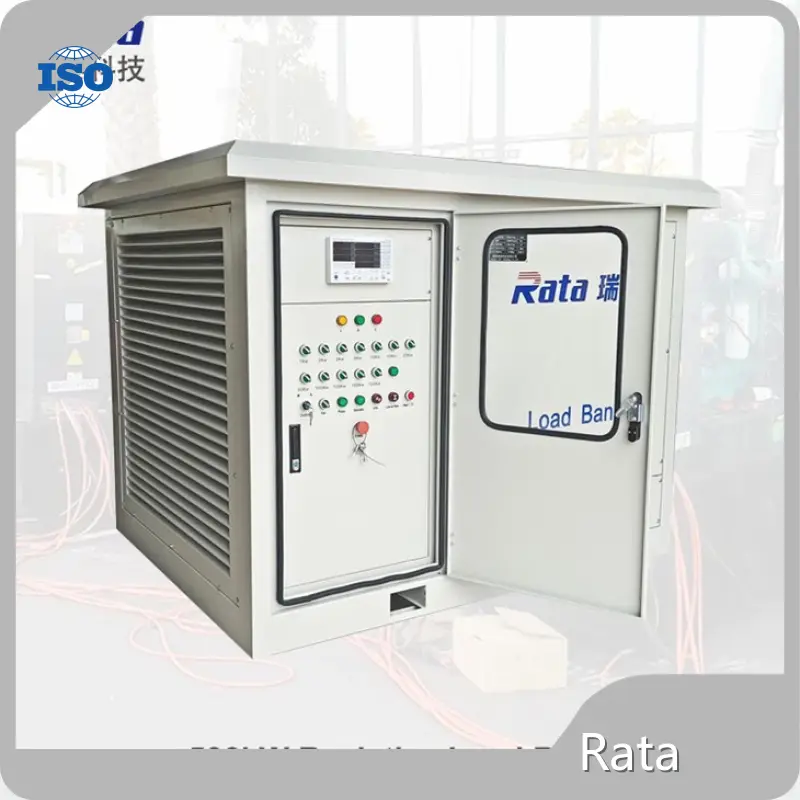

The Rata Electrical Load Bank is a resistive load bank designed for testing and evaluating the performance of power supply equipment, including generators, UPS systems, and other devices.
Product Features
The load bank has a canopy design for indoor and outdoor use, with control power AC380V and loading accuracy of ≤ 3%. It also features a digital meter for monitoring voltage, current, power, power factor, and frequency.
Product Value
Rata offers 24/7 after-sales service, OEM/ODM customization, and certificates for quality assurance. The load bank is suitable for a variety of applications and comes with comprehensive technical support.
Product Advantages
The load bank is made with high-quality parts from top brands and undergoes regular maintenance to ensure long-term service life. It is easy to maintain and comes with a warranty and lifelong technical support.
Application Scenarios
The Rata Electrical Load Bank can be used in a range of scenarios, including power supply equipment testing, electrical system maintenance, and quality assurance checks for various devices. It is suitable for indoor and outdoor use, with flexible control options for different client needs.
|
500kW Resistive Load Bank |
|
|
Product name |
500kW resistive load bank; |
| Model number | RT500KWLB; |
| Design | Canopy design for outdoor/indoor application; |
|
Rated power |
AC 380V,400V,415V,440V,690V,customized. 3 phase 4 wire. Connected with tin plated copper bar; |
| Control power |
AC380V,3 phase 4 wire,connected with quick coonector; |
| Frequency | 50Hz/60Hz; |
| Loading accuracy | ≤ 3%; |
| 3 phase balance | Unbalance degree ≤ 3%; |
| Duty cycle | Continuous work |
| Insulation | F |
|
Operation mode |
1)Local panel switching operation 2)Remote PC operation(Mod bus TCP communication protocol,PLC system,operation software,support load data save and printing); |
|
Load steps |
1kW resolution;1kW+2kW+2kW+5kW+10kW+10kW+20kW+50kW+100kW×4; |
|
Resistor |
8020 Ni-Cr alloy finned resistor; |
|
Cooling system |
Forced air cooling;horizontal air intake and outlet;Axial fan,noise less than 80dB at 3m distance; |
| Enclosure | Q235 steel,powder coated. |
|
Protection |
High temperature,low air volume,phase sequence,short circuit,fan interlock,emergency stop; |
|
Digital meter |
Voltage,current,power,power factor and frequency; |
|
Load expansion |
Parallel expansion of multiple loads; |
|
Standard |
Meet international standard,ship standard,military standard and telecommunication standard |
|
Movement |
Fork lift hoes / univesal wheels |
|
Color |
RAL 7035(industrial grey) |
| Dimensions | 1850mm*1500mm*1550mm (L*W*H) |
| Weight | 950Kg |
|
Ambient temperature |
-20℃ to 50℃ |
|
Humidity |
Up to 100% |
|
Altitude |
Up to 2500m |
|
Atmospheric pressure |
86 to 106kPa |
