Electronic Load Banks by Rata
Product Overview
Certainly! Here is a summarized description of the **Electronic Load Banks by Rata** based on the provided introduction, divided into five points:
Product Features
**Product Overview**
Product Value

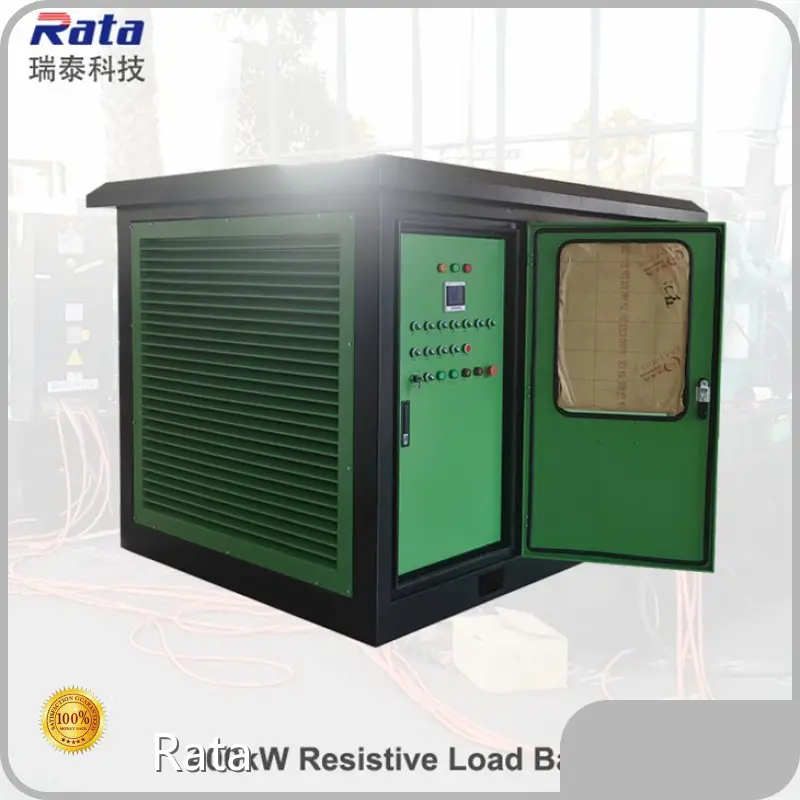

The Electronic Load Bank by Rata is a 400kW resistive load bank designed primarily for outdoor use. It features an IP54-rated enclosure with a canopy to protect against water and snow, suitable for various environmental conditions. The load bank supports both local panel switching control and remote PC control using RJ45 communication, PLC systems, and specialized operation software. Its robust construction includes high-quality components like 8020 Ni-Cr alloy resistors and Siemens PLC, ensuring reliability and durability.
Product Advantages
**Product Features**
Application Scenarios
- Outdoor IP54-rated design, weather-resistant canopy and panel cover
- Forced air cooling with horizontal air discharge via axial fan, noise below 80 dB at 3 meters
- Multiple control interfaces (RJ45, RS232, RS485) and compatibility with common protocols like Modbus TCP
- High-quality materials and components, including ABB contactors, Delixi fuses, and tin-plated copper bars for connections
- Protection against high temperature, low air volume, short circuit, overcurrent, phase sequence errors, and emergency stop
**Product Value**
Rata’s load banks offer long service life (up to 20 years under normal use) and stable performance, backed by a strong quality control system and use of premium components. The product also provides versatility in control options (local and remote), comprehensive protection features, and customized enclosure colors to meet specific customer requirements. Its proven reliability ensures a cost-effective investment for testing and load simulation needs.
**Product Advantages**
- 11 years of design and manufacturing experience with 18 patents and established global reputation
- Factory testing with detailed reports and videos provided before shipment, ensuring quality assurance
- Built using first-class branded parts for enhanced longevity and performance
- 7x24 hours customer service for pre-sales, in-sales, and after-sales support
- Compliance with multiple international standards (ISO9001, ISO14001, ISO45001, CE, IEC, GB/T, and GJB standards) ensures safety and reliability
**Application Scenarios**
This load bank is suitable for a wide range of industries and professional sectors where power load testing is necessary. Examples include power plants, generator testing, UPS system validation, and industrial power equipment maintenance. Its rugged outdoor design makes it ideal for on-site testing in various weather conditions, supporting both fixed installations and mobile power stations.
---
If you need a more condensed summary or tailored approach, please let me know!
Data Sheet
|
Product name |
400kW resistive load bank; |
| Model number | RT400kWLB; |
| Design | Outdoor design with IP54 rating |
|
Rated power |
AC415V,3 phase 4 wire. Connected with tin plated copper bar; |
| Control power |
AC380V,3 phase 4 wire,connected with quick coonector/terminal; |
| Frequency | 50Hz/60Hz; |
| Loading accuracy | ≤ 3%; |
| 3 phase balance | Unbalance degree ≤ 3%; |
| Duty cycle | Continuous work |
| Insulation | F |
|
Operation mode |
1)Local panel switching operation 2)Remote PC operation(Mod bus TCP communication protocol,PLC system,operation software,support load data save and printing); |
|
Resistive load steps |
1kW resolution;1kW+2kW+2kW+5kW+10kW+10kW+20kW+50kW+100kW×3; |
|
Resistor |
8020 Ni-Cr alloy finned resistor; |
|
Cooling system |
Forced air cooling;horizontal air intake and outlet;Axial fan,noise less than 80dB at 3m distance; |
| Enclosure | Q235 steel,powder coated. |
|
Protection |
High temperature,low air volume,phase sequence,short circuit,fan interlock,emergency stop; |
|
Digital meter |
Voltage,current,power,power factor and frequency; |
|
Load expansion |
Parallel expansion of multiple loads; |
|
Standard |
Meet international standard,ship standard,military standard and telecommunication standard; |
|
Movement |
Forklift holes; |
|
Color |
RAL 7035(industrial grey); |
| Dimensions | 1150×1400×1600mm |
| Weight | 550Kg |
|
Ambient temperature |
-20℃ to 50℃ |
|
Humidity |
Up to 100% |
|
Altitude |
Up to 2500m |
|
Atmospheric pressure |
86 to 106kPa |
