Factory Price Generator Load Bank Supplier Company
Product Overview
Certainly! Here is the summary based on the detailed introduction of the “Factory Price Generator Load Bank Supplier Company” product:
Product Features
**Product Overview**
Product Value

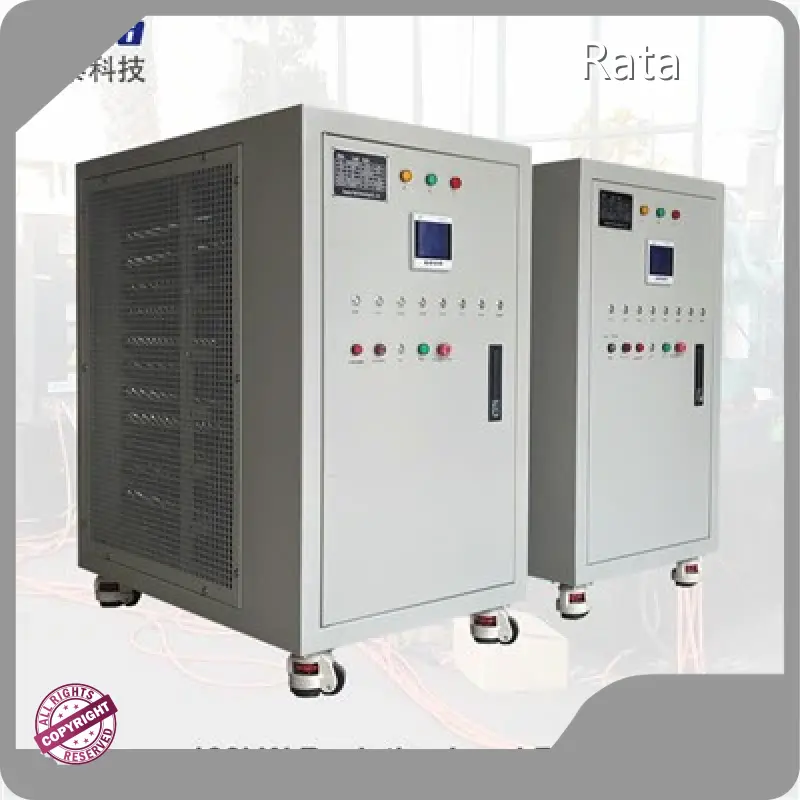

The R100kW/400V/50Hz load bank is a compact, low-voltage, pure resistive load bank developed by Rata in March 2022. It features a rated current of 145A, a power factor of 1.0, multiple step settings for load adjustments, and weighs 180 kg. The control panel is equipped with a phase sequence indicator, electrical instruments, air volume alarm, and fan controls. It supports both local manual control and remote PC control.
Product Advantages
**Product Features**
Application Scenarios
- Pure resistive load design with precise power factor of 1.0
- Multiple load step settings (1kW, 2x2kW, 5kW, 9x10kW) enabling flexible load testing
- Comprehensive control panel with safety alarms and indicators
- Dual control modes: local manual and remote PC control
- Comes with full documentation including operation manuals, acceptance certificates, inspection reports, electrical schematics, and PC software
**Product Value**
This load bank provides reliable and flexible load testing solutions tailored to generator and electrical equipment testing needs. With advanced design and high-quality manufacturing, it ensures accurate load simulation to maintain and optimize generator performance, reducing maintenance downtime and enhancing operational safety.
**Product Advantages**
- Manufactured using technologically advanced facilities ensuring high quality and safety
- Developed by an experienced team with strict adherence to national, military, and industry standards
- Comes with a two-year warranty reflecting confidence in durability and performance
- Supported by a comprehensive quality assurance system and excellent customer service
- Proven reliability and popularity in multiple markets due to superior craftsmanship and innovation
**Application Scenarios**
The load bank is suitable for use in various industries and fields where reliable generator performance testing is required. It supports applications in power generation, marine, military, industrial settings, and other sectors needing one-stop, high-quality load testing solutions to ensure generator efficiency, safety, and compliance with technical standards.
Data sheet
|
Note: all parameters are for reference only and can be customized |
|
|
Product name |
100kW load bank |
|
Specifications |
R100kW/400V/50Hz |
|
Formation |
One load bank(Including dry resistance load, electrical control components, measurement and control system) |
|
Load steps |
1kW, 2*2kW, 5kW, 2*10kW, 20kW, 50kW |
|
Load connection |
Copper bar |
|
Resistor |
Each resistance element: insulation impedance DC1000V/100MΩ above Withstand voltage AC 2000V for 5min Resistance error of each resistance tube: ±3% |
|
Load control |
Local manual control and remote PC control |
|
Loading accuracy |
≤ 3% |
|
Three phase balance |
Unbalance degree ≤ 3% |
|
Minimum step |
1kW |
|
Working mode |
Continuous work |
|
Load protection |
Short circuit, overcurrent, high temperature, fan fault protection |
|
External power |
380V/50Hz |
|
Cooling mode |
Forced air cooling, horizontal air outlet |
|
Insulation class |
F |
|
Measurement accuracy |
The display accuracy is 0.5,the sampling accuracy is 0.2 |
|
Electrical parameter display |
Three phase voltage, three-phase current, frequency, power, etc |
|
Load expansion |
Parallel expansion of multiple loads |
|
Standard |
Meet international standard, ship standard, military standard and telecommunication standard |
|
Transport |
The load bank has a load-bearing lifting hole, which meets the requirements of long-distance transportation |
|
Color |
Customized |
| Dimensions | 900mm*850mm*700mm (L*W*H) |
| Weight | 120Kg |
|
Ambient temperature |
-20℃ to 50℃ |
|
Humidity |
Up to 100% |
|
Altitude |
Up to 2500m |
|
Atmospheric pressure |
86 to 106kPa |
More specifications
|
Note: all parameters are for reference only and can be customized |
||||
|
Power(kW) |
Voltage(kV) |
Frequency(Hz) |
Size(mm,L*W*H) |
Weight(Kg) |
|
100 |
0.4 |
50/60 |
1100*900*1000 |
320 |
|
200 |
0.4 |
50/60 |
1350*1100*1100 |
450 |
|
300 |
0.4 |
50/60 |
1500*1200*1200 |
650 |
|
400 |
0.4 |
50/60 |
1700*1500*1500 |
830 |
|
500 |
0.4 |
50/60 |
1700*1500*1500 |
950 |
|
600 |
0.4 |
50/60 |
1800*1600*1600 |
1150 |
|
800 |
0.4 |
50/60 |
1900*1800*1700 |
1900 |
|
1000 |
0.4 |
50/60 |
2300*1700*2100 |
2100 |
|
1200 |
0.4 |
50/60 |
2500*1800*2200 |
2300 |
|
1500 |
0.4 |
50/60 |
2500*1860*2300 |
2600 |
|
1800 |
0.4 |
50/60 |
3000*2000*2300 |
4000 |
|
2000 |
0.4 |
50/60 |
3000*2000*2300 |
5000 |
|
2500 |
0.4 |
50/60 |
4000*2438*2500 |
6000 |
|
3000 |
0.4 |
50/60 |
6000*2438*2500 |
7000 |
