Hot Selling Rata Load Bank Company-2

Product Overview

1) Product overview

Product Features

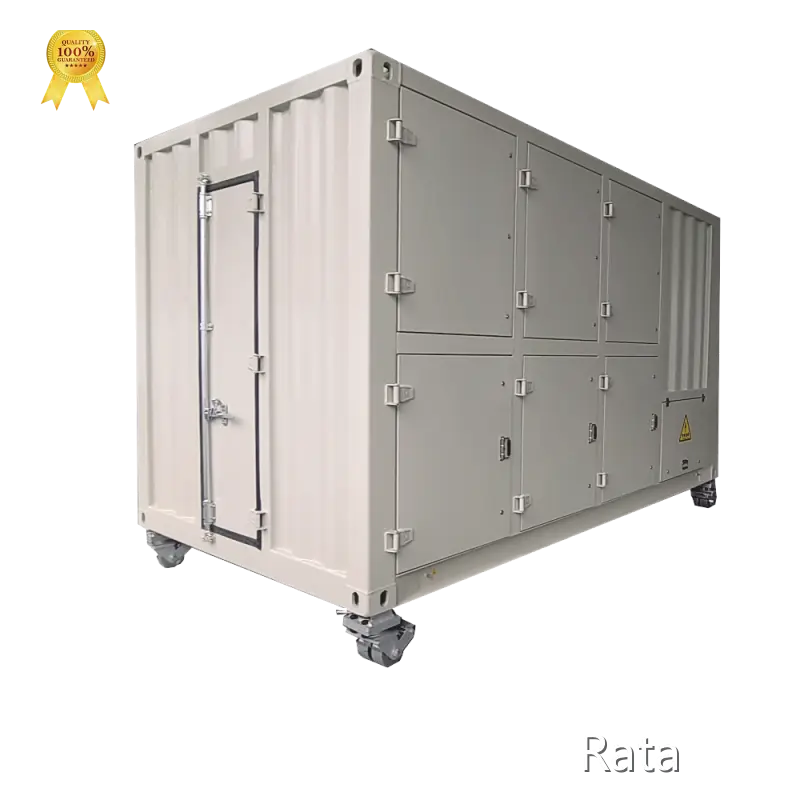

- Container-type AC resistive load bank designed for 440 VAC / 380 VAC power systems.

Product Value

- Dual rating: 2680 kW at 440 VAC and 2000 kW at 380 VAC. IP54 enclosure, dimensions 4500 × 2530 × 2600 mm, weight ~7,500 kg.

Product Advantages

- Purpose-built for high-capacity generator and power-source testing, commissioning and maintenance.

Application Scenarios

2) Product features

- Containerized design with horizontal air intake and vertical air outlet via ducting; water- and snow-proof, intake protected by cover and steel mesh. Lift lugs and customizable enclosure color.

- Control: local panel switching and remote PC control; supports generator tester, PLC systems, RJ45 (Cat6) connection, curves/charts/tables, data saving and printing.

- Load steps: 10 kW + 20 kW + 30 kW + 40 kW + 100 kW ×4 + 500 kW ×3 (flexible staged loading).

- Cooling: forced-air axial fans, noise < 80 dB at 3 m. Resistive elements: 80/20 Ni‑Cr alloy finned resistors.

- Protections: short circuit, overcurrent, overtemperature, low airflow, fan fault, emergency stop, access control and smoke alarm.

3) Product value

- Enables full-capacity, controlled load testing of large generators and power systems to verify performance, heat rejection and electrical stability under real load conditions.

- Reduces commissioning time and risk by providing reliable, repeatable load steps and comprehensive data logging/printing.

- Weatherproof container and integrated protection systems allow safe on-site use in varied environments, improving uptime and operational confidence.

4) Product advantages

- Very high power capacity in a single portable container (up to 2680 kW), suitable for utility-scale and industrial generator testing.

- Flexible control options (local/remote, PLC, PC) and fine-grained load steps for precise testing profiles.

- Rugged construction and IP54 weather protection for outdoor deployment; anti-foreign-object intake protection and lift lugs for easy movement.

- Robust safety and monitoring features plus quieter operation (≤80 dB at 3 m) compared with many open-frame solutions.

- Manufactured to international quality standards with customization and sustainable design practices.

5) Application scenarios

- Full-load and partial-load testing of diesel/gas generator sets and power plants.

- Commissioning and acceptance testing for new installations, factory or site acceptance tests.

- Routine maintenance, load bank exercise to prevent wet-stacking and ensure generator health.

- Power system verification for industrial facilities, data centers, hospitals, and large commercial sites.

- Temporary load provision or simulated loads for research, training, and development of control systems.
