Product Overview
Certainly! Here is a summary of the “Hot Selling Wholesale AC Resistive Load Bank” product based on the detailed introduction:
Product Features
**Product Overview**
Product Value

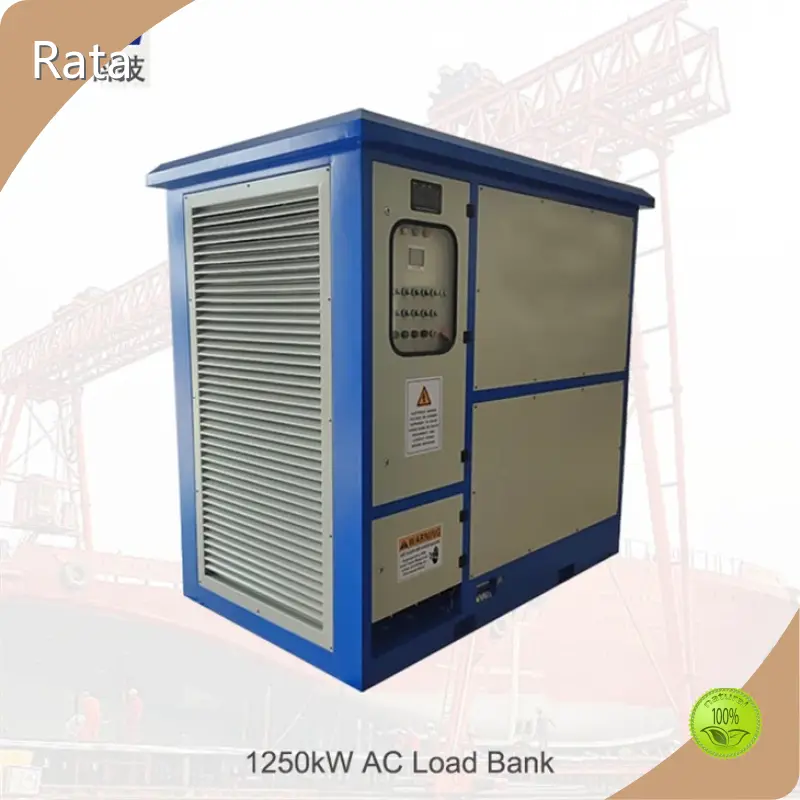

The product is a 1250kW resistive AC load bank designed primarily for outdoor applications. It operates at 415VAC, 3-phase, 4-wire and utilizes a local panel switching control mode tailored to client requirements. The load bank is equipped with tin-plated copper busbars and finned Ni-Cr alloy resistors, aimed at generator load testing.
Product Advantages
**Product Features**
Application Scenarios
- Outdoor design with canopy for protection
- Horizontal air discharge cooling with axial fans ensuring noise below 85dB at 3 meters
- IP54-rated enclosure with waterproof cover on the local control panel
- Robust build weighing 1850 kg, dimensions: 2220×1420×2100 mm
- Uses 8020 Ni-Cr alloy finned resistors for efficient resistive load generation
- Control voltage operates at 380VAC, 3-phase, 4-wire system
**Product Value**
The load bank enables reliable and accurate load testing for generators, enhancing operational safety and performance verification. Its quality-controlled manufacturing and adherence to international certifications (CE, ISO9001, ISO14001, ISO45001) ensure durability, compliance, and customer confidence. The design and noise control improve usability in various environments without disturbing surroundings.
**Product Advantages**
- Strict raw material selection and quality control guarantee product reliability
- Advanced and appealing design developed by professional designers
- High international standard compliance and certifications
- Efficient cooling and noise reduction mechanisms suitable for outdoor use
- Flexible control options based on client needs (local panel is standard, with options for remote control modes)
**Application Scenarios**
Ideal for generator load testing in industrial settings, power plants, and facilities requiring stable and controlled load simulation. It is suitable for outdoor locations requiring weather protection and noise management, supporting operations that need reliable power system validation and maintenance.
If you need a more focused summary or details on a specific part, feel free to ask!
Data Sheet
|
1250kW Resistive Load Bank Data Sheet |
|
|
Product name |
1250kW resistive load bank; |
| Model number | RT1250kWLB; |
| Design | Outdoor design with canopy; IP54 |
|
Rated power |
Customized voltages are available; connected with tin plated copper bar; |
| Control power |
AC380V,3 phase 4 wire,connected with quick coonector/terminal; |
| Frequency | 50Hz/60Hz; |
| Loading accuracy | ≤ 3%; |
| 3 phase balance | Unbalance degree ≤ 3%; |
| Duty cycle | Continuous work |
| Insulation | F |
|
Operation mode |
Options 1)Local panel switching operation 2)Remote PC operation(Mod bus TCP communication protocol,PLC system,operation software,support load data save and printing); |
|
Load steps |
1kW resolution;1kW+2kW+2kW+5kW+10kW+10kW+20kW+50kW+50kW+100kW×11 |
|
Resistor |
8020 Ni-Cr alloy finned resistor; |
|
Cooling system |
Forced air cooling;horizontal air intake and outlet; |
| Enclosure | Q235 steel,powder coated. |
|
Protection |
High temperature,low air volume,phase sequence,short circuit,fan interlock,emergency stop; |
|
Digital meter |
Voltage,current,power,power factor and frequency; |
|
Load expansion |
Parallel expansion of multiple loads; |
|
Standard |
Meet international standard,ship standard,military standard and telecommunication standard |
|
Movement |
Forklift holes |
|
Color |
Customized RAL color |
| Dimensions | 2220×1420×2100mm(L*W*H) |
| Weight | 1850Kg |
|
Ambient temperature |
-20℃ to 50℃ |
|
Humidity |
Up to 100% |
|
Altitude |
Up to 2500m |
|
Atmospheric pressure |
86 to 106kPa |
| Warranty period | 12 months start from commissioning at clients' ste |
| Packing | Wooden case + wooden pallet |
