Load Bank Rata Load Bank with Good Price
Product Overview
1) Product overview
Product Features

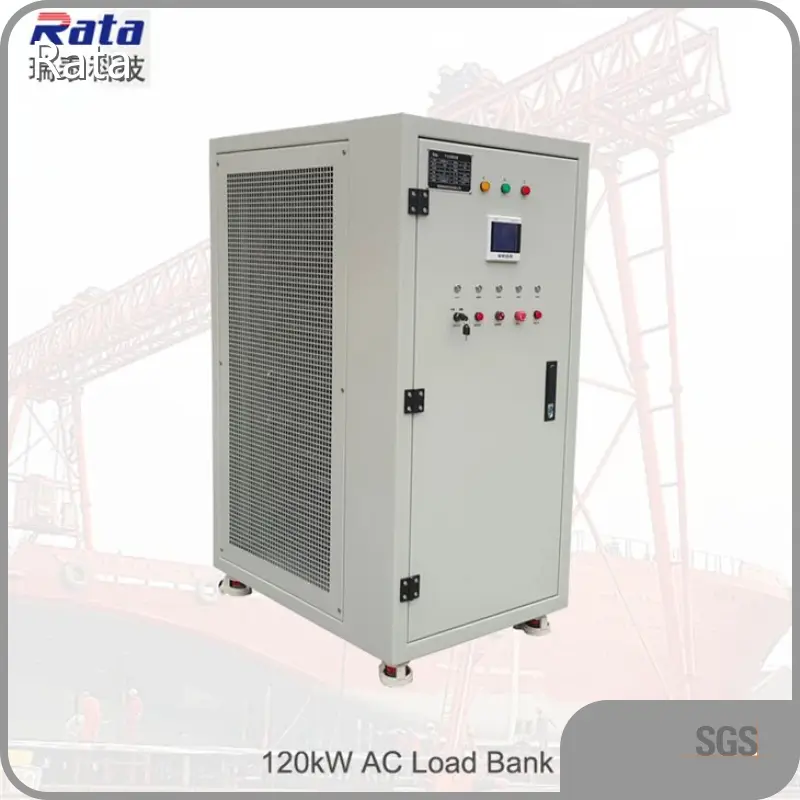

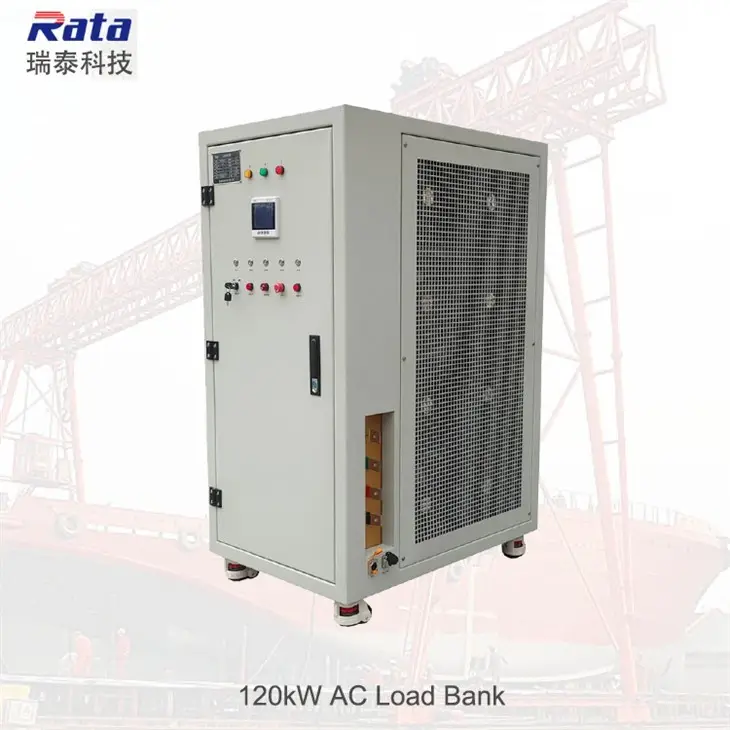

- Rata RT120KWLB is a 120 kW resistive load bank designed for indoor use. It supports 3-phase, 4-wire systems at AC 380/400/415/440 V (50/60 Hz) and is built for continuous duty. The unit is compact and portable (universal wheels and forklift slots) and is customizable to customer requirements.
Product Value
2) Product features
Product Advantages
- Five selectable 24 kW load steps (24+24+24+24+24) giving 24 kW resolution and a total of 120 kW.
Application Scenarios
- Local panel switching and remote PC control (Modbus TCP, PLC, operation software with data save/print).
- Tin‑plated copper bar with quick connectors for power cabling; control power AC 230 V.
- 80/20 Ni–Cr alloy finned resistors, forced-air cooling with horizontal intake/outlet, insulation class F.
- Digital meters for voltage, current, power, power factor and frequency; built‑in protections (over‑temp, low air volume, phase sequence, short circuit, fan interlock, emergency stop).
- Parallel expansion capability to connect multiple load banks.
3) Product value
- Provides accurate, repeatable electronic loading (≤3% loading accuracy, ≤3% phase unbalance) for commissioning, routine testing and maintenance of generators, UPSs, switchgear and power systems.
- Enables data logging and remote control for traceable test reports and easier workflow.
- Reduces downtime risk by verifying capacity and thermal behavior under controlled loads; offers a cost‑effective, customizable solution for a wide range of industries.
4) Product advantages
- Rugged build: Q235 steel, powder coated enclosure, ship/military/telecom standards compliance and wide environmental ratings (‑20 to 50 °C, up to 100% RH, up to 2,500 m altitude).
- High safety and reliability: continuous duty design, multiple protective interlocks and high‑quality Ni‑Cr resistors.
- Flexible control and expandability: local or PC/PLC operation, Modbus TCP communications, parallel expansion for larger capacities.
- Portability and easy installation: universal wheels and forklift access, quick connectors for fast setup.
- Competitive pricing and customization backed by experienced manufacturer and global sales/service network.
5) Application scenarios
- Generator and prime mover load testing and commissioning.
- UPS, switchgear and battery bank capacity verification and preventative maintenance.
- Data centers, telecommunications sites and shipboard power system testing.
- Industrial plants, electrical workshops, EPC projects and laboratory/power system R&D.
- Any facility requiring controlled, repeatable resistive loading for performance validation, troubleshooting or acceptance testing.
