Product Overview

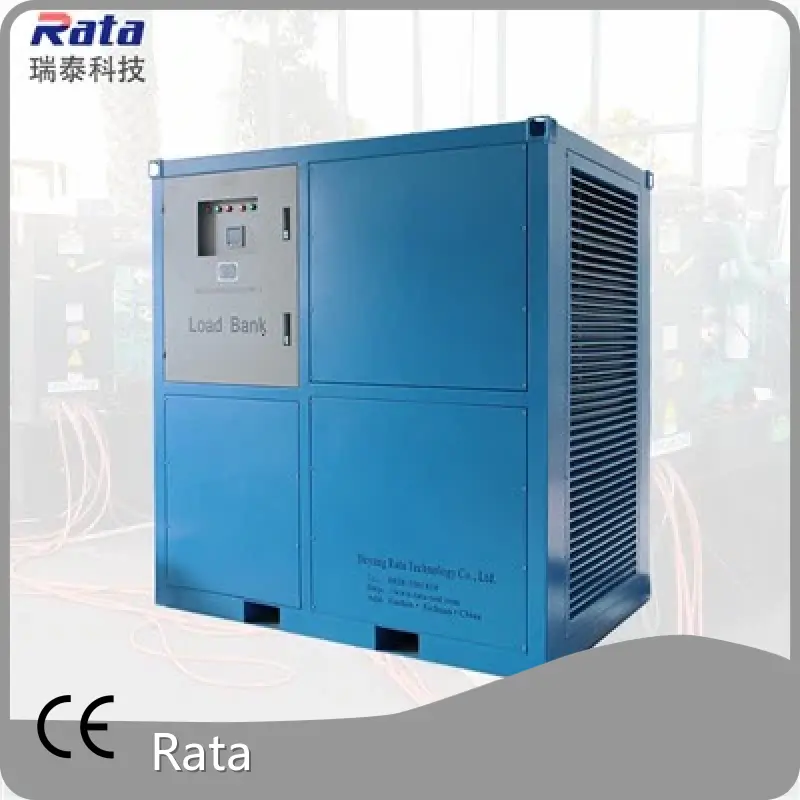

- This product is a resistive load bank manufactured by Deyang Rata Technology Co.,Ltd in China.
- It is designed to test and evaluate the performance of power supply equipment, generators, UPS systems, and other devices.
Product Features
- Can simulate various power loads
- Canopy design for indoor and outdoor use
- Local panel switching control mode and remote PC control mode
- Certificates including CE, ISO9001, ISO14001, ISO45001, and SGS
- Parallel expansion of multiple loads
Product Value
- High quality parts ensure good quality and long service life
- Lifelong technical support and services provided
- Compliance with international standards for safety and performance
Product Advantages
- Competitive advantage analysis conducted to identify strengths and weaknesses
- After-sales service available 24/7
- OEM/ODM service for customized designs
- Partnerships with reputable brands such as ABB, Schneider, Siemens, and more
Application Scenarios
- Suitable for testing power supply equipment, generators, UPS systems, and other devices
- Used in industries such as telecommunications, military, marine, and more
- Can be deployed outdoors due to its outdoor design
- Control interfaces include RJ45, RS232, and RS485, supporting common protocols like Modbus TCP.
Data Sheet
|
800kW Resistive Load Bank |
||
|
Product name |
800kW resistive load bank; |
|
| Model number | RT800KWLB; | |
| Design | Canopy design for outdoor/indoor application; | |
|
Rated power |
AC 380V,400V,415V,440V,690V,customized. 3 phase 4 wire. Connected with tin plated copper bar; |
|
| Control power |
AC380V,3 phase 4 wire,connected with quick coonector; |
|
| Frequency | 50Hz/60Hz; | |
| Loading accuracy | ≤ 3%; | |
| 3 phase balance | Unbalance degree ≤ 3%; | |
| Duty cycle | Continuous work | |
| Insulation | F | |
|
Operation mode options |
1)Local panel switching operation 2)Remote PC operation(Mod bus TCP communication protocol,PLC system,operation software,support load data save and printing); |
|
|
Load steps |
1kW resolution;1kW+2kW+2kW+5kW+10kW+10kW+20kW+50kW+100kW×7; |
|
|
Resistor |
8020 Ni-Cr alloy finned resistor; |
|
|
Cooling system |
Forced air cooling;horizontal air intake and outlet;Axial fan,noise less than 80dB at 3m distance; |
|
| Enclosure | Q235 steel,powder coated. | |
|
Protection |
High temperature,low air volume,phase sequence,short circuit,fan interlock,emergency stop; |
|
|
Digital meter |
Voltage,current,power,power factor and frequency; |
|
|
Load expansion |
Parallel expansion of multiple loads; |
|
|
Standard |
Meet international standard,ship standard,military standard and telecommunication standard |
|
|
Movement |
Fork lift hoes | |
|
Color |
RAL 7035(industrial grey) |
|
| Dimensions | 1910mm*1560mm*1950mm (L*W*H) | |
| Weight | 1350Kg | |
|
Ambient temperature |
-20℃ to 50℃ |
|
|
Humidity |
Up to 100% |
|
|
Altitude |
Up to 2500m |
|
|
Atmospheric pressure |
86 to 106kPa |
|
