Product Overview
1) Product overview
Product Features

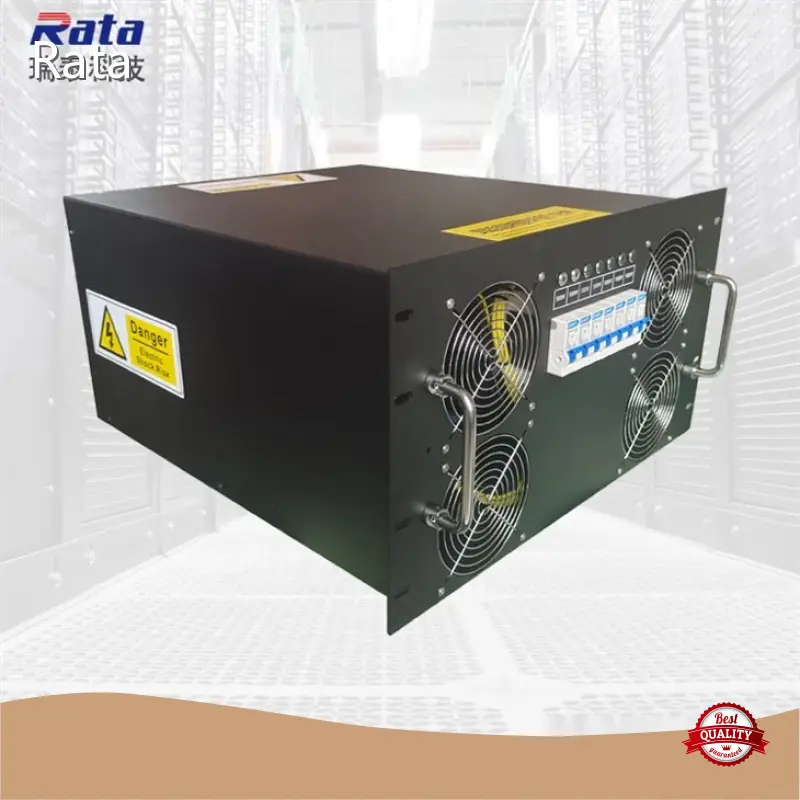

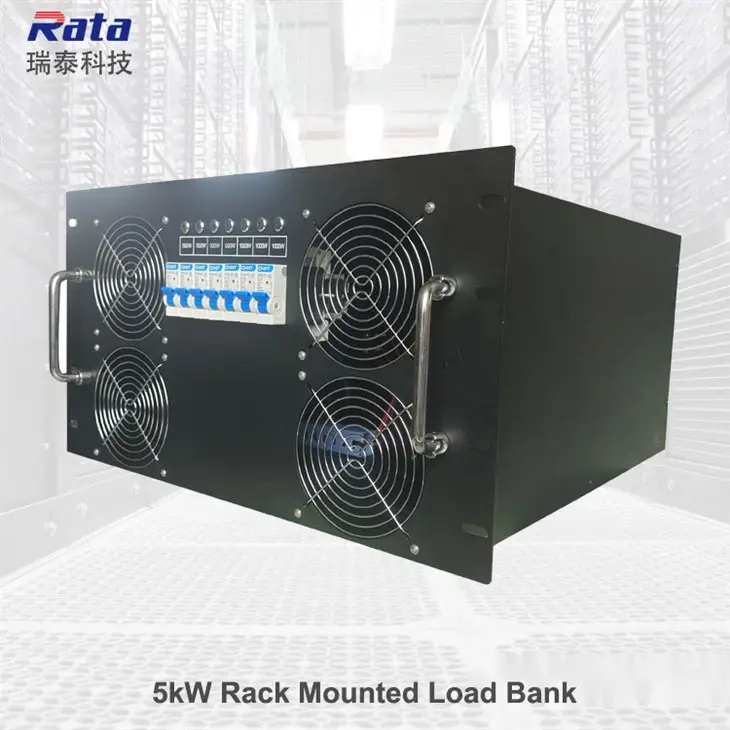

- A 5 kW rack-mounted resistive load bank (model RTLBO5-RM) designed for 19‑inch racks (5U height) for power system testing.
Product Value
- Intended primarily for data center load testing and verification of UPS, generators and distribution systems.
Product Advantages
- Single-phase operation at 230 VAC, 50 Hz, with five 1 kW load steps (1000 W × 5).
Application Scenarios
2) Product features
- Resistive finned elements with ±5% element tolerance and short‑term voltage tolerance of +5%.
- Forced-air cooling with two 150 mm fans (approx. total 820 CFM) and three airflow settings (50%/75%/100%) via fan controllers.
- Manual control panel (Schneider circuit breaker plus airflow control); optional digital meters/remote control and C19/C20 connector options.
- Protection: thermal emergency cut-out, insulation test voltage 500 VAC, control chamber IP23.
- Compact/portable: steel enclosure (RAL9005), dimensions 483 × 651 mm (W×D), weight ~26 kg, two carrying handles.
3) Product value
- Provides reliable, repeatable, and safe load simulation for commissioning and maintenance, reducing downtime risk.
- Helps validate UPS/generator capacity and cooling performance, ensuring systems perform under real load conditions.
- Economical tool for routine testing and diagnostics that supports preventive maintenance and compliance with safety standards.
4) Product advantages
- Built with advanced production technology and simplified professional design for durability and ease of use.
- Robust safety and protection features (thermal cut-off, IP23, high insulation test voltage) for secure operation in data-center environments.
- Rack-compatible 5U form factor saves space and fits standard infrastructure; lightweight and portable for flexible deployment.
- Adjustable load steps and multi‑level airflow control allow controlled testing and thermal management.
5) Application scenarios
- Data center commissioning, periodic load testing and capacity planning for UPS and PDUs.
- Generator and transfer switch validation, acceptance testing and maintenance.
- Battery bank discharge tests, power equipment QA in manufacturing and test labs.
- Field service, troubleshooting and preventive maintenance where a compact rack-mounted load is required (rated for altitudes < 2000 m and operating temps 0–75 °C).
