Product Overview
1) Product overview
Product Features

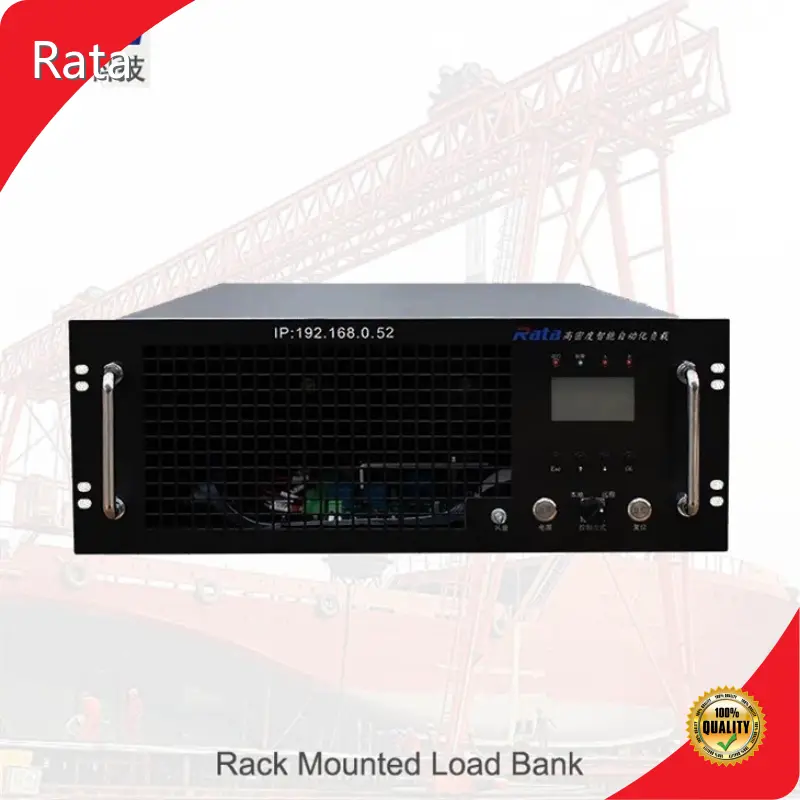

- Rack-mounted resistive load bank designed by Rata for modern high-density, intelligent, low-PUE data center environments.
Product Value
- Simulates L2 layer equipment (conventional and high-density servers, high-density routers) by emulating heat load and air flow in rack/micro-module deployments.
Product Advantages
- Available in multiple rack heights and power ratings (typical configurations from ~3 kW up to 12 kW in 3U–12U formats; custom power/grades supported).
Application Scenarios
2) Product features
- Electrical: rated voltage ~AC250 V, control power AC220 V/50 Hz, three input with independent control power input, load accuracy ±2% per step.
- Mechanical/thermal: forced air cooling (forward or rear), maximum airflow up to 1200 m³/h, manual and automatic modes, adjustable steps (typical smallest step ~0.5 kW).
- Environmental: operating temperature -20 °C to 50 °C, humidity up to 100%, altitude up to 2500 m, atmospheric pressure 86–106 kPa.
- Safety/control: manual miniature circuit breaker switching, insulation class F, customizable color and parameters.
3) Product value
- Provides reliable, repeatable, and controllable load simulation for commissioning, performance validation and thermal management tuning of racks, UPS, generators and cooling systems.
- Helps data center operators validate PUE, airflow strategies and heat-dissipation designs without risking production equipment, reducing commissioning time and costly downtime.
- Customizable design and strict quality control deliver long service life and predictable economic benefits for operators and integrators.
4) Product advantages
- Rack-optimized, compact modular design for easy integration into standard equipment racks.
- High accuracy load steps and flexible power grading to match a wide range of test scenarios.
- Robust protection suite: fire-mitigating construction (resistor modules separated by copper studs and mica), temperature alarms and automatic unload thresholds, overload alarm/disconnect, and controlled fan operation with a 3-minute post-run delay.
- Built and inspected under strict quality control with options for customization (power, grading, color), plus experienced after-sales/service support from Deyang Rata Technology.
5) Application scenarios
- Data center commissioning and acceptance testing for conventional and high-density rack deployments.
- Thermal and airflow validation in micro-modules, containment zones and cold-/hot-aisle studies.
- Load testing for UPS, generators and PDUs during maintenance or factory QA.
- R&D and production test benches for servers and networking equipment manufacturers.
- Site readiness checks, PUE optimization studies and operator training exercises.
