Rata 12v Dc Load Bank for Testing Factory
Product Overview
1) Product overview
Product Features
- Rata DC resistive load bank, model RT30V-800ALB, designed for factory/testing use.
Product Value
- Rated for DC up to 30 V and 800 A continuous, with Ni‑Cr alloy finned resistors.
Product Advantages

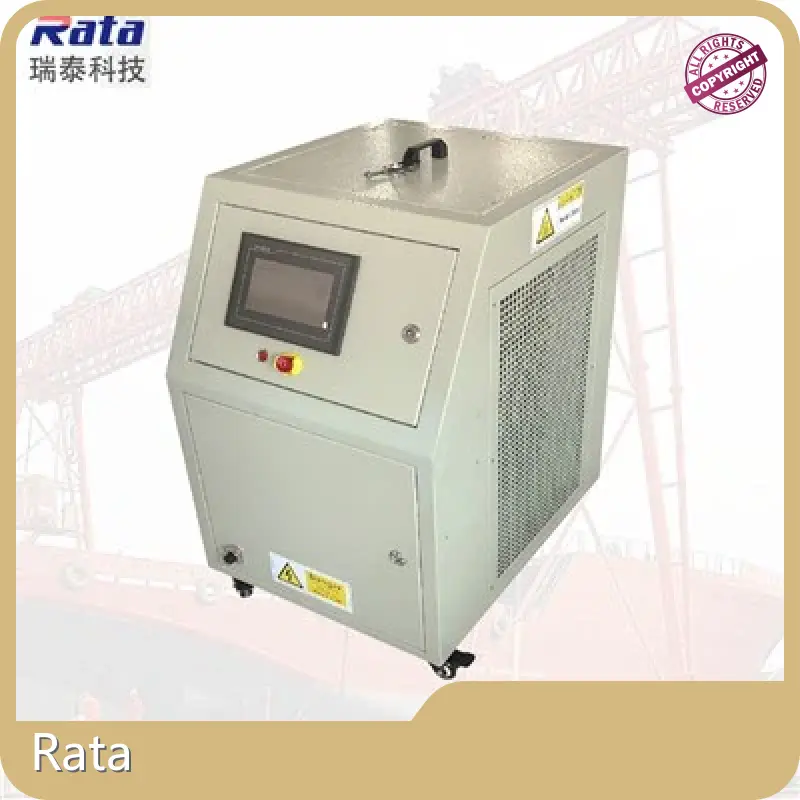

- Touch‑screen local control, mounted on a mobile cabinet (lifting holes + universal wheels).
Application Scenarios
2) Product features
- Resistive load with 50A+50A+100A×7 step arrangement for flexible load setting up to 800A.
- Real‑time display of current, voltage, power, frequency and power factor.
- Forced‑air cooling (horizontal inlet/outlet); protection class IP23.
- Protection and safety: low air volume, over‑temperature, over‑pressure, over‑current, short circuit and emergency stop.
- Power connection via copper bar and quick connector; control supply AC 230V single phase.
3) Product value
- Enables accurate, repeatable DC load testing for production QA, commissioning and R&D (load accuracy ±3%).
- Continuous-duty design supports long soak and discharge tests without downtime.
- Mobile and easy to connect, reducing test setup time and improving shop‑floor efficiency.
- Robust protection features minimize risk to DUTs and operators, improving safety and reducing test failures.
4) Product advantages
- Industrial‑grade construction with eco‑friendly materials and Ni‑Cr alloy resistors for stable, long life performance.
- Intuitive touch‑screen control plus local emergency‑stop and clear indicators for easy, safe operation.
- Well‑engineered cooling and multiple protections for reliable continuous operation.
- Packaged and shipped in wooden case; backed by an experienced production team and an established sales/service network.
5) Application scenarios
- Battery discharge and capacity testing (lead‑acid, Li‑ion, large battery banks).
- Automotive and alternator testing, DC power supply and inverter verification.
- UPS/telecom system load testing and commissioning.
- Factory production test benches, repair shops, and R&D laboratories requiring controlled DC load emulation.
