Rata 3 Phase Resistive Load Bank Supplier 3 Phase Resistive Load Bank Supplier Supplier
Product Overview
Certainly! Here's the summary of the **Rata 3 Phase Resistive Load Bank (800kW)** based on the detailed introduction:
Product Features
**Product Overview:**
Product Value

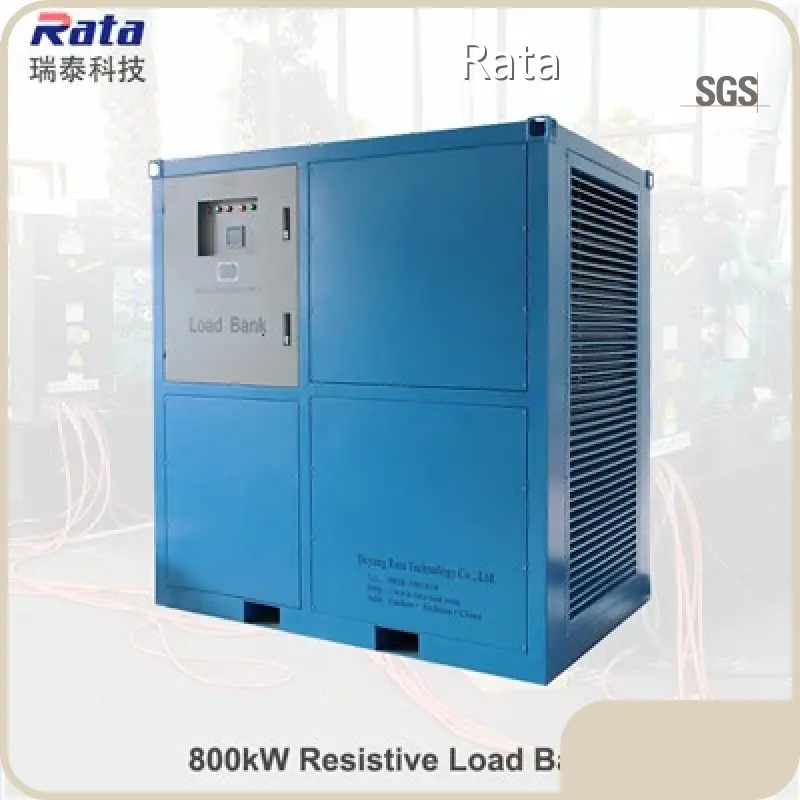

The Rata 800kW Three Phase Resistive Load Bank is designed for load testing generators and UPS systems. It supports both indoor and outdoor use with a canopy design and horizontal air discharge. It offers flexible control modes via a local panel or remote PC, enabling load data saving and printing, and is built for easy mobility with forklift holes.
Product Advantages
**Product Features:**
Application Scenarios
- Rated power customizable for AC 380V to 690V, three-phase, four-wire systems;
- Continuous duty cycle with loading accuracy ≤ 3% and balanced three-phase load (unbalance ≤ 3%);
- Equipped with high-quality 8020 Ni-Cr alloy finned resistors and forced air cooling system (noise
- Multiple control options including Modbus TCP communication protocol for remote operation;
- Comprehensive protection features including over-temperature, low airflow, phase sequence, short circuit, fan interlock, and emergency stop;
- Parallel load expansion capability;
- Digital metering of voltage, current, power, power factor, and frequency.
**Product Value:**
The load bank ensures reliable and stable performance for generator and UPS load testing, enabling accurate simulation of real-world electrical loads, which helps improve power system reliability and safety. Its high accuracy, continuous operation, and advanced control options provide users with precise and customizable testing environments. The product meets international, ship, military, and telecommunication standards, guaranteeing broad applicability and compliance.
**Product Advantages:**
- Strict quality control from raw material procurement through manufacturing;
- High cost performance and market adaptability supported by stable and reliable operation;
- Versatile application scenarios with customizable configurations;
- Certified with ISO9001:2015, ISO14001:2015, ISO45001:2018, and CE, demonstrating commitment to quality and safety standards;
- Easy transportation and installation through practical forklift holes and a compact, sturdy design.
**Application Scenarios:**
- Generator set performance testing for voltage, frequency, overload capacity, and stability;
- UPS system capacity verification and operational reliability assurance;
- Power system installation, debugging, and maintenance with simulation of diverse load conditions;
- Performance assessment of new energy sources such as solar and wind power generation systems;
- Shipboard power station testing to ensure compliance and operational safety;
- Electrical research and experimentation requiring precise and adjustable resistive loading.
This comprehensive load bank solution supports diverse industries and testing environments, promoting enhanced energy system reliability and performance.
data Sheet
|
Product name |
800kW resistive load bank; |
| Model number | RT800KWLB; |
| Design | Canopy design for outdoor/indoor application; |
|
Rated power |
AC 380V,400V,415V,440V,690V,customized. 3 phase 4 wire. Connected with tin plated copper bar; |
| Control power |
AC380V,3 phase 4 wire,connected with quick coonector/terminal; |
| Frequency | 50Hz/60Hz; |
| Loading accuracy | ≤ 3%; |
| 3 phase balance | Unbalance degree ≤ 3%; |
| Duty cycle | Continuous work |
| Insulation | F |
|
Operation mode |
1)Local panel switching operation 2)Remote PC operation(Mod bus TCP communication protocol,PLC system,operation software,support load data save and printing); |
|
Load steps |
1kW resolution;1kW+2kW+2kW+5kW+10kW+10kW+20kW+50kW+100kW×7; |
|
Resistor |
8020 Ni-Cr alloy finned resistor; |
|
Cooling system |
Forced air cooling;horizontal air intake and outlet;Axial fan,noise less than 80dB at 3m distance; |
| Enclosure | Q235 steel,powder coated. |
|
Protection |
High temperature,low air volume,phase sequence,short circuit,fan interlock,emergency stop; |
|
Digital meter |
Voltage,current,power,power factor and frequency; |
|
Load expansion |
Parallel expansion of multiple loads; |
|
Standard |
Meet international standard,ship standard,military standard and telecommunication standard |
|
Movement |
Fork lift hoes |
|
Color |
RAL 7035(industrial grey) or customized color |
| Dimensions | 1800mm*1250mm*1750mm (L*W*H) |
| Weight | 1150Kg |
|
Ambient temperature |
-20℃ to 50℃ |
|
Humidity |
Up to 100% |
|
Altitude |
Up to 2500m |
|
Atmospheric pressure |
86 to 106kPa |
