Rata 60kw Load Bank 60kw Load Bank Factory
Product Overview

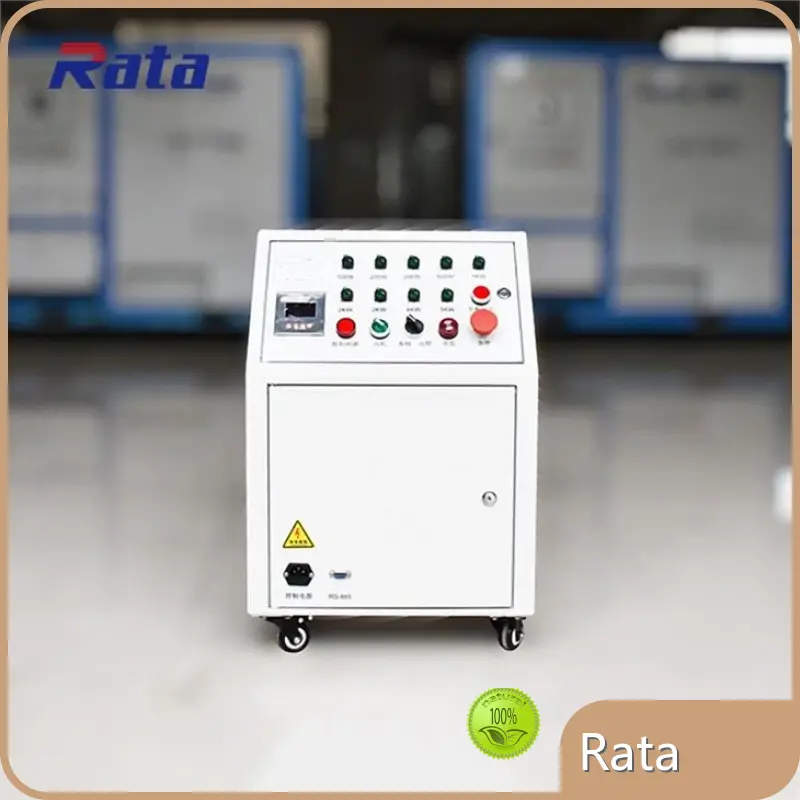

- This product is the Rata 60kw Load Bank, which is a generator set test load device customized according to customer requirements.
- The rated power is 15kW, rated voltage is AC 264V, rated current is 42A, and weight is about 55Kg.
Product Features
- Control system includes local manual control and remote PC control.
- Comes with operation and maintenance instructions, acceptance certificate, inspection report, electrical schematic, and PC software.
- Manufactured in strict accordance with quality management system standards and various national, military, and industry standards.
Product Value
- The product offers high performance and superior quality.
- Competitive advantage in quality and price.
Product Advantages
- Made by skilled professionals with years of experience in the industry.
- Company provides cost-effective products and services due to strict management system.
- Implement innovative techniques to create high-quality load banks.
Application Scenarios
- Ideal for testing generator sets and UPS systems with rated power of 15kW and rated voltage of AC 264V.
- Suitable for use in various industries requiring load testing of power frequency diesel generator sets.
Data sheet
|
Note: all parameters are for reference only and can be customized |
|
|
Product name |
15kW load bank |
|
Specifications |
R15kW/264VAC/50Hz |
| Rated current | 42A |
|
Formation |
One load bank(Including dry resistance load, electrical control components, measurement and control system) |
|
Load steps |
100W, 2*200W, 500W, 1kW, 2*2kW, 4kW, 5kW |
|
Load connection |
Copper bar |
|
Resistor |
Each resistance element: insulation impedance DC1000V/100MΩ above Withstand voltage ac 2000V for 5min Resistance error of each resistance tube:±3% |
|
Load control |
Local automatic control and remote PC control |
|
Loading accuracy |
≤ 3% |
|
Three phase balance |
Unbalance degree ≤ 3% |
|
Minimum step |
100W |
|
Working mode |
Continuous work |
|
Load protection |
Short circuit, overcurrent, high temperature, fan fault protection |
|
External power |
380V/50Hz |
|
Cooling mode |
Forced air cooling, horizontal air outlet |
|
Insulation class |
F |
|
Measurement accuracy |
The display accuracy is 0.5,the sampling accuracy is 0.2 |
|
Electrical parameter display |
Three phase voltage, three-phase current, frequency, power, etc |
|
Load expansion |
Parallel expansion of multiple load |
|
Standard |
Meet international standard, ship standard, military standard and telecommunication standard |
|
Transport |
The load bank has a load-bearing lifting hole, which meets the requirements of long-distance transportation |
|
Color |
Customized |
| Dimensions | 600mm*420mm*560mm (L*W*H) |
| Weight | 55Kg |
|
Ambient temperature |
-20℃ to 50℃ |
|
Humidity |
Up to 100% |
|
Altitude |
Up to 2500m |
|
Atmospheric pressure |
86 to 106kPa |
