Rata Ac Load Bank Manufacturer for Sale-1

Product Overview

1) Product overview

Product Features

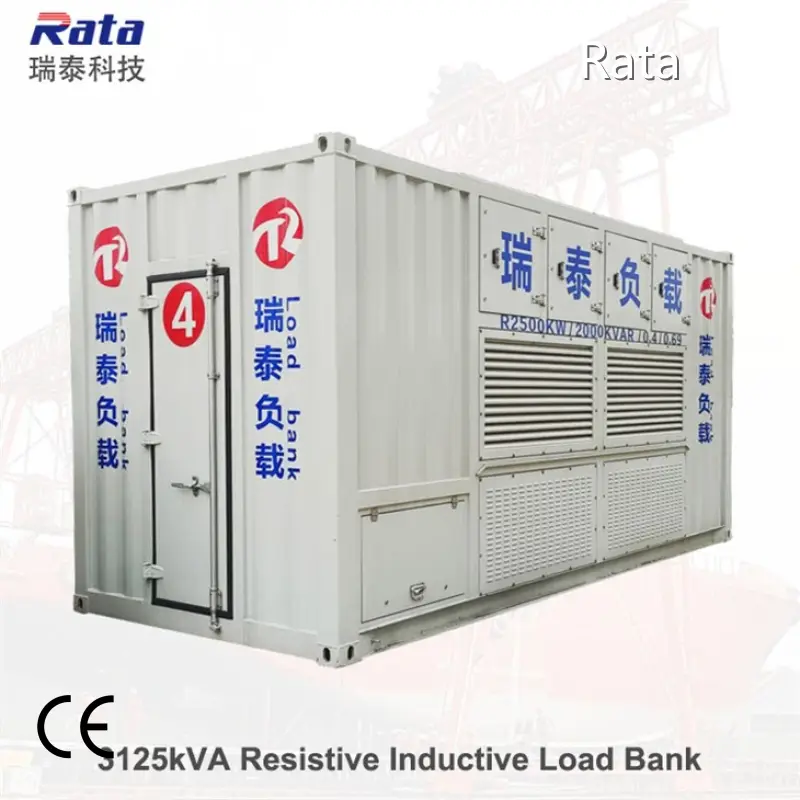

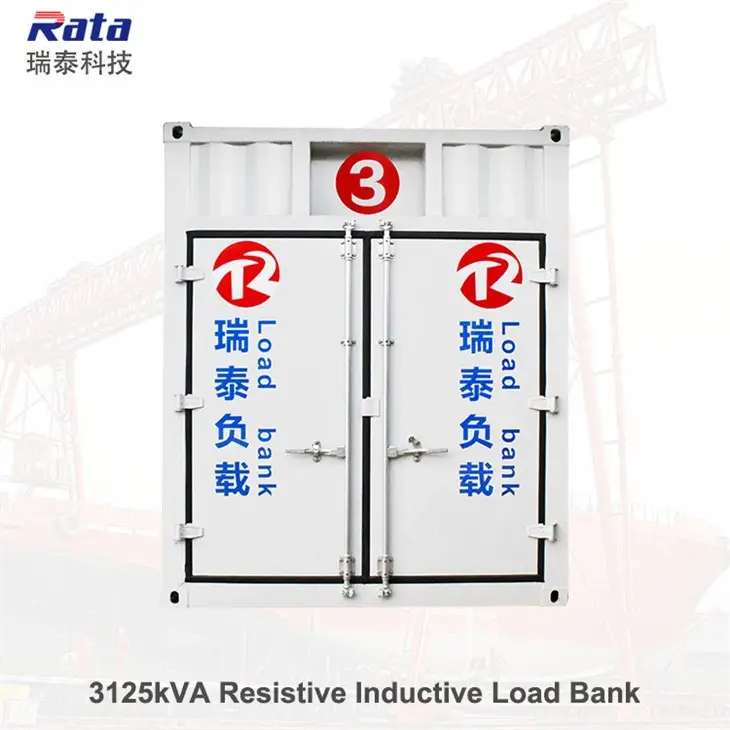

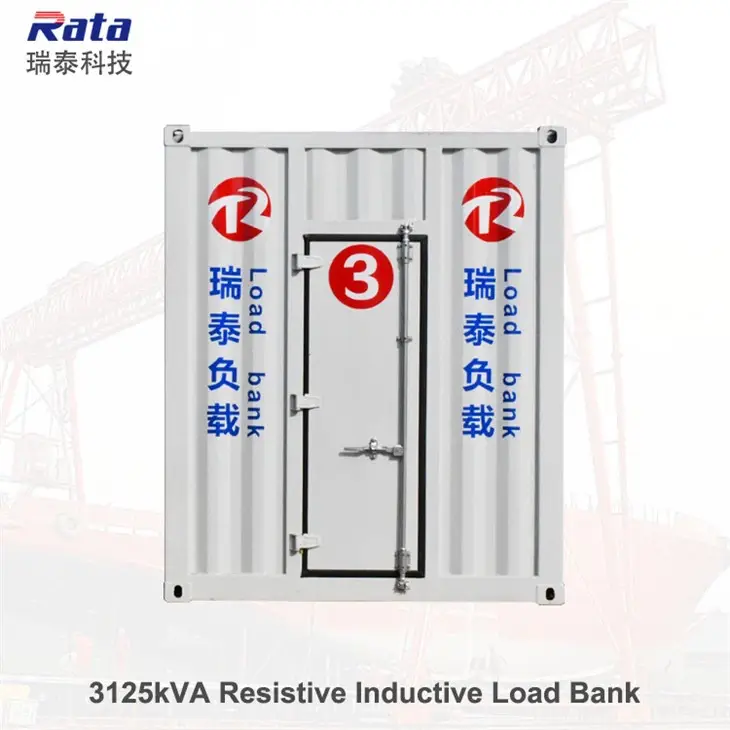

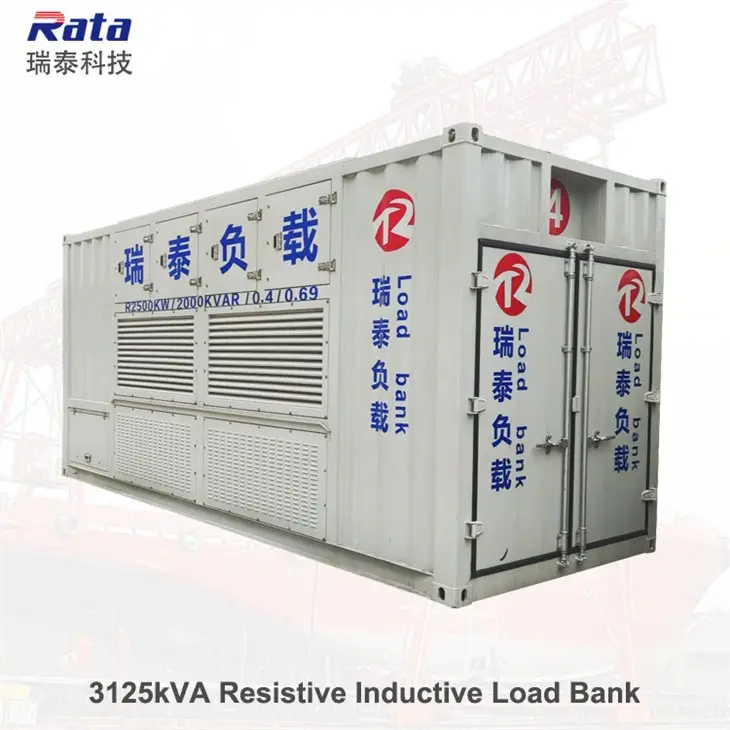

- Rata’s R2500kW / L2000kvar three-phase air-cooled resistive–inductive load bank (model RT3125kVALB) is a container-style power load test device designed for radar load test platforms and general power system testing. It supports 3-phase 4-wire systems at selectable nominal voltages (380V/400V/415V/440V/690V or custom), 50/60 Hz, and continuous duty operation. The assembly includes resistive banks, inductive banks and an integrated control system.

Product Value

2) Product features

Product Advantages

- Combined resistive and reactive (inductive) loading with fine step resolution (1 kW / 1 kvar resolution and predefined step groups up to 200 kW/200 kvar).

Application Scenarios

- Local panel and remote control via PLC and Modbus TCP with operation software, data saving and printing.

- Forced air cooling (axial fans, horizontal intake/vertical outlet) with noise < 80 dB at 3 m.

- Digital metering of voltage, current, power, power factor and frequency; multiple protective interlocks (high temperature, low airflow, phase sequence, short circuit, fan interlock, emergency stop).

- Parallel expansion capability to combine multiple units.

3) Product value

- Provides accurate, repeatable and visible load capability for commissioning, routine testing and long-duration verification of generators, power systems, radar platforms and related equipment.

- Reduces test preparation time and simplifies operation (local or automated remote control), increasing productivity and lowering operational risk.

- Built to meet ship, military and telecommunication standards, making it suitable for critical and regulated environments.

4) Product advantages

- High loading accuracy (≤ 3%) and three-phase balance/unbalance control (≤ 3%) for reliable test results.

- Robust industrial construction (Q235 steel enclosure, powder coated), standardized dimensions for container deployment and lift lugs for movement.

- Modular step design and parallel expansion permit precise loading profiles and scalable capacity.

- Comprehensive protection features and continuous-duty design support long-term, unattended operation.

- Manufactured with experienced processes and quality inspection for durability and stable performance.

5) Application scenarios

- Radar platform and military system load testing and verification.

- Generator set and prime mover commissioning and routine load testing.

- Telecom and shipboard power system testing (meets relevant standards).

- Data center, UPS, inverter and industrial plant load simulation and acceptance testing.

- Factory commissioning, maintenance, and any scenario requiring controlled resistive/reactive load application and accurate power measurements.
