Product Overview
Certainly! Here is a summarized description of the product “Rata AC Resistive Load Bank Manufacturer AC Resistive Load Bank” based on the detailed introduction you provided:
Product Features
**Product Overview**
Product Value

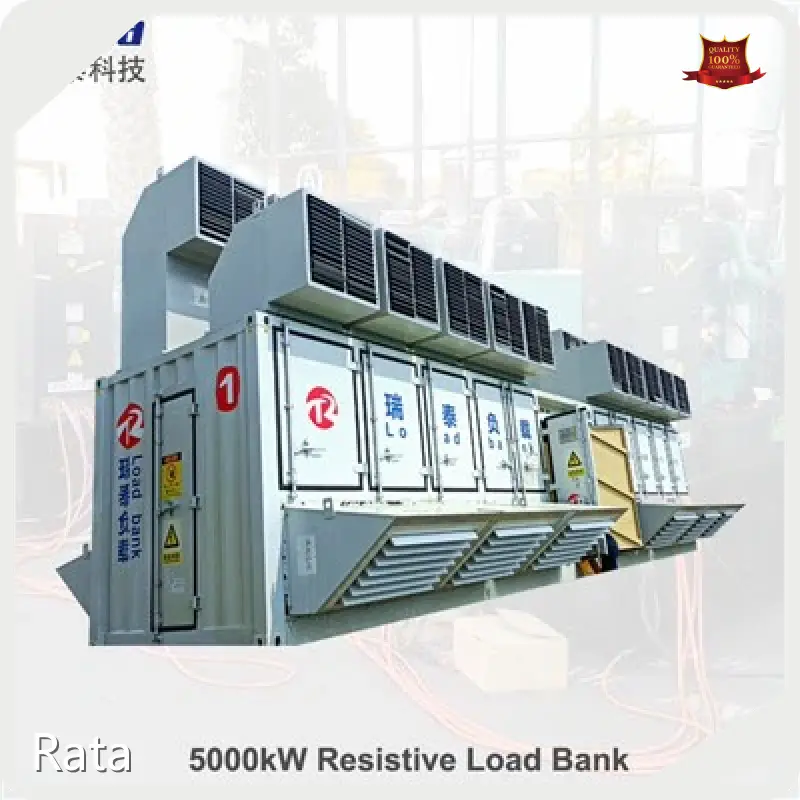

The product is a 5MW/11kV AC three-phase resistive load bank designed primarily for load testing in gas power plants and generators. It is housed in a container-type enclosure with bolt-installed air ducts for outdoor use, ensuring waterproof and efficient cooling. Load data can be remotely controlled, recorded, and printed through proprietary software.
Product Advantages
**Product Features**
Application Scenarios
- Rated power: 5000kW at 11kV with customizable voltage options.
- High loading accuracy (≤ 3%) and balanced three-phase operation (unbalance ≤ 3%).
- Forced air cooling system with axial fans and noise below 80dB at 3 meters.
- Digital metering of voltage, current, power, power factor, and frequency.
- Multiple load steps for fine resolution and flexible loading configurations.
- Various protection mechanisms including over-temperature, short circuit, fan interlock, and emergency stop.
- Supports both local panel and remote PC operation with Modbus TCP communication and data management.
**Product Value**
The load bank allows reliable simulation of electrical loads for power generation equipment, ensuring accurate performance testing, safe commissioning, and maintenance without risking the actual power system. Its robust design and continuous duty cycle improve operational reliability and reduce downtime, while remote control capability enhances convenience and data traceability.
**Product Advantages**
- Produced under strict quality standards with 24-hour production monitoring.
- High durability, usability, and environmental adaptability (temperature from -20℃ to 50℃, humidity up to 100%).
- Strong customer service, including onsite installation, commissioning, and training.
- Capability for parallel load expansion and custom voltage specifications.
- Meets international, ship, military, and telecommunication standards.
- Designed for easy transportation and installation with lift lugs and container structure.
**Application Scenarios**
The load bank is ideal for load testing and commissioning of gas power plants, power stations, and generators. It is suitable for outdoor installation on concrete platforms and can be customized to meet diverse industry requirements across power generation, telecommunications, and military sectors.
---
If you need a more concise or expanded version, feel free to ask!
Data Sheet
|
5MW Resistive Load Bank Data Sheet |
|
|
Product name |
5000kW resistive load bank; |
| Model number | RT5000kWLB; |
| Design | Container type with air duct for outdoor use; |
|
Rated power |
AC 11kV. Connected with tin plated copper bar. Other customized voltages are available; |
| Control power |
AC380V,3 phase 4 wire,connected with quick coonector/terminal; |
| Frequency | 50Hz/60Hz; |
| Loading accuracy | ≤ 3%; |
| 3 phase balance | Unbalance degree ≤ 3%; |
| Duty cycle | Continuous work |
| Insulation | F |
|
Operation mode |
1)Local panel switching operation 2)Remote PC operation(Mod bus TCP communication protocol,PLC system,operation software,support load data save and printing); |
|
Load steps |
100kW resolution;100kW+200kW+200kW+500kW+1000kW+1000kW+1000kW+1000kW |
|
Resistor |
8020 Ni-Cr alloy finned resistor; |
|
Cooling system |
Forced air cooling;horizontal air intake and vertical outlet;Axial fan,noise less than 80dB at 3m distance; |
| Enclosure | Q235 steel,powder coated. |
|
Protection |
High temperature,low air volume,phase sequence,short circuit,fan interlock,access control,temperature and humidity control,emergency stop; |
|
Digital meter |
Voltage,current,power,power factor and frequency; |
|
Load expansion |
Parallel expansion of multiple loads; |
|
Standard |
Meet international standard,ship standard,military standard and telecommunication standard |
|
Movement |
Lift lugs on the top |
|
Color |
RAL 7035(industrial grey) |
| Dimensions | 12000mm*2530mm*2600mm (L*W*H) |
| Weight | 18000Kg |
|
Ambient temperature |
-20℃ to 50℃ |
|
Humidity |
Up to 100% |
|
Altitude |
Up to 2500m |
|
Atmospheric pressure |
86 to 106kPa |
| Warranty period | 12 months start from commissioning at clients' ste |
| Packing | Wrapping film |
