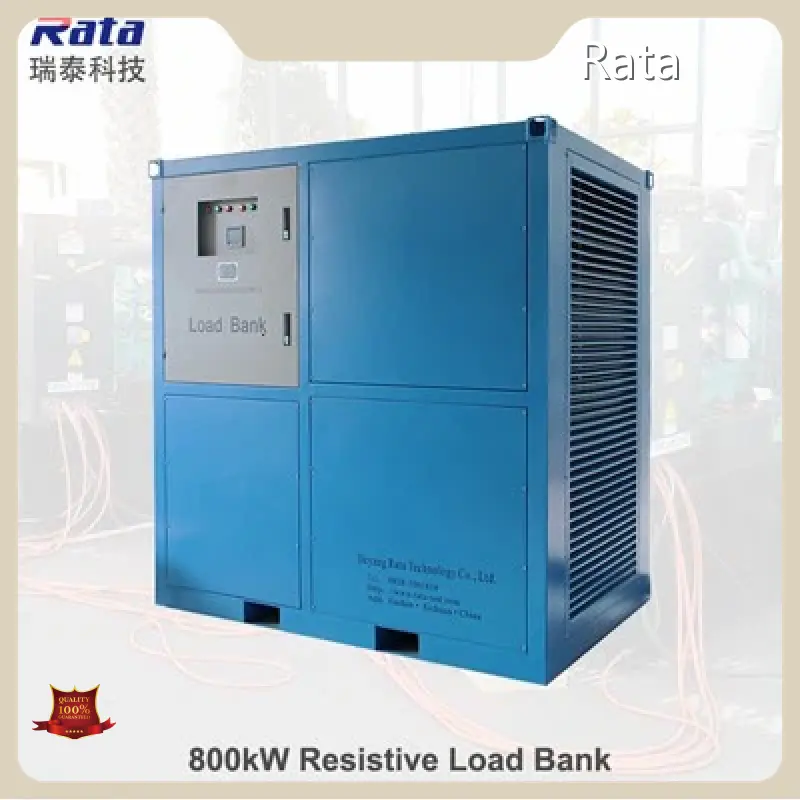

Rata Customized Ac 3 Phase Resistive Load Bank Customized Ac 3 Phase Resistive Load Bank with Good Price
Product Overview
The Rata Customized Ac 3 Phase Resistive Load Bank is designed for generator/UPS load testing. It can be used for indoor and outdoor applications with horizontal air discharge. It has a canopy design and comes with local panel switching and remote PC control options.
Product Features
The load bank has a rated power of AC 380V, 400V, 415V, 440V, 690V, and can be customized. It offers precise loading accuracy, 3-phase balance, continuous duty cycle, and various control and protection features.
Product Value
The product has gained attention for its economic benefits and high quality performance. It meets international standards and certifications, ensuring reliability and stability in operation.
Product Advantages
Advantages of the load bank include its high-quality construction with Q235 steel enclosure, forced air cooling system, digital meter for monitoring, and the ability for parallel expansion of multiple loads. It is suitable for various applications and environments.
Application Scenarios
The load bank is used for generator set testing, UPS power supply detection, power system debugging, verification of new energy power systems, ship power station testing, and research and experimentation in electrical fields. It offers a comprehensive solution for ensuring the performance and reliability of power systems.
data Sheet
|
Product name |
800kW resistive load bank; |
| Model number | RT800KWLB; |
| Design | Canopy design for outdoor/indoor application; |
|
Rated power |
AC 380V,400V,415V,440V,690V,customized. 3 phase 4 wire. Connected with tin plated copper bar; |
| Control power |
AC380V,3 phase 4 wire,connected with quick coonector/terminal; |
| Frequency | 50Hz/60Hz; |
| Loading accuracy | ≤ 3%; |
| 3 phase balance | Unbalance degree ≤ 3%; |
| Duty cycle | Continuous work |
| Insulation | F |
|
Operation mode |
1)Local panel switching operation 2)Remote PC operation(Mod bus TCP communication protocol,PLC system,operation software,support load data save and printing); |
|
Load steps |
1kW resolution;1kW+2kW+2kW+5kW+10kW+10kW+20kW+50kW+100kW×7; |
|
Resistor |
8020 Ni-Cr alloy finned resistor; |
|
Cooling system |
Forced air cooling;horizontal air intake and outlet;Axial fan,noise less than 80dB at 3m distance; |
| Enclosure | Q235 steel,powder coated. |
|
Protection |
High temperature,low air volume,phase sequence,short circuit,fan interlock,emergency stop; |
|
Digital meter |
Voltage,current,power,power factor and frequency; |
|
Load expansion |
Parallel expansion of multiple loads; |
|
Standard |
Meet international standard,ship standard,military standard and telecommunication standard |
|
Movement |
Fork lift hoes |
|
Color |
RAL 7035(industrial grey) or customized color |
| Dimensions | 1800mm*1250mm*1750mm (L*W*H) |
| Weight | 1150Kg |
|
Ambient temperature |
-20℃ to 50℃ |
|
Humidity |
Up to 100% |
|
Altitude |
Up to 2500m |
|
Atmospheric pressure |
86 to 106kPa |
