Rata Dummy Load Bank for Generator Dummy Load Bank for Generator with Good Price
Product Overview
1) Product overview
Product Features

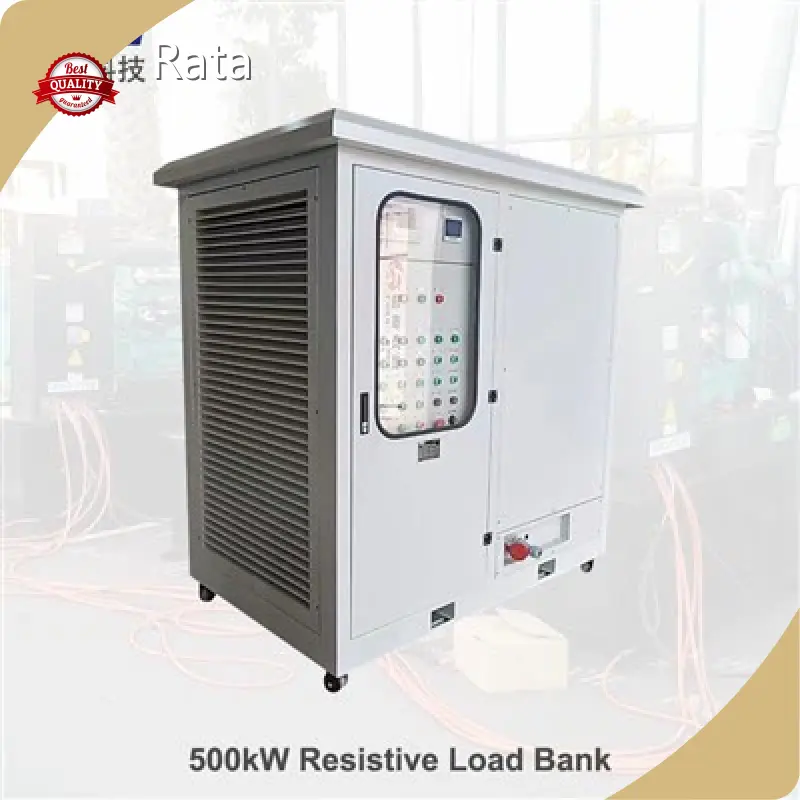

- Rata 500 kW AC resistive dummy load bank for generators, designed primarily for generator load testing. Outdoor IP54 enclosure, resistive-only 500 kW rating, 415 VAC 3‑phase 4‑wire connection, control supply 380 VAC. Physical size ~1805 × 1560 × 1600 mm and weight ~950 kg. Built with environmentally friendly raw materials.
Product Value
2) Product features
Product Advantages
- Dual control modes: local panel switching and remote PC control with load data saving and printing. Fine load resolution with 0–10 kW variable adjustment and discrete steps (10 kW, 10 kW, 20 kW, 50 kW, 100 kW ×4). 8020 Ni‑Cr finned resistors, forced air cooling with horizontal discharge, and comprehensive protections (high temperature, low air volume, short circuit, overcurrent, phase sequence, emergency stop).
Application Scenarios
3) Product value
- Provides a reliable, accurate and repeatable means to commission, test and verify generator performance and capacity. Data logging and printing support traceable test records for maintenance, compliance and warranty purposes. Marketed at a competitive price, offering cost-effective testing without compromising durability.
4) Product advantages
- Rugged outdoor design (IP54) for field use; robust resistor construction and forced-air cooling for sustained loads; multiple safety protections for operator and equipment protection; flexible local/remote operation and data capture for convenience; produced by an experienced manufacturer (Rata) with 11 years’ load bank expertise and export track record to ~21 countries.
5) Application scenarios
- Routine and acceptance testing of standby and prime generators; commissioning and maintenance at power plants, industrial facilities, data centers, hospitals and construction sites; use by rental/test houses and OEMs for factory testing; any industrial environment requiring controlled, repeatable generator loading and performance verification.
Data Sheet
|
Product name |
500kW resistive load bank; |
| Model number | RT500kWLB; |
| Design | Outdoor design with IP54 rating |
|
Rated power |
AC415V,3 phase 4 wire. Connected with tin plated copper bar; |
| Control power |
AC380V,3 phase 4 wire,connected with quick coonector/terminal; |
| Frequency | 50Hz/60Hz; |
| Loading accuracy | ≤ 3%; |
| 3 phase balance | Unbalance degree ≤ 3%; |
| Duty cycle | Continuous work |
| Insulation | F |
|
Operation mode |
1)Local panel switching operation 2)Remote PC operation(Mod bus TCP communication protocol,PLC system,operation software,support load data save and printing); |
|
Resistive load steps |
0~10kW variable adjustable,10kW,10kW,20kW,50kW,100kW×4 |
|
Resistor |
8020 Ni-Cr alloy finned resistor; |
|
Cooling system |
Forced air cooling;horizontal air intake and outlet;Axial fan,noise less than 80dB at 3m distance; |
| Enclosure | Q235 steel,powder coated. |
|
Protection |
High temperature,low air volume,phase sequence,short circuit,fan interlock,emergency stop; |
|
Digital meter |
Voltage,current,power,power factor and frequency; |
|
Load expansion |
Parallel expansion of multiple loads; |
|
Standard |
Meet international standard,ship standard,military standard and telecommunication standard; |
|
Movement |
Forklift holes; |
|
Color |
RAL 7035(industrial grey); |
| Dimensions | 1805×1560×1600mm |
| Weight | 950Kg |
|
Ambient temperature |
-20℃ to 50℃ |
|
Humidity |
Up to 100% |
|
Altitude |
Up to 2500m |
|
Atmospheric pressure |
86 to 106kPa |
