Rata Dummy Load Bank Supplier
Product Overview

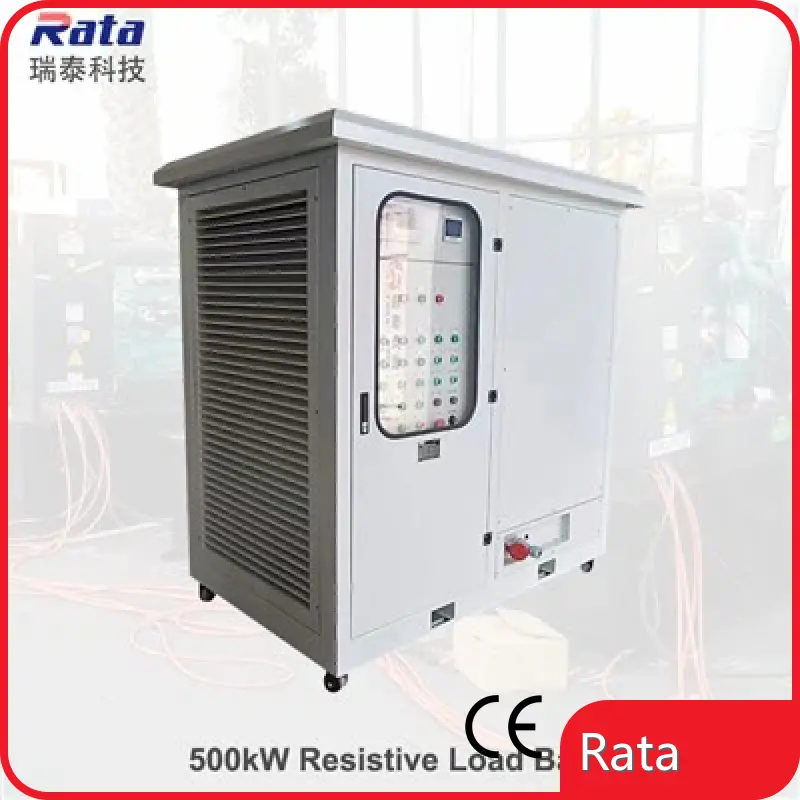

- 500 kW AC resistive dummy load bank for generator load testing and commissioning.
- Designed for outdoor use (IP54), three-phase 415 VAC, 4-wire connection; overall size ~1805 × 1560 × 1600 mm and weight ~950 kg.
- Dual control modes: local panel switching and remote PC control, with capability to save and print load test data.
Product Features
- Rated power: 500 kW (resistive only). Control voltage: 380 VAC, 3-phase, 4-wire.
- Flexible load stepping: continuously variable 0–10 kW plus discrete steps (e.g., 10 kW, 20 kW, 50 kW and multiple 100 kW steps).
- Resistive elements: 80/20 Ni–Cr alloy finned resistors for stable dissipation.
- Cooling: forced air cooling with horizontal air discharge.
- Protections: high temperature, low air volume, short circuit, over-current, phase sequence, and emergency stop.
Product Value
- Provides accurate, repeatable loading for generator capacity tests, performance verification and preventive maintenance.
- Enables on-site and remote testing with data logging/printing, improving test traceability and diagnostics.
- Outdoor-rated design and robust resistors allow reliable use in varied climates and industrial environments, reducing downtime and commissioning time.
Product Advantages
- Built by an experienced manufacturer (Rata) with 11 years in load bank design and production and exports to many countries.
- High-quality materials sourced from reliable suppliers and strict quality control to minimize defects.
- Fast delivery and established sales/service network, supported by R&D and continuous quality improvement.
- Comprehensive protection features and multiple control options for safe, flexible operation.
Application Scenarios
- Generator testing and commissioning (power plants, backup generators, rental gensets).
- Routine maintenance and load acceptance testing for industrial facilities, data centers, hospitals and commercial buildings.
- Factory testing of alternators, UPS systems and power electronics.
- Marine/shipboard testing and on-site temporary load applications where outdoor-capable equipment is needed.
Data Sheet
|
Product name |
500kW resistive load bank; |
| Model number | RT500kWLB; |
| Design | Outdoor design with IP54 rating |
|
Rated power |
AC415V,3 phase 4 wire. Connected with tin plated copper bar; |
| Control power |
AC380V,3 phase 4 wire,connected with quick coonector/terminal; |
| Frequency | 50Hz/60Hz; |
| Loading accuracy | ≤ 3%; |
| 3 phase balance | Unbalance degree ≤ 3%; |
| Duty cycle | Continuous work |
| Insulation | F |
|
Operation mode |
1)Local panel switching operation 2)Remote PC operation(Mod bus TCP communication protocol,PLC system,operation software,support load data save and printing); |
|
Resistive load steps |
0~10kW variable adjustable,10kW,10kW,20kW,50kW,100kW×4 |
|
Resistor |
8020 Ni-Cr alloy finned resistor; |
|
Cooling system |
Forced air cooling;horizontal air intake and outlet;Axial fan,noise less than 80dB at 3m distance; |
| Enclosure | Q235 steel,powder coated. |
|
Protection |
High temperature,low air volume,phase sequence,short circuit,fan interlock,emergency stop; |
|
Digital meter |
Voltage,current,power,power factor and frequency; |
|
Load expansion |
Parallel expansion of multiple loads; |
|
Standard |
Meet international standard,ship standard,military standard and telecommunication standard; |
|
Movement |
Forklift holes; |
|
Color |
RAL 7035(industrial grey); |
| Dimensions | 1805×1560×1600mm |
| Weight | 950Kg |
|
Ambient temperature |
-20℃ to 50℃ |
|
Humidity |
Up to 100% |
|
Altitude |
Up to 2500m |
|
Atmospheric pressure |
86 to 106kPa |
