Rata Inductive Load Bank Supplier for Sale
Product Overview
Certainly! Here is a summary of the “Rata Inductive Load Bank Supplier for Sale” product based on the detailed introduction:
Product Features
**Product Overview**
Product Value

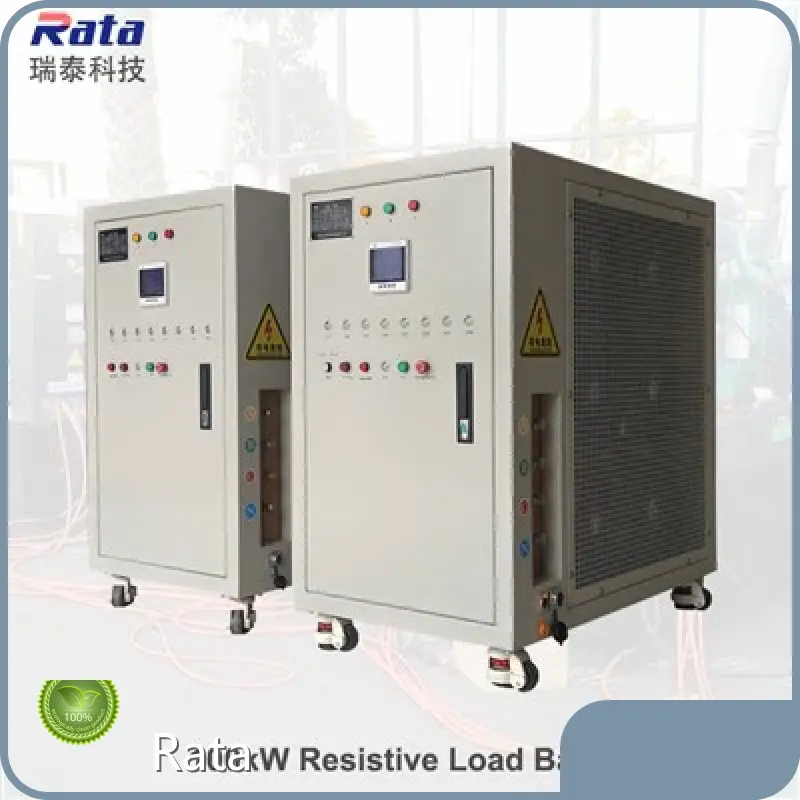

The Rata 100kW load bank is an indoor resistive load bank designed for testing and simulating electrical loads. It features local panel and remote PC control with Rata’s proprietary operation software (in English). The product is mobile with universal wheels and uses copper bars and quick connectors for power cable connections.
Product Advantages
**Product Features**
Application Scenarios
- Rated power capacity of 100kW (resistive only)
- Supports multiple input voltages (380V, 400V, 415V, or customized)
- Control voltage: 230VAC, 1-phase, 2-wire
- Dual control modes: local panel switching and remote PC control with advanced software supporting curve plotting, data saving, and printing
- Multiple load steps for flexible load application (1kW to 50kW)
- Forced air cooling with horizontal air intake/outlet
- High-quality 8020 Ni-Cr alloy finned resistors
- Comprehensive protections: short circuit, overcurrent, high temperature, low air volume, fan fault, emergency stop
- Compact size (700mm x 500mm x 960mm) and moderate weight (105kg)
- Packaged securely in wooden case and pallet for export
**Product Value**
The load bank offers reliable and precise simulation of electrical loads, essential for testing generators, transformers, UPS systems, and battery dischargers. Its advanced control and monitoring capabilities allow for efficient testing and data management. The product’s portability and robust protection features enhance usability and safety, adding value in various industrial and technical scenarios.
**Product Advantages**
- Developed with meticulous attention to detail and designed by experienced professionals
- High quality and excellent performance verified by ISO9001:2012 certification and multiple patents
- User-friendly control software with both local and remote operation options
- Strong after-sales support with prompt problem resolution
- Proven international reputation with exports to numerous countries and regions worldwide
- Durable and well-packed for safe transportation and long service life
**Application Scenarios**
Rata’s inductive load bank is widely used in large shipyards, power plants, and industrial facilities for testing generators under load, transformer testing, UPS power supply tests, and storage battery discharge points. It also supports system solutions in ship shore power, data centers, new energy sectors, and grid adaptability experiments, making it versatile for a broad range of electrical testing and maintenance applications.
Data Sheet
|
100kW Resistive Load Bank Data Sheet |
|
|
Product name |
100kW resistive load bank; |
| Model number | RT100kWLB; |
| Design | Container type with air duct for outdoor use; |
|
Rated power |
Customized voltages are available; |
| Control power |
AC230V,1 phase 2 wire,connected with quick coonector/terminal; |
| Frequency | 50Hz/60Hz; |
| Loading accuracy | ≤ 3%; |
| 3 phase balance | Unbalance degree ≤ 3%; |
| Duty cycle | Continuous work |
| Insulation | F |
|
Operation mode |
1)Local panel switching operation 2)Remote PC operation(Mod bus TCP communication protocol,PLC system,operation software,support load data save and printing); |
|
Load steps |
1kW resolution;1kW+2kW+2kW+5kW+10kW+10kW+20kW+50kW |
|
Resistor |
8020 Ni-Cr alloy finned resistor; |
|
Cooling system |
Forced air cooling;horizontal air intake and outlet; |
| Enclosure | Q235 steel,powder coated. |
|
Protection |
High temperature,low air volume,emergency stop; |
|
Digital meter |
Voltage,current,power,power factor and frequency; |
|
Load expansion |
Parallel expansion of multiple loads; |
|
Standard |
Meet international standard,ship standard,military standard and telecommunication standard |
|
Movement |
Universal wheels |
|
Color |
RAL 7035(industrial grey) |
| Dimensions | 700mm*500mm*960mm (L*W*H) |
| Weight | 105Kg |
|
Ambient temperature |
-20℃ to 50℃ |
|
Humidity |
Up to 100% |
|
Altitude |
Up to 2500m |
|
Atmospheric pressure |
86 to 106kPa |
| Warranty period | 12 months start from commissioning at clients' ste |
| Packing | Wooden case + wooden pallet |
