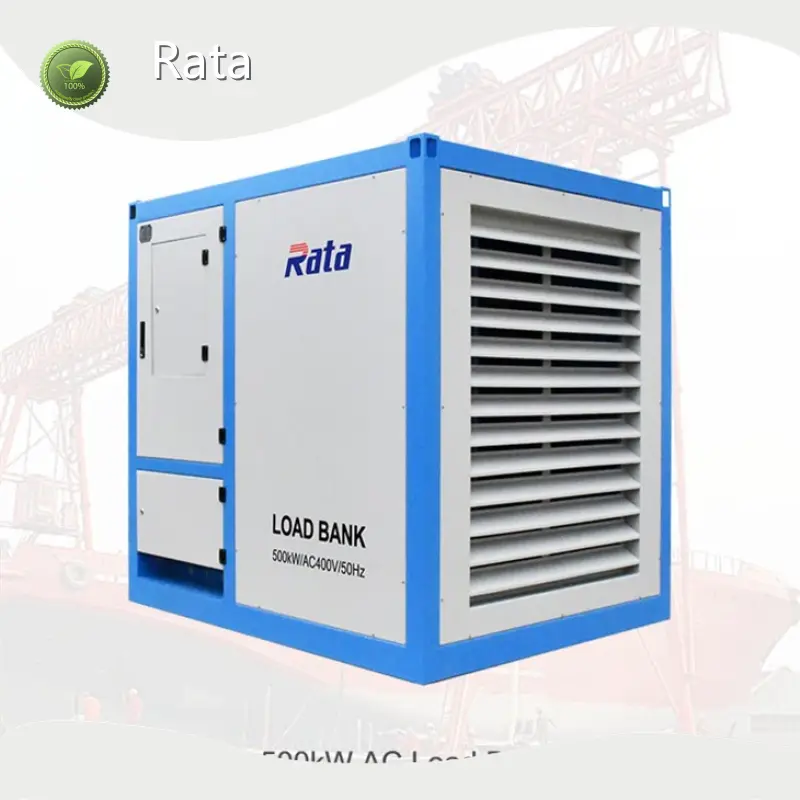

Rata Load Bank 5kw Load Bank for Sale
Product Overview
The Rata Load Bank 5kw Load Bank for Sale is a three phase load bank that can be combined by resistive, inductive, and capacitive loads. It is designed to accurately simulate power loads, detect anti-islanding protection function of grid-connected inverters, and is suitable for production workshop, laboratory, installation, commissioning, and research.
Product Features
The load bank offers local manual control, local automatic control, or remote automatic control options, has a loading accuracy of ≤ 3%, and provides protection against short circuit, overcurrent, high temperature, and fan faults. It also meets international standards and can be customized based on customer needs.
Product Value
The load bank is quality assured with strict testing before production, ISO certification, and is recognized as a national high-tech enterprise. It is economically priced and has received 16 utility model patent certificates and 8 computer software copyright registration certificates.
Product Advantages
Rata Technology Co., LTD is a competitive manufacturer in the 5kw load bank industry, has a good reputation for customer service, and has experience in shipping. The company has obtained utility model patent certificates and computer software copyright registration certificates.
Application Scenarios
The 5kw load bank can be applied in various fields and industries, such as shipyards, power plants, generator manufacturers, and load leasing enterprises. It is customizable, has good after-sales service, and is suitable for long-distance transportation with safe packaging.
Data Sheet
|
Note: all parameters are for reference only and can be customized |
|
|
Product name |
three phase load bank |
|
Specifications |
R500kW/400V/50Hz |
|
Formation |
One load bank(Including dry resistance load, electrical control components, measurement and control system) |
|
Load step |
According to customer needs |
|
Load connection |
Copper bar |
|
Resistor |
Each resistance element: insulation impedance DC1000V/100MΩ above Withstand voltage ac 2000v for 5min Resistance error of each resistance tube:±3% |
|
Load control |
Local manual control, local automatic control or remote automatic control can be selected |
|
Loading accuracy |
Less than or equal to 3% |
|
Three phase balance |
Unbalance degree less than or equal to 3% |
|
Load step |
1kW resolution, 1kW+2kW+2kW+5kW+10kW+10kW+20kW+50kW+100kW×4 |
|
Working mode |
Continuous work |
|
Load protection |
Short circuit, overcurrent, high temperature, fan fault protection |
|
External power |
TN-C,380V/50Hz |
|
Cooling mode |
Forced air cooling, side air outlet or top air outlet |
|
Insulation class |
F |
|
Measurement accuracy |
The display accuracy is 0.5,the sampling accuracy is 0.2 |
|
Electrical parameter display |
Three phase voltage, three-phase current, frequency, power, etc |
|
Load expansion |
Parallel expansion of multiple load containers |
|
Standard |
Meet international standard, ship standard, military standard and telecommunication standard |
|
Transport |
The load bank has a load-bearing lifting hole, which meets the requirements of long-distance transportation |
|
Color |
Customized |
|
Ambient temperature |
-20℃ to 50℃ |
|
Humidity |
Up to 100% |
|
Altitude |
Up to 2500m |
|
Atmospheric pressure |
86 to 106kPa |
