Rata Load Bank by Rata-17
Product Overview
1) Product overview
Product Features

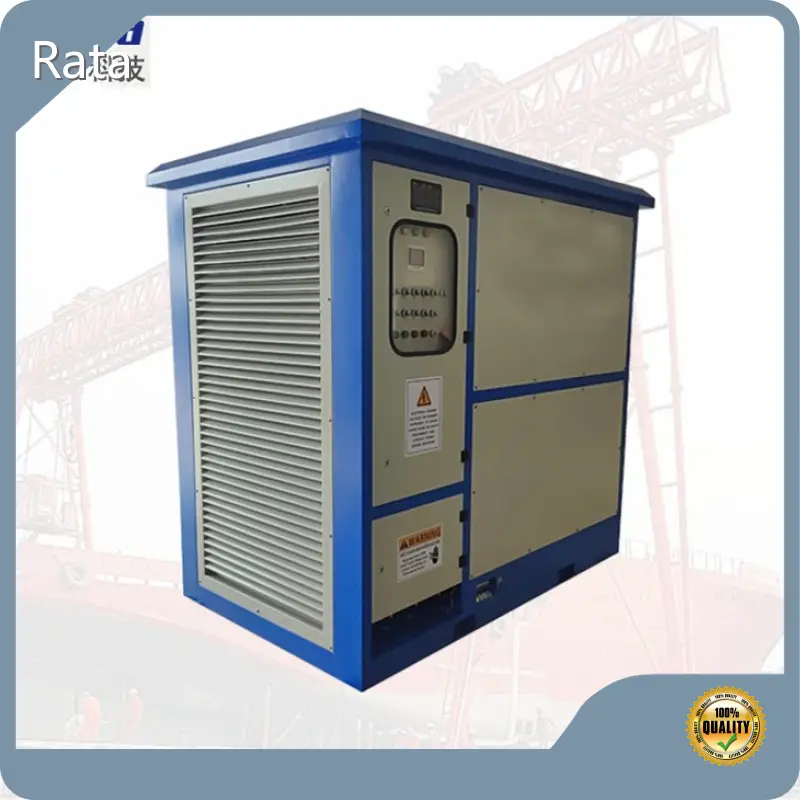

- The Rata Load Bank (1250 kW resistive) from Deyang Rata Technology Co., LTD is a purpose-built, outdoor-capable load bank for AC 3‑phase generator testing and commissioning. It is manufactured with quality control and export packaging and is available with configurable options (voltage/frequency, indoor/outdoor, local or remote control).
Product Value
2) Product features
Product Advantages
- Rated power: 1250 kW (resistive only) at 415 VAC, 3-phase 4-wire.
Application Scenarios
- Control voltage: 380 VAC, 3-phase 4-wire; standard local panel switching control (remote PC control available on request).
- Resistive elements: 8020 Ni‑Cr alloy finned resistors.
- Cooling: axial fan, horizontal air discharge; noise
- Mechanical/protection: outdoor canopy design, IP54, size 2220 × 1420 × 2100 mm, weight 1850 kg.
- Connections: load cables to tin‑plated copper bar; control power to terminal.
- Certifications: CE, ISO9001:2015, ISO14001:2015, ISO45001:2018.
- Packing and export-ready (wooden case/pallet; shipped from Chinese ports such as Shanghai).
3) Product value
- Provides a high‑capacity, reliable means to apply controlled resistive loads for generator commissioning, acceptance testing and maintenance.
- Helps verify generator performance, stability and protection systems under realistic load conditions, reducing risk of in-service failures.
- Customizable electrical and control options let customers specify system configuration that matches site requirements.
- Backed by factory QC and international certifications for consistent quality and safer operations.
4) Product advantages
- High power rating (1250 kW) for large generator sets or combined testing needs.
- Durable, proven resistor technology (Ni‑Cr finned elements) and robust outdoor IP54 canopy for field use.
- Low acoustic emission for its size (below 85 dB at 3 m) and effective forced‑air cooling.
- User‑friendly connections (tin‑plated copper bar) and flexible control modes (local panel standard, remote PC optional).
- Manufactured with systematic QC and certified management systems, supporting export and international use.
5) Application scenarios
- Generator load testing and acceptance commissioning for standby and prime power sets.
- Routine maintenance load bank testing for power plants, rental fleets and industrial generators.
- Commissioning and testing of UPS, switchgear, and protection systems in data centers, hospitals, telecom sites and commercial facilities.
- Factory or on‑site performance verification in manufacturing, mining, and large commercial/utility projects.
