Rata Load Bank by Rata-19
Product Overview
1) Product overview
Product Features

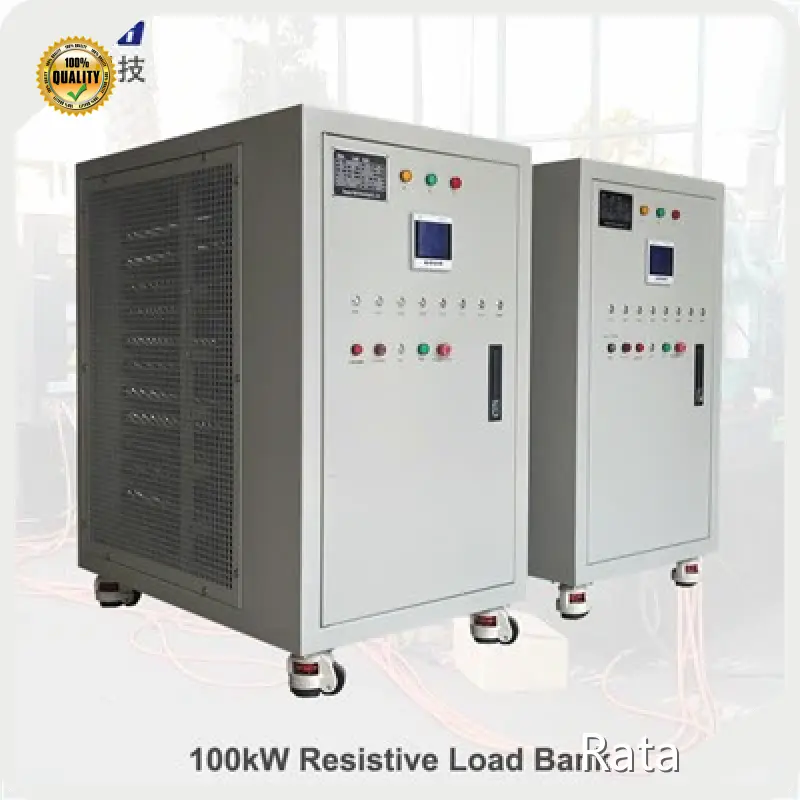

- Rata Load Bank (R100kW/400V/50Hz) is a low‑voltage, pure‑resistive portable load bank (100 kW, PF = 1.0) customized by Rata. Key ratings: 145 A, step resolution and grouping of 1 kW, 2×2 kW, 5 kW and 9×10 kW. Weight ~180 kg. Control panel includes phase‑sequence indicator, electrical instruments, low‑air (cooling) alarm and fan start switch.
Product Value
2) Product features
Product Advantages
- Pure resistive loading with power factor 1.0 for accurate real‑power tests.
Application Scenarios
- Fine and flexible step settings (1 kW, 2×2 kW, 5 kW, 9×10 kW) for precise load control.
- Dual control modes: local manual operation and remote PC control (includes PC software).
- Built‑in monitoring and protection (phase sequence, instruments, low air alarm, fan control).
- Supplied with operation & maintenance manuals, acceptance certificate, inspection report, electrical schematics; 2‑year warranty.
- Designed and manufactured to comply with relevant national, military and industry standards.
3) Product value
- Enables reliable, repeatable, and precise real‑power loading for generator and system verification, commissioning and maintenance.
- Fine step resolution minimizes test time and improves measurement accuracy.
- Turnkey supply (hardware, documentation, software) reduces deployment effort and ensures traceable acceptance testing.
- Robust, standards‑based design improves safety, compliance and long‑term asset reliability.
4) Product advantages
- Uses imported materials and professional manufacturing practices for higher quality.
- Customer‑driven design and ability to customize (example: bespoke 100 kW unit built in March 2022).
- Backed by experienced engineering team, professional service and a formal quality management system.
- Compact/transportable form factor for on‑site use and a comprehensive accessories/documentation package.
5) Application scenarios
- Load testing, commissioning and routine maintenance of diesel generator sets, alternators and marine gensets.
- Factory acceptance testing and performance verification of three‑phase synchronous machines and power systems.
- Industrial and military on‑site load simulation and burn‑in procedures.
- Any scenario requiring controlled resistive real‑power loading to validate capacity, stability and protection of electrical generation or distribution equipment.
Data sheet
|
Note: all parameters are for reference only and can be customized |
|
|
Product name |
100kW load bank |
|
Specifications |
R100kW/400V/50Hz |
|
Formation |
One load bank(Including dry resistance load, electrical control components, measurement and control system) |
|
Load steps |
1kW, 2*2kW, 5kW, 2*10kW, 20kW, 50kW |
|
Load connection |
Copper bar |
|
Resistor |
Each resistance element: insulation impedance DC1000V/100MΩ above Withstand voltage AC 2000V for 5min Resistance error of each resistance tube: ±3% |
|
Load control |
Local manual control and remote PC control |
|
Loading accuracy |
≤ 3% |
|
Three phase balance |
Unbalance degree ≤ 3% |
|
Minimum step |
1kW |
|
Working mode |
Continuous work |
|
Load protection |
Short circuit, overcurrent, high temperature, fan fault protection |
|
External power |
380V/50Hz |
|
Cooling mode |
Forced air cooling, horizontal air outlet |
|
Insulation class |
F |
|
Measurement accuracy |
The display accuracy is 0.5,the sampling accuracy is 0.2 |
|
Electrical parameter display |
Three phase voltage, three-phase current, frequency, power, etc |
|
Load expansion |
Parallel expansion of multiple loads |
|
Standard |
Meet international standard, ship standard, military standard and telecommunication standard |
|
Transport |
The load bank has a load-bearing lifting hole, which meets the requirements of long-distance transportation |
|
Color |
Customized |
| Dimensions | 900mm*850mm*700mm (L*W*H) |
| Weight | 120Kg |
|
Ambient temperature |
-20℃ to 50℃ |
|
Humidity |
Up to 100% |
|
Altitude |
Up to 2500m |
|
Atmospheric pressure |
86 to 106kPa |
More specifications
|
Note: all parameters are for reference only and can be customized |
||||
|
Power(kW) |
Voltage(kV) |
Frequency(Hz) |
Size(mm,L*W*H) |
Weight(Kg) |
|
100 |
0.4 |
50/60 |
1100*900*1000 |
320 |
|
200 |
0.4 |
50/60 |
1350*1100*1100 |
450 |
|
300 |
0.4 |
50/60 |
1500*1200*1200 |
650 |
|
400 |
0.4 |
50/60 |
1700*1500*1500 |
830 |
|
500 |
0.4 |
50/60 |
1700*1500*1500 |
950 |
|
600 |
0.4 |
50/60 |
1800*1600*1600 |
1150 |
|
800 |
0.4 |
50/60 |
1900*1800*1700 |
1900 |
|
1000 |
0.4 |
50/60 |
2300*1700*2100 |
2100 |
|
1200 |
0.4 |
50/60 |
2500*1800*2200 |
2300 |
|
1500 |
0.4 |
50/60 |
2500*1860*2300 |
2600 |
|
1800 |
0.4 |
50/60 |
3000*2000*2300 |
4000 |
|
2000 |
0.4 |
50/60 |
3000*2000*2300 |
5000 |
|
2500 |
0.4 |
50/60 |
4000*2438*2500 |
6000 |
|
3000 |
0.4 |
50/60 |
6000*2438*2500 |
7000 |
