Rata Load Bank by Rata-24
Product Overview
1) Product overview
Product Features

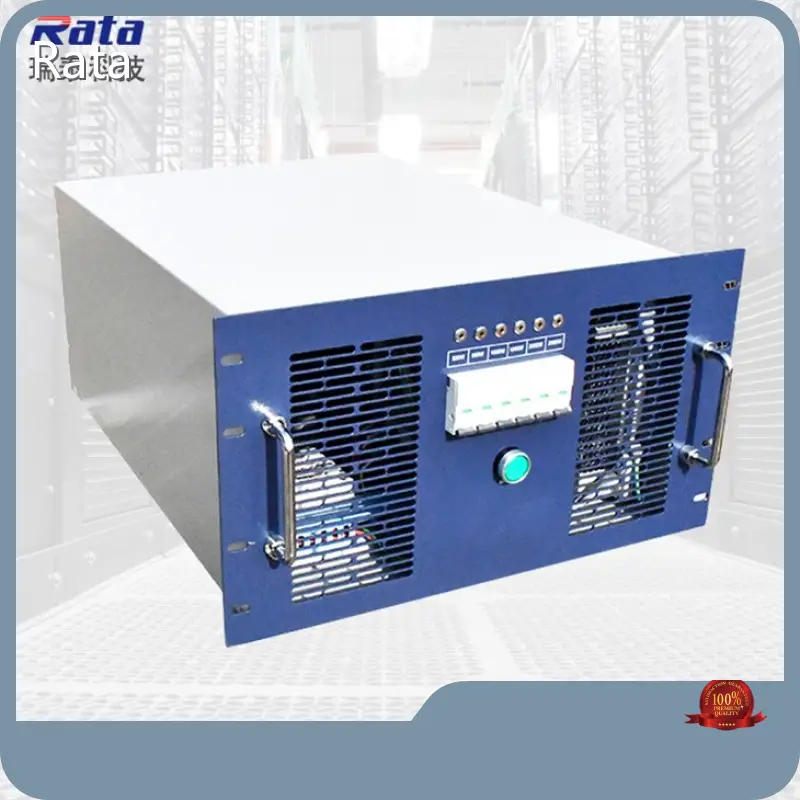

- The Rata Load Bank (model RTLB06-RM) is a 6 kW rack-mounted resistive load bank designed for 19-inch data center racks (483 mm x 550 mm, 8U, ≈35 kg). It operates on single-phase 230 Vac, 50–60 Hz and is built for lean-production quality control by Deyang Rata Technology.
Product Value
2) Product features
Product Advantages
- Six 1 kW load steps (customizable) with ±5% tolerance, finned resistors, C20 load connections (3 sockets).
Application Scenarios
- Forced-air horizontal cooling with four fans (total ~1640 CFM) and maximum inlet–outlet ΔT up to 40°C (typical ~10°C).
- Protections: thermal emergency cut-out, high-temperature alarm, insulation test voltage 500 Vac, control chamber IP23.
- Manual control via Schneider circuit breaker; optional MCB control and digital meters (voltage/current/power) available.
- Dimensions: 19" rack compatible, 8U height; 3-year warranty; 24/7 technical support and documentation (factory report, wiring/structure diagrams).
3) Product value
- Provides accurate, controllable, and repeatable electrical loading for data center commissioning, maintenance and performance validation.
- Enables realistic server heat-dissipation simulation to validate cooling strategies and HVAC capacity.
- Compact rack form factor minimizes footprint and integrates directly into existing racks for convenient, on-site testing.
- Scalable solution: multiple units can be paralleled to meet larger load requirements.
4) Product advantages
- Rack-optimized design (19" / 8U) for in-rack deployment without airflow disruption.
- High total airflow and horizontal ventilation compatible with typical data center air management.
- Robust safety and insulation specs plus thermal protections for reliable 24/7 operation.
- Flexible load stepping and connector options for precise simulation of mixed server loads.
- Strong after-sales support (3-year warranty, round‑the‑clock technical assistance, documentation and remote meeting support).
5) Application scenarios
- Data center commissioning and acceptance testing.
- Server cluster and rack-level load and thermal testing during expansion or renovation.
- HVAC and CRAC system verification using realistic heat loads.
- Continuous reliability testing, UPS/generator transitional and capacity tests (when used as resistive load).
- Parallel multi-unit setups to simulate large-scale server farm loads.
