Rata Load Bank Generator Load Bank Wholesale - Rata
Product Overview
Sure! Here is a summary of the product “Rata Load Bank Generator Load Bank Wholesale - Rata” according to the specified points:
Product Features
**Product Overview**
Product Value

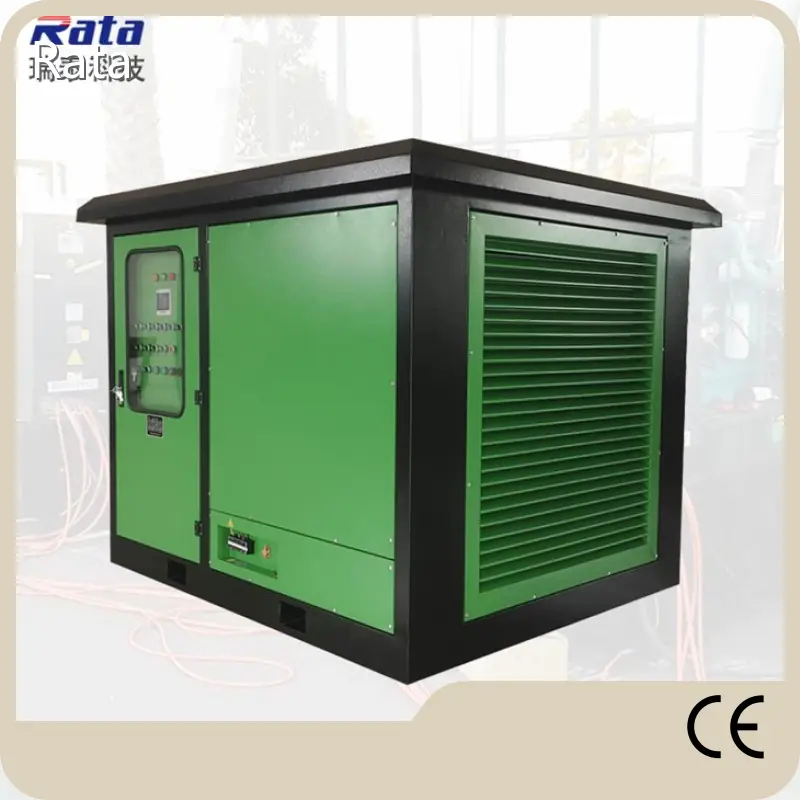

The Rata R400kW/400V/50Hz load bank is a low-voltage pure resistive load bank designed and customized by Deyang Rata Technology Co., Ltd. It is primarily used for on-board load testing of diesel generators. The product features a robust outdoor design with an IP54-rated canopy, weighs about 550 kg, and was released in March 2023.
Product Advantages
**Product Features**
Application Scenarios
- Rated power capacity: 400 kW resistive load only
- Rated voltage: 400VAC, 3-phase 4-wire system
- Control: Local panel and remote PC control with Siemens PLC and RJ45 interface
- Load step settings: Multiple steps ranging from 1kW to 100kW for precise load adjustments
- Cooling: Forced air cooling with horizontal air discharge
- Control panel includes indicators for phase sequence, electrical parameters, alarms (high temperature, low air volume), load switching, and emergency stop
- Durable 8020 Ni-Cr alloy finned resistors
- Movement aided by forklift holes for easy handling
**Product Value**
Rata load bank provides a reliable, efficient, and precise solution for load testing diesel generators, helping to ensure their performance and safety under operational conditions. It offers both local and remote control capabilities, enhancing operational flexibility and data monitoring.
**Product Advantages**
- High-quality sustainable materials and finishes ensure durability and performance
- Certified by CE, ISO9001, ISO14001, and ISO45001 standards, guaranteeing quality and safety
- Developed by a professional technical team with 18 patented technologies in load bank design
- Strong reputation with proven performance, durability, and practicality in the industry
- Customized and well-supported by the manufacturer with 24/7 service availability
**Application Scenarios**
The Rata load bank is widely used in industrial settings to test diesel generators and other power sources. It is suitable for on-board testing and maintenance applications, power system commissioning, and performance validation in industries requiring reliable power load testing solutions. It’s designed to meet both domestic and export market needs.
---
If you want, I can also help draft a more concise or technical version depending on the intended use.
Data Sheet
|
Product name |
400kW resistive load bank; |
| Model number | RT400kWLB; |
| Design | Outdoor design with IP54 rating |
|
Rated power |
AC415V,3 phase 4 wire. Connected with tin plated copper bar; |
| Control power |
AC380V,3 phase 4 wire,connected with quick coonector/terminal; |
| Frequency | 50Hz/60Hz; |
| Loading accuracy | ≤ 3%; |
| 3 phase balance | Unbalance degree ≤ 3%; |
| Duty cycle | Continuous work |
| Insulation | F |
|
Operation mode |
1)Local panel switching operation 2)Remote PC operation(Mod bus TCP communication protocol,PLC system,operation software,support load data save and printing); |
|
Resistive load steps |
1kW resolution;1kW+2kW+2kW+5kW+10kW+10kW+20kW+50kW+100kW×3; |
|
Resistor |
8020 Ni-Cr alloy finned resistor; |
|
Cooling system |
Forced air cooling;horizontal air intake and outlet;Axial fan,noise less than 80dB at 3m distance; |
| Enclosure | Q235 steel,powder coated. |
|
Protection |
High temperature,low air volume,phase sequence,short circuit,fan interlock,emergency stop; |
|
Digital meter |
Voltage,current,power,power factor and frequency; |
|
Load expansion |
Parallel expansion of multiple loads; |
|
Standard |
Meet international standard,ship standard,military standard and telecommunication standard; |
|
Movement |
Forklift holes; |
|
Color |
RAL 7035(industrial grey); |
| Dimensions | 1150×1400×1600mm |
| Weight | 550Kg |
|
Ambient temperature |
-20℃ to 50℃ |
|
Humidity |
Up to 100% |
|
Altitude |
Up to 2500m |
|
Atmospheric pressure |
86 to 106kPa |
