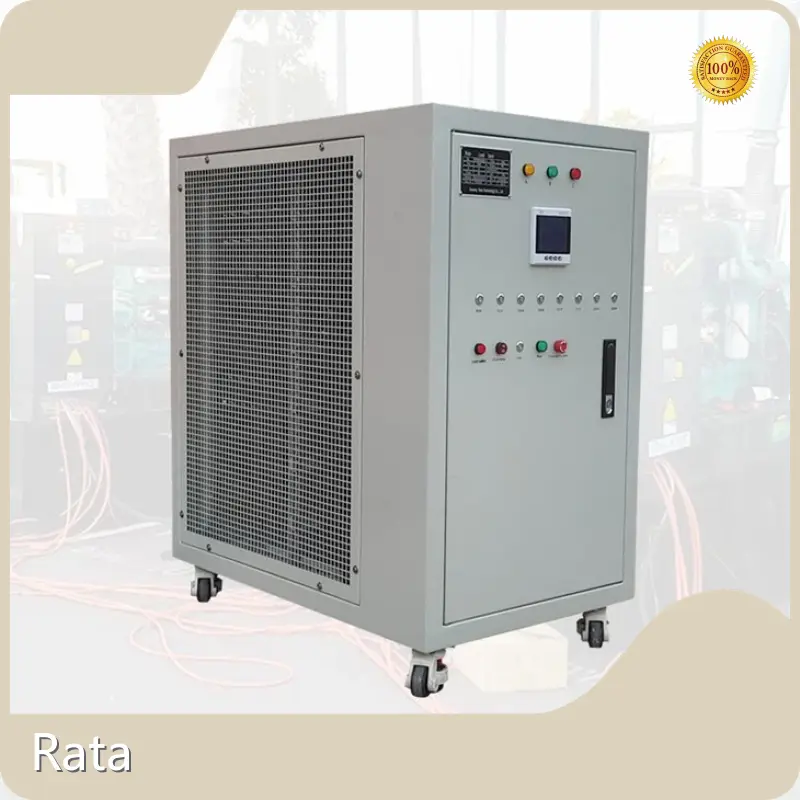

Rata Load Bank Load Bank Wholesale - Rata-10 1

Rata Load Bank Load Bank Wholesale - Rata-10 2

Rata Load Bank Load Bank Wholesale - Rata-10 3

Rata Load Bank Load Bank Wholesale - Rata-10 4

Rata Load Bank Load Bank Wholesale - Rata-10 5

Rata Load Bank Load Bank Wholesale - Rata-10

Warranty time:

3 years

Delivery time:

4 weeks

Brand:

RATA

Min.Order Quantity:

1 pcs

Certification:

CE 60204 Standard

Inquiry

Product Overview

- Rata 100 kW load bank available in indoor and outdoor versions.

- Multiple control options: local panel switching, touch-screen control, and remote PC control.

- Mobile design with universal wheels for easy movement.

- Supplied with user-friendly control software that is pre-commissioned; remote operator training is available.

Rata Load Bank Load Bank Wholesale - Rata-10 6

Rata Load Bank Load Bank Wholesale - Rata-10 7

Product Features

- Configurable control modes to suit on-site or remote testing workflows.

- Rugged construction using export-quality/raw materials for reliable performance.

- Portable chassis with universal wheels for quick relocation.

- Intuitive control software supplied and tested before delivery; remote commissioning/training supported.

- Built-in serviceability guidance (cleaning intervals, fan fixation reinforcement after ~2000 hours, paint repair recommendations).

Product Value

- Provides a dependable means to load-test generators, UPS, switchgear and battery systems, reducing commissioning and maintenance risk.

- Pre-commissioned software and remote training shorten setup time and lower on-site engineering costs.

- Durable design and quality materials extend service life and reduce total cost of ownership.

- Practical maintenance guidance helps preserve performance in harsh environments.

Rata Load Bank Load Bank Wholesale - Rata-10 8

Rata Load Bank Load Bank Wholesale - Rata-10 9

Product Advantages

- Proven superior performance and long service life compared with similar products.

- Backed by Deyang Rata Technology’s quality and technical support, with a structured pre-sales and after-sales service system.

- Manufactured with advanced facilities and technology and developed by an experienced, dedicated team.

- Export-quality production and a track record of customer praise and wide distribution.

Application Scenarios

- Routine and acceptance testing of diesel/gas generator sets and prime movers.

- Commissioning and capacity testing for UPS systems, battery banks and switchgear.

- Data centers, telecom sites and industrial plants needing controlled load simulation.

- Maintenance shops, rental fleets, shipyards and outdoor field-testing applications.

Rata Load Bank Load Bank Wholesale - Rata-10 10

Data Sheet

100kW Resistive Load Bank Data Sheet
Product name	100kW resistive load bank;
Model number	RT100kWLB;
Design	Container type with air duct for outdoor use;
Rated power	Customized voltages are available;
Control power	AC230V,1 phase 2 wire,connected with quick coonector/terminal;
Frequency	50Hz/60Hz;
Loading accuracy	≤ 3%;
3 phase balance	Unbalance degree ≤ 3%;
Duty cycle	Continuous work
Insulation	F
Operation mode	1)Local panel switching operation 2)Remote PC operation(Mod bus TCP communication protocol,PLC system,operation software,support load data save and printing);
Load steps	1kW resolution;1kW+2kW+2kW+5kW+10kW+10kW+20kW+50kW
Resistor	8020 Ni-Cr alloy finned resistor;
Cooling system	Forced air cooling;horizontal air intake and outlet;
Enclosure	Q235 steel,powder coated.
Protection	High temperature,low air volume,emergency stop;
Digital meter	Voltage,current,power,power factor and frequency;
Load expansion	Parallel expansion of multiple loads;
Standard	Meet international standard,ship standard,military standard and telecommunication standard
Movement	Universal wheels
Color	RAL 7035(industrial grey)
Dimensions	700mm500mm960mm (LWH)
Weight	105Kg
Ambient temperature	-20℃ to 50℃
Humidity	Up to 100%
Altitude	Up to 2500m
Atmospheric pressure	86 to 106kPa
Warranty period	12 months start from commissioning at clients' ste
Packing	Wooden case + wooden pallet

Design

100kW resistive load bank design

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
