Product Overview

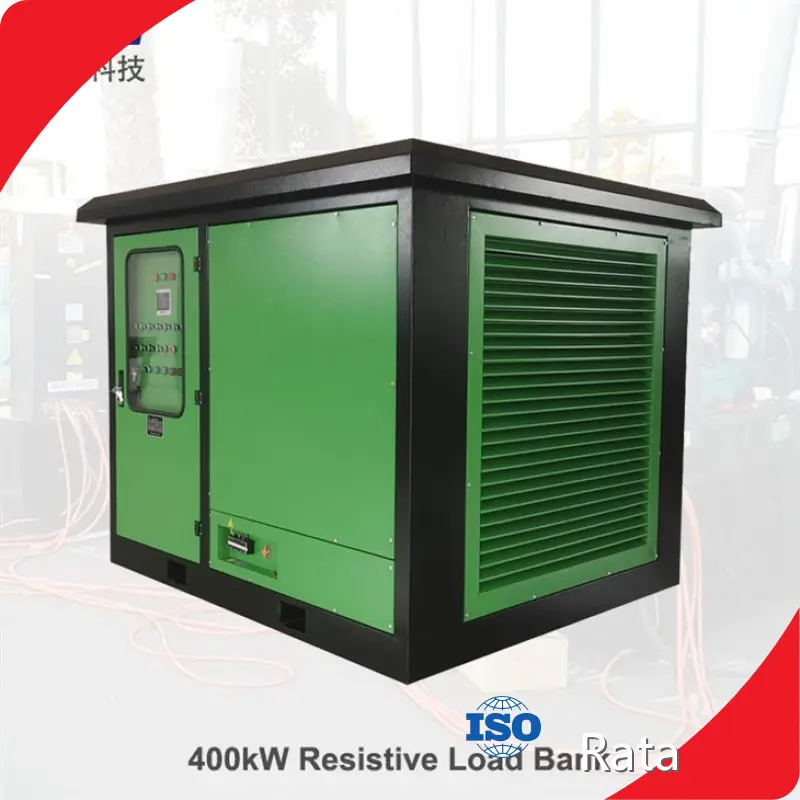

- Model: R400 kW / 400 V / 50 Hz resistive load bank by Rata. Designed as a low-voltage, pure resistive load bank (power factor 1.0) for on-board and field generator testing. Outdoor-capable canopy (IP54), compact footprint (1150 × 1400 × 1600 mm) and approximately 550 kg weight with forklift holes for movement.
Product Features
- Rated power: 400 kW resistive only; voltage: 400 VAC, 3-phase 4-wire.
- Precise stepped loading: 1 kW + 2 kW + 2 kW + 5 kW + 10 kW + 10 kW + 20 kW + 50 kW + 3×100 kW (fine resolution including 1 kW step).
- Resistors: 8020 Ni-Cr alloy finned elements; forced-air cooling with horizontal discharge.
- Control: local panel plus remote PC control via Siemens PLC, RJ45 communication, load data save and printing. Panel includes phase-sequence indicator, instruments, step indicators, fan switch, alarms (high temp, low air volume), load switches and emergency stop.
Product Value
- Enables accurate, repeatable loading for commissioning, acceptance testing, preventive maintenance and diagnostics of diesel generators and other low-voltage power sources.
- Unity power factor and fine step resolution allow precise simulation of load profiles and staged loading for safe, controlled testing.
- Data logging and remote control support traceable test records and easier reporting for customers and regulators.
Product Advantages
- Built to standards with CE and ISO9001/14001/45001 certifications and international testing recognition.
- Robust outdoor design and high-quality Ni-Cr resistors for long service life; safety features and alarms for protected operation.
- OEM/ODM availability, 18 patents and experienced R&D/technical team (company operating since 2013, 7×24 support), enabling customization and reliable after-sales support.
- Packaged for transport (wooden case/pallet) and engineered for site handling.
Application Scenarios
- On-board/marine generator load testing and commissioning.
- Field and factory acceptance testing (FAT) of diesel generators and standby power systems.
- Routine maintenance and preventive load testing in utilities, rental fleets, industrial sites, data centers and power plants.
- Training, performance validation and diagnostic load runs where controlled resistive loading and documented results are required.
Data Sheet
|
Product name |
400kW resistive load bank; |
| Model number | RT400kWLB; |
| Design | Outdoor design with IP54 rating |
|
Rated power |
AC415V,3 phase 4 wire. Connected with tin plated copper bar; |
| Control power |
AC380V,3 phase 4 wire,connected with quick coonector/terminal; |
| Frequency | 50Hz/60Hz; |
| Loading accuracy | ≤ 3%; |
| 3 phase balance | Unbalance degree ≤ 3%; |
| Duty cycle | Continuous work |
| Insulation | F |
|
Operation mode |
1)Local panel switching operation 2)Remote PC operation(Mod bus TCP communication protocol,PLC system,operation software,support load data save and printing); |
|
Resistive load steps |
1kW resolution;1kW+2kW+2kW+5kW+10kW+10kW+20kW+50kW+100kW×3; |
|
Resistor |
8020 Ni-Cr alloy finned resistor; |
|
Cooling system |
Forced air cooling;horizontal air intake and outlet;Axial fan,noise less than 80dB at 3m distance; |
| Enclosure | Q235 steel,powder coated. |
|
Protection |
High temperature,low air volume,phase sequence,short circuit,fan interlock,emergency stop; |
|
Digital meter |
Voltage,current,power,power factor and frequency; |
|
Load expansion |
Parallel expansion of multiple loads; |
|
Standard |
Meet international standard,ship standard,military standard and telecommunication standard; |
|
Movement |
Forklift holes; |
|
Color |
RAL 7035(industrial grey); |
| Dimensions | 1150×1400×1600mm |
| Weight | 550Kg |
|
Ambient temperature |
-20℃ to 50℃ |
|
Humidity |
Up to 100% |
|
Altitude |
Up to 2500m |
|
Atmospheric pressure |
86 to 106kPa |
