Rata Load Bank Products Wholesale - Rata-16
Product Overview
1) Product overview
Product Features

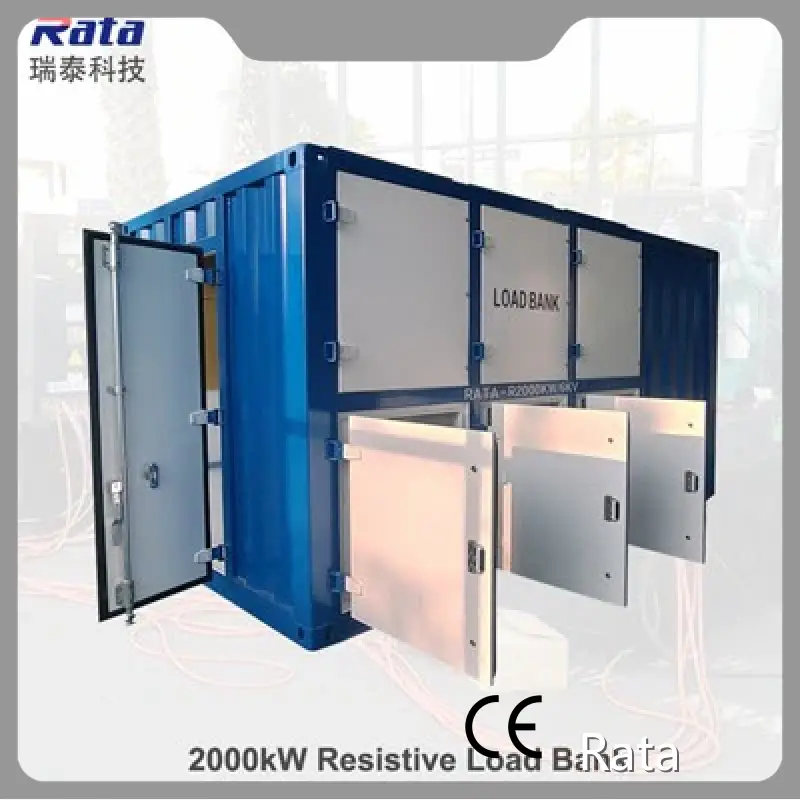

- Rata Load Bank Products Wholesale - Rata: a containerized, custom-built R2000 kW resistive load bank (AC 6 kV, 50 Hz) designed for generator set testing. The unit weighs about 6,500 kg, supports local manual control and remote PC automatic control, and was produced to customer specification with on-site factory acceptance available.
Product Value
2) Product features
Product Advantages
- Container-type layout with horizontal air intake and vertical air outlet (ducted).
Application Scenarios
- 8020 Ni-Cr finned resistors, tin‑plated copper busbars/terminals, axial cooling fans (≤80 dB at 3 m).
- Local panel switching plus PC software for remote control, curve/chart/table display, data save and print.
- Multiple protections: high temperature, low air volume, short circuit, overcurrent, access control, smoke alarm, emergency stop.
- Marine C5 anti-corrosion paint and robust intake protection (cover and steel mesh).
3) Product value
- Provides accurate, repeatable, large-capacity (2 MW) load testing to validate genset performance, commissioning and acceptance.
- Improves safety and reduces downtime by enabling controlled, instrumented testing with data logging and printed reports.
- Corrosion-resistant construction and industrial-grade components extend service life in harsh environments (e.g., oilfields).
4) Product advantages
- Customizable to client requirements and proven through factory acceptance testing and customer operation.
- Strong quality and compliance profile: ISO certifications, CE, multiple patents and software copyrights.
- Durable design (marine C5 coating, quality copper connections) and comprehensive safety features.
- Established manufacturer with export experience, after‑sales service, and on-site technical support.
5) Application scenarios
- Oilfield and remote-site generator load testing and commissioning.
- Power plants, rental/backup generator acceptance and maintenance.
- Industrial facilities, shipyards, military bases, data centers and other locations needing controlled electrical load simulation.
- Factory acceptance testing, routine maintenance, and performance verification of large electrical power sources.
Products Description
|
Product name |
2000kW load bank |
|
Rated power capacity |
R2000kW |
| Rated voltage | 6kVAC,3 phase,connected with copper bar |
| Control voltage | 380VAC,3 phase,connected with terminal |
| Communication interface | RJ45 |
|
Load steps |
50kW+50kW+100kW+100kW+200kW+500kW+500kW+500kW |
|
Resistor |
8020 Ni-Cr alloy finned resistors |
|
Load control |
Local manual control and remote PC control,support load data save and printing |
|
Loading accuracy |
≤ 3% |
|
Three phase balance |
Unbalance degree ≤ 3% |
|
Minimum step |
50kW |
|
Working mode |
Continuous work |
|
Load protection |
Short circuit,overcurrent,high temperature,low air volume,fan fault protection,emergency stop,access control.smoke alarm |
|
External power |
380V/50Hz |
|
Cooling mode |
Forced air cooling, horizontal air outlet |
|
Insulation class |
F |
|
Measurement accuracy |
The display accuracy is 0.5,the sampling accuracy is 0.2 |
|
Electrical parameter display |
Three phase voltage, three-phase current, frequency, power, etc |
|
Load expansion |
Parallel expansion of multiple loads |
|
Standard |
Meet international standard, ship standard, military standard and telecommunication standard |
|
Transport |
Lift lugs on the top of the load bank |
|
Color |
Customized |
| Dimensions | 4500mm*2530mm*2600mm (L*W*H) |
| Weight | 6500Kg |
|
Ambient temperature |
-20℃ to 50℃ |
|
Humidity |
Up to 100% |
|
Altitude |
Up to 2500m |
|
Atmospheric pressure |
86 to 106kPa |
