Product Overview
Certainly! Here is a summary of the product "Rata Load Bank" structured into the requested five points:
Product Features
**Product Overview**
Product Value

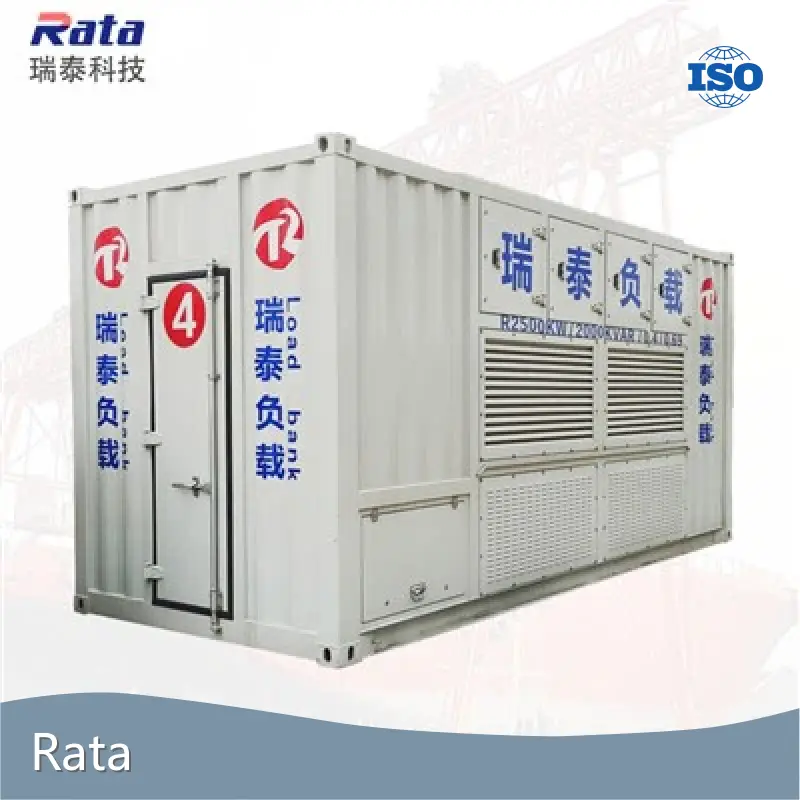

Rata Load Bank is a sophisticated resistive-inductive load testing device designed for evaluating the performance of various electrical equipment such as ship generators, power plants, aviation systems, oil and chemical plants, drilling platforms, mining operations, and self-owned power plants. The key model highlighted, RT3125kVALB, is a 3-phase air-cooled load bank with a rated power of up to 2500kW resistive and 2000kVar inductive, packaged in a container design suitable for rigorous testing scenarios.
Product Advantages
**Product Features**
Application Scenarios
- Combines resistive and inductive load elements with precise, customizable step resolutions (1kW/kVar increments).
- Equipped with robust Ni-Cr alloy finned resistors and 3-phase inductors.
- Features forced air cooling with low noise, digital monitoring of voltage, current, power, power factor, and frequency.
- Supports local panel operation and remote control via Modbus TCP protocol integration.
- Designed to international, military, telecommunication, and ship standards with a high degree of durability for continuous operation and harsh conditions.
**Product Value**
Rata Load Bank ensures reliable, accurate load testing that enhances the maintenance and commissioning of power systems, preventing generator wet stacking and verifying overall system efficiency. Its long service life, flexibility, and compliance with global standards provide customers with a trustworthy tool to maintain and optimize critical power assets, safeguarding operational continuity and safety.
**Product Advantages**
- Manufactured with advanced equipment ensuring efficiency and high-quality output.
- Developed by a strong R&D team and thoroughly tested to perform optimally even under extreme conditions.
- Uses high-quality, branded internal components to guarantee durability and stable performance.
- Offers comprehensive after-sales support including 24/7 service, warranty, rapid on-site response, free technical consulting, and options for OEM/ODM customization.
- Exported successfully worldwide with accumulated 11 years of experience and reputable partnerships with major brands such as ABB, Siemens, and Schneider.
**Application Scenarios**
Ideal for testing and maintaining electronic power generation and distribution systems in diverse industries such as:
- Shipbuilding and maritime generators
- Power plants and electricity stations
- Aviation and aerospace sectors
- Oil, chemical industries, and drilling platforms
- Mining operations
- Renewable energy installations (e.g., wind and solar farms)
- Military applications and critical infrastructure
- Data centers and manufacturing industries requiring reliable power system validation
This comprehensive product supports a wide range of testing applications ensuring power system reliability and efficiency under real operating conditions.
Data Sheet
|
Product name |
2500kW/2000kvar Resistive Inductive Load Bank; |
| Model number | RT3125kVALB; |
| Design | Container type design |
|
Rated power |
AC 380V,400V,415V,440V,690V,customized. 3 phase 4 wire. Connected with tin plated copper bar; |
| Control power |
AC380V,3 phase 4 wire,connected with quick coonector/terminal; |
| Frequency | 50Hz/60Hz; |
| Loading accuracy | ≤ 3%; |
| 3 phase balance | Unbalance degree ≤ 3%; |
| Duty cycle | Continuous work |
| Insulation | F |
|
Operation mode |
1)Local panel switching operation 2)Remote PC operation(Mod bus TCP communication protocol,PLC system,operation software,support load data save and printing); |
|
Resistive load steps |
1kW resolution;1kW+2kW+2kW+5kW+10kW+10kW+20kW+50kW+100kW+100kW+200kW×11; |
|
Resistor |
8020 Ni-Cr alloy finned resistor; |
| Inductive load steps | 1kvar resolution;1kvar+2kvar+2kvar+5kvar+10kvar+10kvar+20kvar+50kvar+100kvar+200kW×9; |
| Inductor | 3 phase inductor; |
|
Cooling system |
Forced air cooling;horizontal air intake and vertical outlet;Axial fan,noise less than 80dB at 3m distance; |
| Enclosure | Q235 steel,powder coated. |
|
Protection |
High temperature,low air volume,phase sequence,short circuit,fan interlock,emergency stop; |
|
Digital meter |
Voltage,current,power,power factor and frequency; |
|
Load expansion |
Parallel expansion of multiple loads; |
|
Standard |
Meet international standard,ship standard,military standard and telecommunication standard; |
|
Movement |
Lift lugs on the top of the load bank; |
|
Color |
RAL 7035(industrial grey); |
| Dimensions | 6000mm*2530mm*2900mm (L*W*H) |
| Weight | 18000Kg |
|
Ambient temperature |
-20℃ to 50℃ |
|
Humidity |
Up to 100% |
|
Altitude |
Up to 2500m |
|
Atmospheric pressure |
86 to 106kPa |
Design drawing:
Details:
Device layout
Wiring busbar
Manual control panel
