Rata Rata Load Bank Factory-1

Product Overview

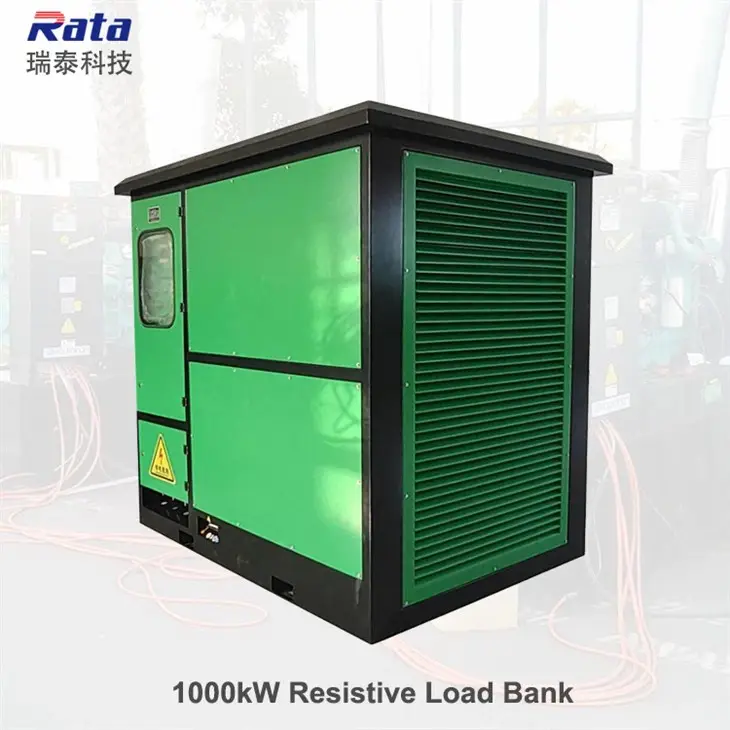

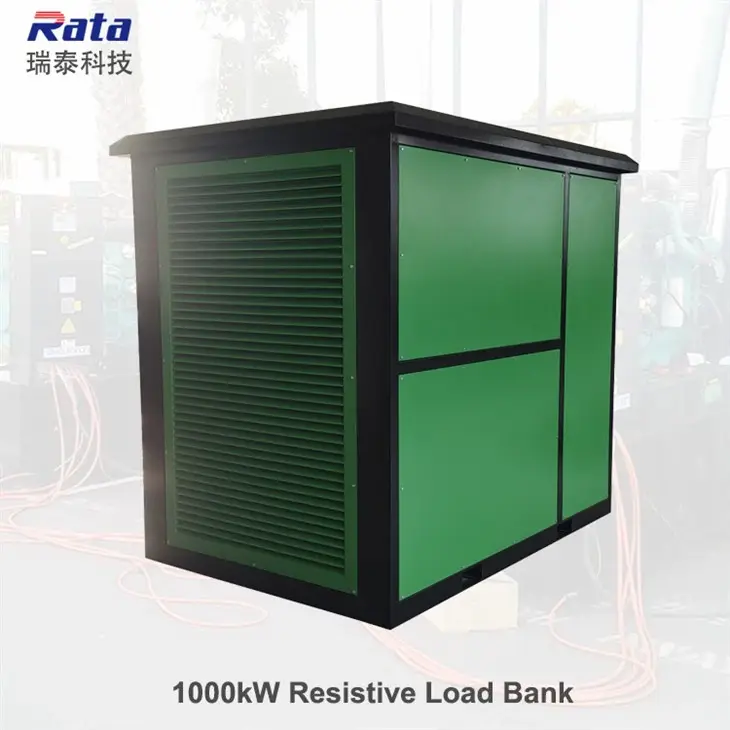

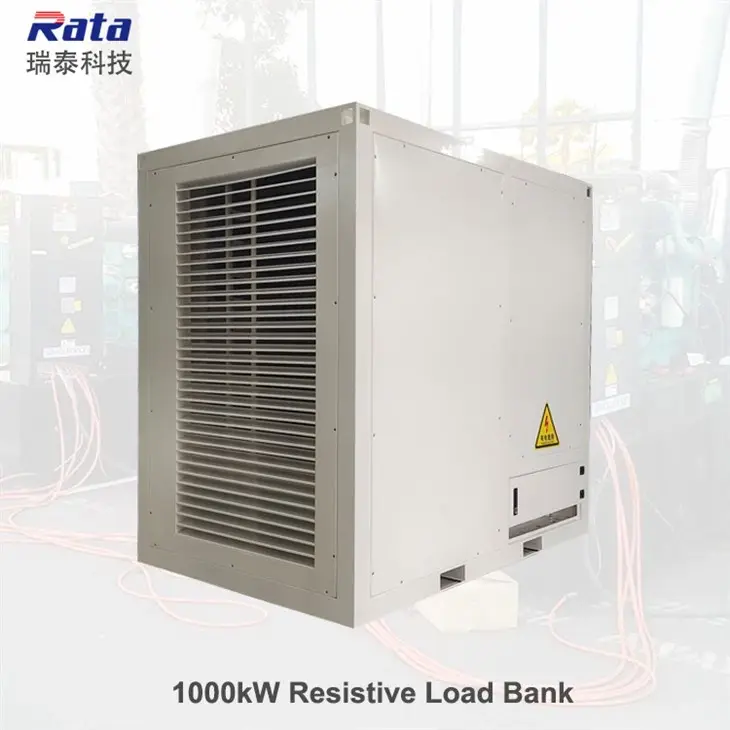

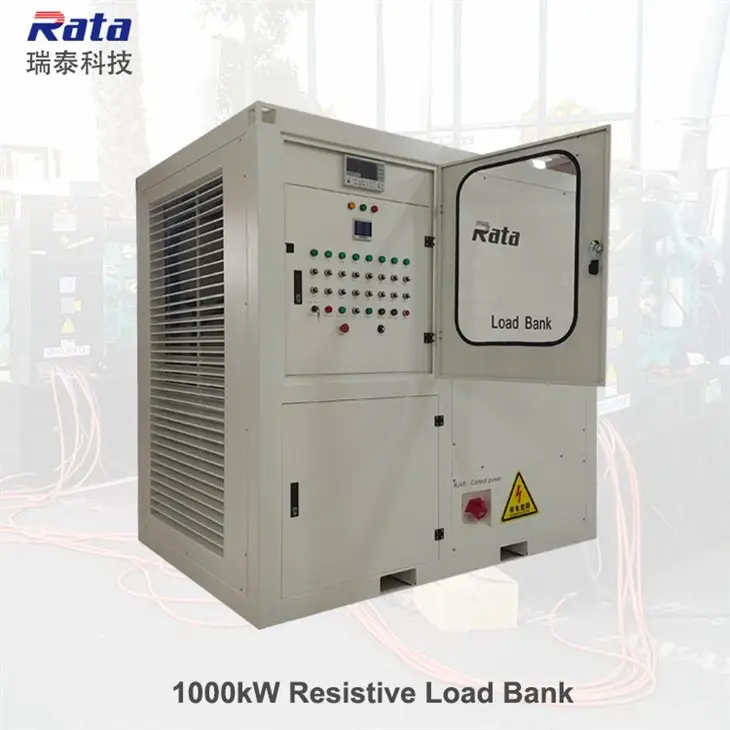

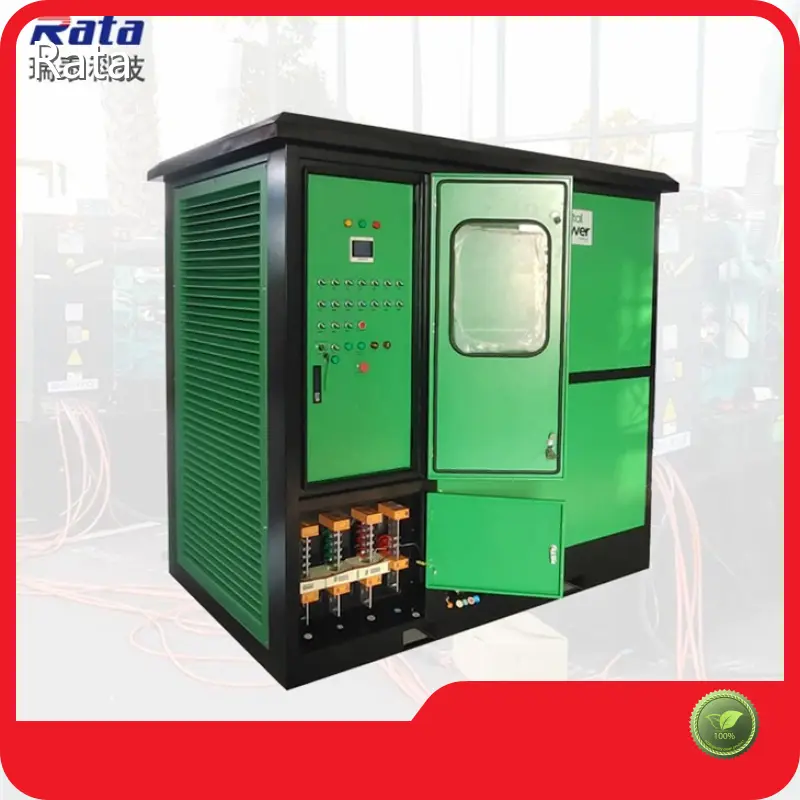

- The Rata Rata Load Bank Factory RT1000kWLB is a 1MW (1000 kW) 3‑phase AC resistive, air‑cooled load bank designed primarily for generator and UPS testing. It is built for outdoor use with a canopy, continuous duty operation, supports common voltages (AC 380/400/415 V) and 50/60 Hz, and provides both local and remote control/monitoring.

Product Features

- Test modes: static, fluctuation and transient (sudden load on/off) tests with generator setting, recovery time and limits testing.

- Precision and steps: loading accuracy ≤ 3%, 3‑phase unbalance ≤ 3%, 1 kW resolution with multi‑step configuration (1kW, 2kW, 5kW, 10kW, 20kW, 50kW, 100kW etc.).

- Measurement & analysis: real‑time data acquisition, local + centralized storage, automatic charting and reporting, full electrical parameter capture (V, I, P, PF, Hz), harmonic analysis (2nd–50th and THD) and energy accumulation.

- Control & connectivity: local panel or remote PC operation, PLC/operation software, Modbus TCP and common interfaces (RJ45, RS232, RS485).

- Build & protection: 8020 Ni‑Cr finned resistors, forced axial air cooling (

Product Value

- Ensures reliable, standards‑compliant generator and UPS commissioning, acceptance testing and periodic exercise by delivering accurate, repeatable load profiles and comprehensive reports.

- Reduces risk of field failures and downtime by validating steady‑state and transient behavior (voltage, current, frequency, harmonics) before deployment.

- Provides traceable test records and customizable reports to meet national, marine, military and telecom standards—helping customers meet regulatory and contractual requirements and optimize asset lifecycle costs.

Product Advantages

- Certified quality and reliability: CE, ISO9001/14001/45001 and SGS approvals; top‑tier internal components and 20‑year expected lifespan under normal use.

- Strong service & customization: OEM/ODM options, custom voltages/colors/logos, 7×24 after‑sales response, 12‑month warranty from commissioning and lifelong technical support (on‑site response guarantees).

- Practical deployment: outdoor canopy design, continuous forced‑air cooling, robust protections, low noise, modular expansion and straightforward remote operation (Modbus TCP) make it easy to integrate in varied test environments.

- Fast production: typical lead time 30–50 days (production to customer requirements).

Application Scenarios

- Generator set factory acceptance, commissioning and maintenance tests (including marine and military generators).

- UPS system testing and verification.

- Power plant, telecom and industrial site load testing and diagnostics.

- Periodic generator exercise, emergency power validation and performance benchmarking.

- Research, lab testing and OEM/end‑user acceptance testing where accurate transient, harmonic and steady‑state electrical measurements and formal test reports are required.
