Rata Rata Load Bank Factory
Product Overview
Sure! Here is the summary of the “Rata Rata Load Bank Factory” product based on the detailed introduction:
Product Features
**Product Overview**
Product Value

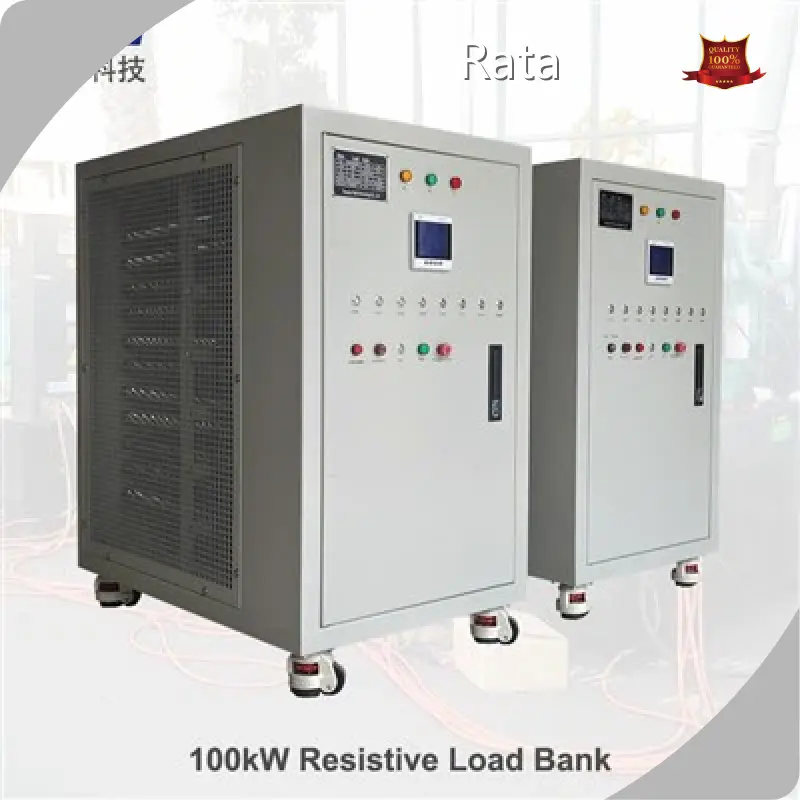

The Rata load bank is a customized, low-voltage pure resistive load bank designed for generator testing. The featured model, R100kW/400V/50Hz, offers a rated current of 145A with a power factor of 1.0. It includes a control panel equipped with multiple functionalities such as phase sequence indication, electrical instrumentation, alarm systems, and fan control. The product supports both local manual and remote PC control, ensuring operational flexibility.
Product Advantages
**Product Features**
Application Scenarios
- Rated power: 100 kW, Voltage: 400 V, Frequency: 50 Hz
- Step settings for load adjustment: 1kW, 2*2kW, 5kW, 9*10kW
- Weight: 180 kg
- Control panel functions include phase sequence indicator, low air volume alarm, fan start switch, and electrical measuring instruments
- Dual control modes: local manual and remote PC control
- Comes with comprehensive documentation and software support
- Complies with national, military, and industry standards ensuring high reliability and safety
**Product Value**
The load bank serves as a critical tool for generator testing and validation by simulating load conditions accurately and safely. Its precise step settings and stable control system make it valuable in enhancing generator reliability and performance verification. The product also supports improved maintenance protocols and operational efficiency, saving costs related to generator failures or downtime.
**Product Advantages**
- Manufactured using advanced technology and strict quality control measures including rigorous pre-delivery testing
- Designed by a specialized R&D team focused on stability and performance
- Quality certified in line with international and national standards, ensuring dependable and safe operation
- Lightweight and compact design for ease of handling and installation
- Provides both manual and remote operation, enhancing usability in various environments
- Comprehensive post-sale support including a 2-year warranty, technical documentation, and PC software
**Application Scenarios**
The Rata load bank is widely applicable in industrial sectors requiring generator testing, such as power plants, marine vessels, military fields, and manufacturing facilities. It is ideal for commissioning, maintenance, and performance testing of diesel generators and other power systems, ensuring their reliability under different load conditions. Additionally, it supports customer needs by providing efficient and economical testing solutions in diverse operational environments.
Data sheet
|
Note: all parameters are for reference only and can be customized |
|
|
Product name |
100kW load bank |
|
Specifications |
R100kW/400V/50Hz |
|
Formation |
One load bank(Including dry resistance load, electrical control components, measurement and control system) |
|
Load steps |
1kW, 2*2kW, 5kW, 2*10kW, 20kW, 50kW |
|
Load connection |
Copper bar |
|
Resistor |
Each resistance element: insulation impedance DC1000V/100MΩ above Withstand voltage AC 2000V for 5min Resistance error of each resistance tube: ±3% |
|
Load control |
Local manual control and remote PC control |
|
Loading accuracy |
≤ 3% |
|
Three phase balance |
Unbalance degree ≤ 3% |
|
Minimum step |
1kW |
|
Working mode |
Continuous work |
|
Load protection |
Short circuit, overcurrent, high temperature, fan fault protection |
|
External power |
380V/50Hz |
|
Cooling mode |
Forced air cooling, horizontal air outlet |
|
Insulation class |
F |
|
Measurement accuracy |
The display accuracy is 0.5,the sampling accuracy is 0.2 |
|
Electrical parameter display |
Three phase voltage, three-phase current, frequency, power, etc |
|
Load expansion |
Parallel expansion of multiple loads |
|
Standard |
Meet international standard, ship standard, military standard and telecommunication standard |
|
Transport |
The load bank has a load-bearing lifting hole, which meets the requirements of long-distance transportation |
|
Color |
Customized |
| Dimensions | 900mm*850mm*700mm (L*W*H) |
| Weight | 120Kg |
|
Ambient temperature |
-20℃ to 50℃ |
|
Humidity |
Up to 100% |
|
Altitude |
Up to 2500m |
|
Atmospheric pressure |
86 to 106kPa |
More specifications
|
Note: all parameters are for reference only and can be customized |
||||
|
Power(kW) |
Voltage(kV) |
Frequency(Hz) |
Size(mm,L*W*H) |
Weight(Kg) |
|
100 |
0.4 |
50/60 |
1100*900*1000 |
320 |
|
200 |
0.4 |
50/60 |
1350*1100*1100 |
450 |
|
300 |
0.4 |
50/60 |
1500*1200*1200 |
650 |
|
400 |
0.4 |
50/60 |
1700*1500*1500 |
830 |
|
500 |
0.4 |
50/60 |
1700*1500*1500 |
950 |
|
600 |
0.4 |
50/60 |
1800*1600*1600 |
1150 |
|
800 |
0.4 |
50/60 |
1900*1800*1700 |
1900 |
|
1000 |
0.4 |
50/60 |
2300*1700*2100 |
2100 |
|
1200 |
0.4 |
50/60 |
2500*1800*2200 |
2300 |
|
1500 |
0.4 |
50/60 |
2500*1860*2300 |
2600 |
|
1800 |
0.4 |
50/60 |
3000*2000*2300 |
4000 |
|
2000 |
0.4 |
50/60 |
3000*2000*2300 |
5000 |
|
2500 |
0.4 |
50/60 |
4000*2438*2500 |
6000 |
|
3000 |
0.4 |
50/60 |
6000*2438*2500 |
7000 |
