Product Overview

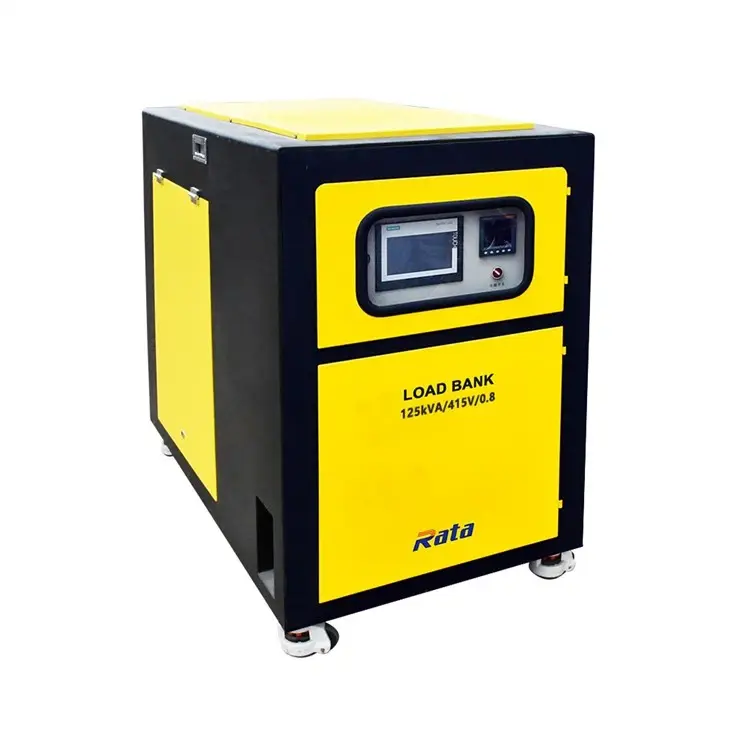

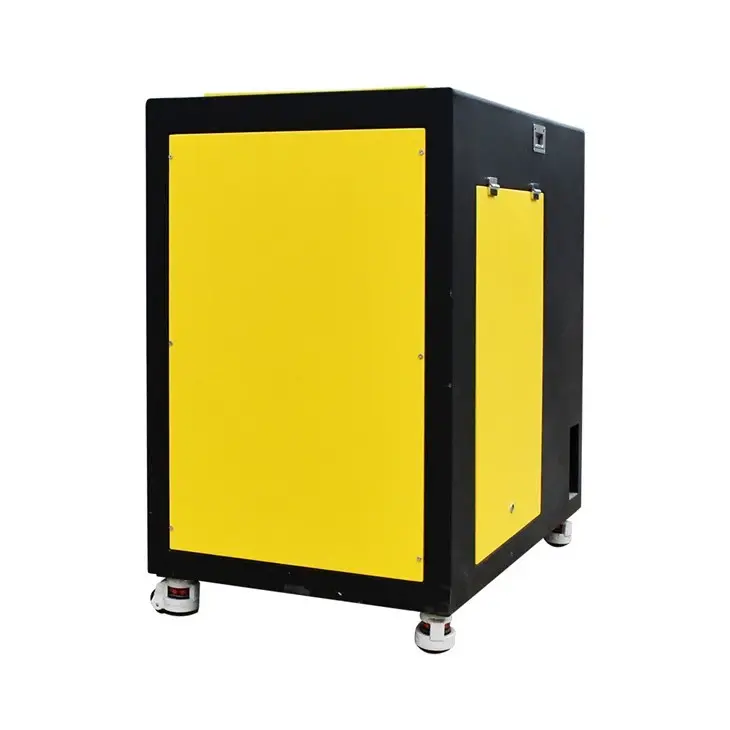

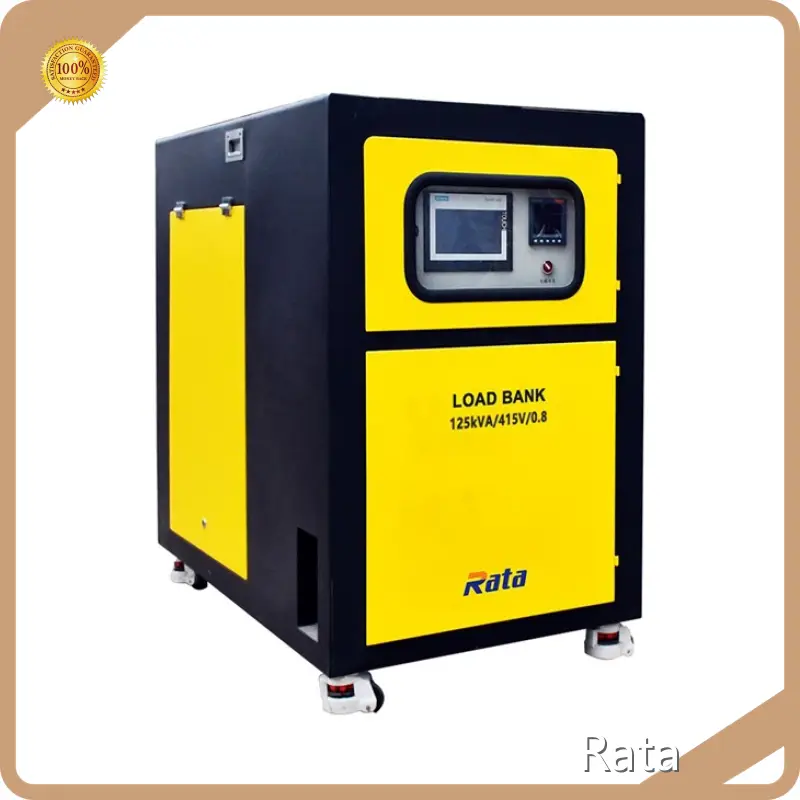

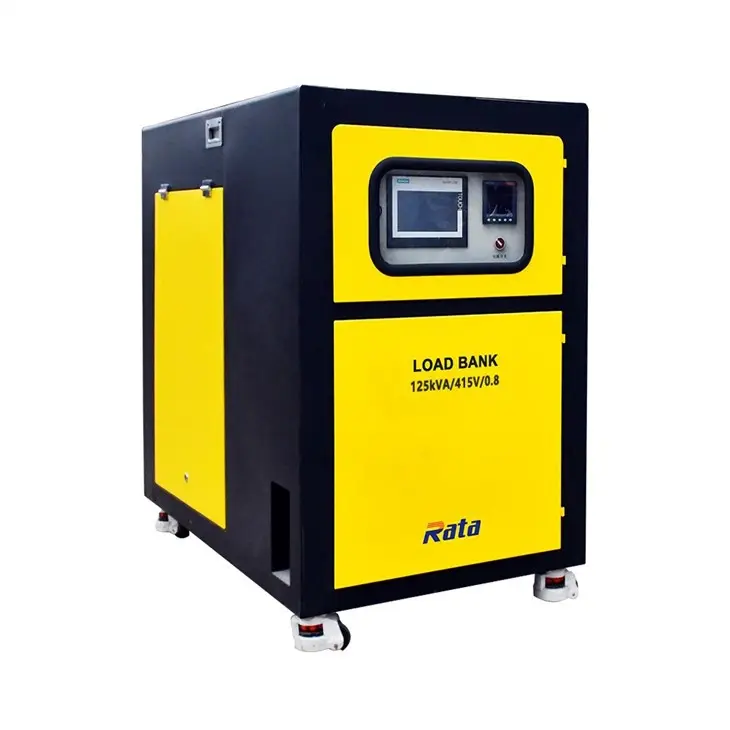

- Model: Rata-R100kW/L75kvar/415V/PF0.8 (125 kVA resistive‑reactive load bank).
- Rated: 100 kW active, 75 kVAr reactive, apparent 125 kVA, designed for 415 V, 50/60 Hz, PF ≈ 0.8.
- Minimum step resolution: 1 kW / 1 kVAr (configurable). Size ≈ 1860 × 1100 × 1540 mm; weight ≈ 500 kg.
- Built for continuous operation with forced air cooling (horizontal inlet/outlet). Shapes and technical parameters can be customized.
Product Features
- Mixed resistive and inductive elements to provide both active and reactive loading.
- Fine loading steps (down to 1 kW / 1 kVAr) for precise control of load profile.

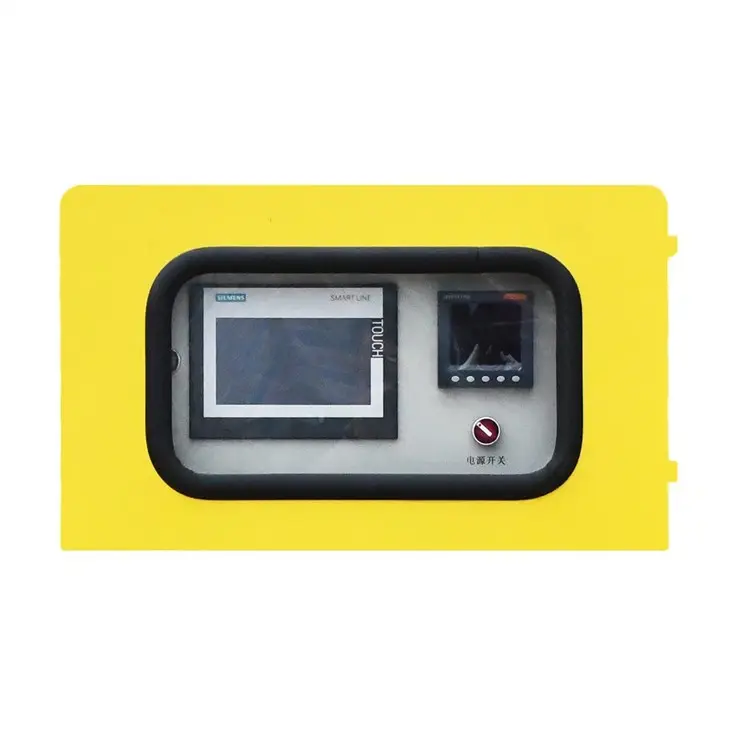

- Dual control: local touch‑screen and remote PC control (RS485 up to 30 m).
- Real‑time display of voltage, current, active power, reactive power, frequency and power factor.
- Robust protections: over‑current, over‑voltage, short‑circuit, high temperature, low air volume and emergency shutdown.
- Copper‑bar internal wiring, continuous duty rated, ambient operation −10 °C to +50 °C.
Product Value
- Accurate, repeatable electrical loading for generator acceptance tests, commissioning and performance verification.
- Simulates real load conditions (resistive + reactive) to validate power system stability, UPS and switchgear behavior.
- Modular/customizable design reduces need for rental/test downtime and speeds commissioning and maintenance.
- Compact, integrated solution (local + remote control) improves test safety and operator convenience.
Product Advantages
- High precision and flexibility: 1 kW/kVAr minimum steps and ±2% load accuracy (sampling accuracy to industry level).
- Comprehensive protections and continuous cooling for safe, long duration tests.
- Remote monitoring/control capability for safer, more convenient operation and data logging.
- Customizable sizing and configurations (low‑ and high‑voltage ranges, liquid‑cooled options available from Rata).
- Backed by Rata’s quality control procedures, professional lab testing, 30‑day delivery typical and 1‑year warranty.
Application Scenarios
- Generator and genset load bank testing and acceptance.
- Power plant commissioning and maintenance, switchgear and transformer testing.
- Data center and UPS system verification, site turnover testing.
- Industrial facility commissioning, preventive maintenance and troubleshooting.
- R&D and laboratory testing, telecom sites, maritime and mobile power system validation.
