Product Overview

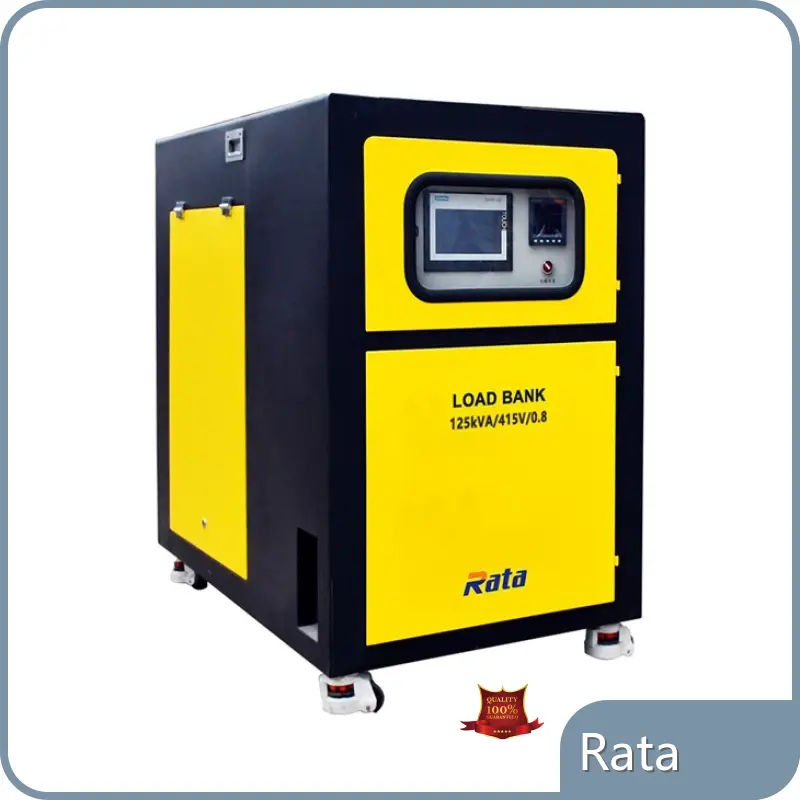

- Model: Rata-R100kW/L75kvar/415V/PF0.8 — a 125 kVA resistive/reactive load bank from Rata (100 kW active, 75 kVAR reactive).
- Rated for 415 V, 50/60 Hz with a nominal power factor ~0.8 and minimum step resolution of 1 kW / 1 kVAR.
- Designed for continuous operation with forced-air cooling; size ~1860 × 1100 × 1540 mm and weight ~500 kg.
- Customizable capacities and configurations available to meet different market and project needs.
Product Features
- Combined resistive and inductive loading (100 kW resistive, 75 kVAR inductive) with fine loading steps (1 kW / 1 kVAR minimum).
- Dual control: local touch-screen interface and remote PC control via RS485 (approx. 30 m).
- Monitoring and display of voltage, current, active/reactive power, frequency and power factor; sampling accuracy Level 0.5, load accuracy ±2%.
- Robust protections: over-current, over-voltage, short circuit, high temperature, low air volume and emergency shutdown.
- Copper-bar wiring (L1, L2, L3, N), three-phase four-wire control power (380 VAC), forced horizontal air inlet/outlet cooling.
Product Value
- Provides precise, repeatable, and safe electrical loading for commissioning, acceptance testing and routine maintenance of generators, UPS, switchgear and power systems.
- Supports both active and reactive loading so users can validate power-factor behavior and thermal performance under realistic conditions.
- Customizability and accurate step control reduce testing time and increase confidence in system performance and reliability.
- Backed by factory QC, a professional test lab and trained after-sales service for reliable long-term support.
Product Advantages
- High resolution loading (1 kW / 1 kVAR) and combined resistive/reactive capability for versatile, realistic testing.
- Flexible control options (local touch screen plus remote PC/RS485) for on-site and off-site operation.
- Comprehensive protection and forced-air cooling enable continuous, safe operation across a wide ambient range (-10 °C to +50 °C).
- Scalable and customizable platform with many power/voltage options and a short typical delivery lead time (about 30 days) and 1-year warranty.
- Established manufacturer support: experienced QC, professional lab testing and trained after-sales personnel.
Application Scenarios
- Commissioning and acceptance testing of diesel/gas generator sets and prime movers.
- Routine load testing and maintenance of UPS systems, data centers and critical power infrastructure.
- Factory and site testing of switchgear, transformers and protection systems.
- Power system performance and power-factor correction verification in industrial plants, utilities and commercial facilities.
- Research, training and test labs that require controlled, repeatable resistive and reactive load profiles.
