Product Overview

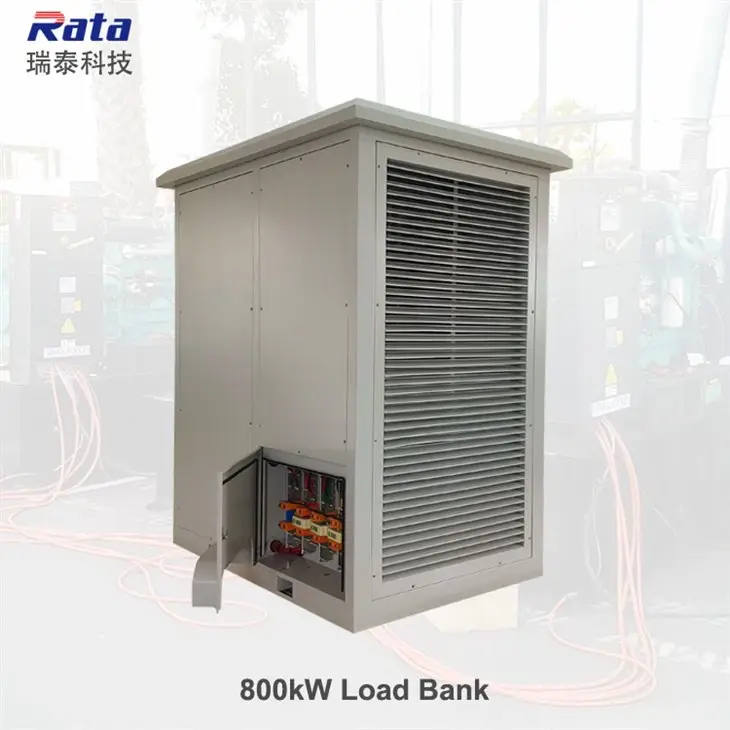

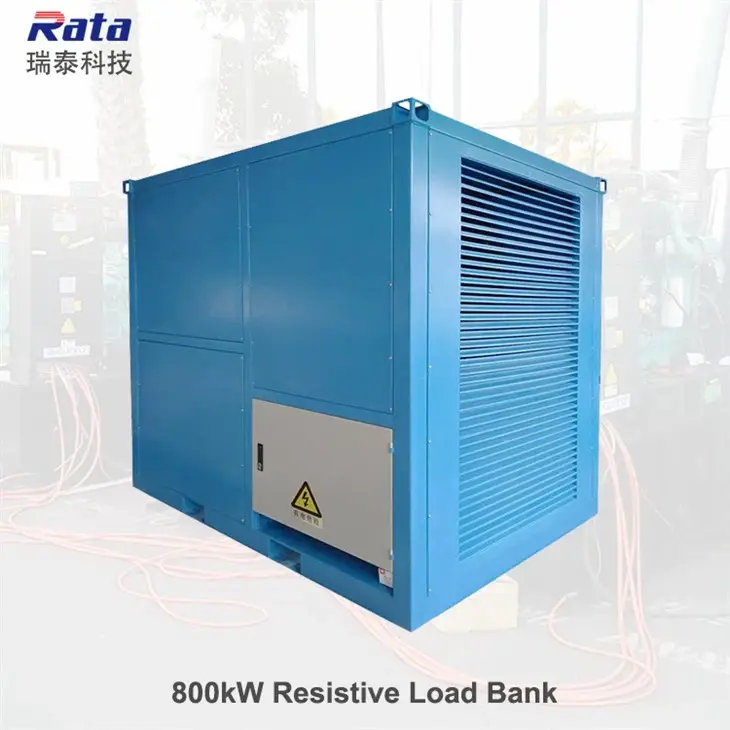

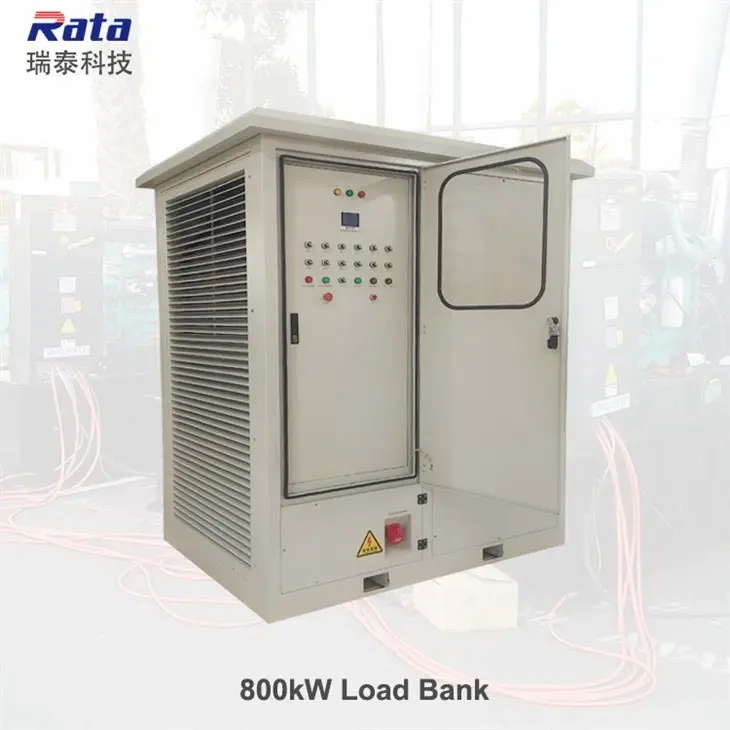

- Rata Rata Load Bank (model RT800KWLB) is an 800 kW three-phase resistive load bank designed for indoor or outdoor use with canopy construction and horizontal air discharge. It supports AC 380–690 V (customizable), 50/60 Hz, continuous duty and is built for generator, UPS and power-system load testing with forklift holes for movement.
Product Features
- Precise loading: 1 kW resolution with multi-step configuration (1kW, 2kW, 2kW, 5kW, 10kW, 10kW, 20kW, 50kW, 7×100kW).
- Control modes: local panel switching and remote PC control (Modbus TCP / PLC) with data save and printing.
- Robust construction: 80/20 Ni‑Cr finned resistors, Q235 powder‑coated steel enclosure, tin‑plated copper busbars.
- Cooling and noise: forced air cooling with axial fans, horizontal intake/outlet, noise < 80 dB at 3 m.
- Protection & monitoring: high-temperature, low-air, phase sequence, short circuit, fan interlock, emergency stop; digital meters for voltage, current, power, power factor and frequency.
- Expandability: parallel expansion of multiple units for larger loads.
Product Value
- Provides accurate, repeatable and controllable resistive loading for commissioning, verification and maintenance—reducing test time and operational risk.
- Enables data logging and printed reports for compliance, QA and traceability.
- Built for long-term, continuous operation and multiple environments (up to 50°C, 100% humidity, altitude to 2500 m), delivering high cost‑performance and reliability.
Product Advantages
- Internationally informed design with modern control (remote PC, Modbus TCP) and fine load granularity.
- Durable components (Ni‑Cr resistors, heavy steel enclosure) and comprehensive protection systems increase operational safety and lifespan.
- Low acoustic profile for a high-power unit and easy mobility (forklift holes).
- Certified quality management and standards compliance (ISO9001:2015, ISO14001:2015, ISO45001:2018, CE) for trusted performance.
Application Scenarios
- Generator set testing: output, stability and overload verification.
- UPS testing and validation: capacity, transfer behavior and output characteristics.
- Power-system installation, commissioning and troubleshooting.
- New energy system verification (solar, wind) and performance evaluation.
- Shipboard power station testing and maritime applications.
- R&D and laboratory experiments requiring accurate, adjustable resistive loads.
