Rata Wholesale Generator Load Bank for Sale Company
Product Overview
Here is the summary of the product "Rata Wholesale Generator Load Bank for Sale Company" based on the detailed introduction:
Product Features
**Product Overview**
Product Value

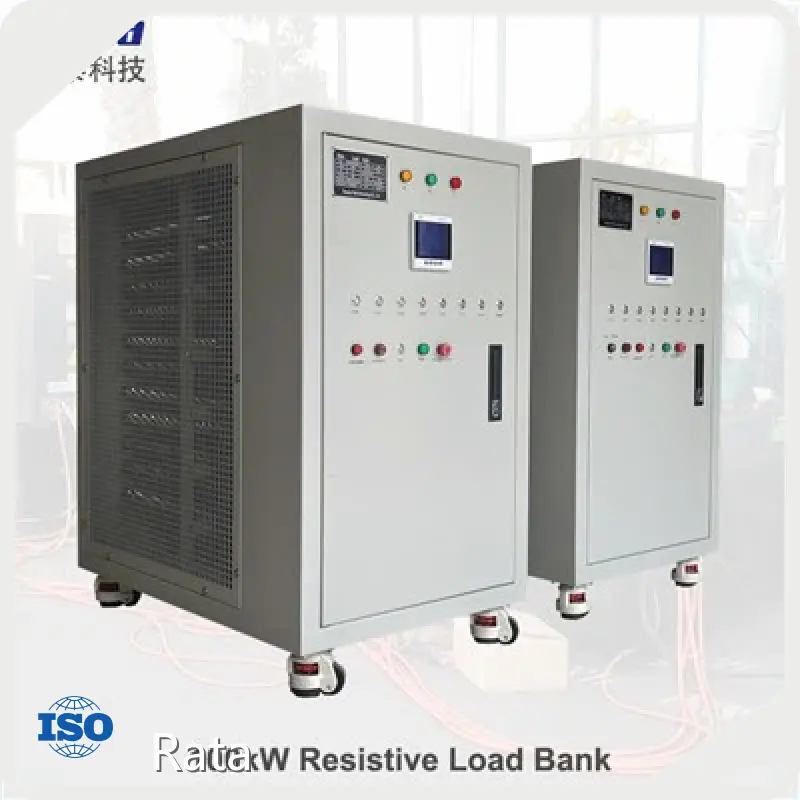

The Rata R100kW/400V/50Hz load bank is a customized low-voltage pure resistive load bank designed primarily for generator testing and performance verification. It features a rated current of 145A, power factor of 1.0, and multiple step settings ranging from 1kW to 90kW. The control panel includes indicators and alarms such as phase sequence, electrical instruments, low air volume alarm, and fan start switch. It supports both local manual control and remote PC control, ensuring flexible operation. The product is backed by a 2-year warranty and complies with relevant national, military, and industry standards.
Product Advantages
**Product Features**
Application Scenarios
- Pure resistive load with a power factor of 1.0 for accurate generator testing
- Multiple step load settings (1kW, 2*2kW, 5kW, 9*10kW) for precise load control
- Comprehensive control panel with phase sequence indicator, electrical instrument, alarm system, and fan control
- Dual control modes: local manual and remote PC control
- Comes with accessory documents including operation manuals, acceptance certificates, inspection reports, electrical schematics, and PC software
**Product Value**
The load bank provides an effective and reliable solution for testing and maintaining generators, helping customers ensure their generators perform optimally under various load conditions. Its customization ability allows clients to have tailored solutions that best fit their operational requirements. By adhering to strict quality management and industry standards, it ensures safety, durability, and long-term dependable performance, reducing downtime and maintenance costs.
**Product Advantages**
- Consistent quality and stable performance due to technologically advanced manufacturing processes and strong quality control systems
- Durable construction with long service life suitable for prolonged industrial use
- Flexible design that can be adjusted to customer-specific needs
- Supported by the strong management and technical experience of Deyang Rata Technology Co., LTD, a recognized leader in the sector
- Fashionable and customizable design patterns available to meet client preferences
**Application Scenarios**
The Rata load bank is widely used in industrial settings to test and verify the performance of diesel and other types of generators, including marine and military applications. It is suitable for facilities requiring reliable generator load testing such as power plants, manufacturing plants, shipyards, and military bases. Its adaptability allows modifications to tailor load test solutions for various customer-specific operational environments.
Data sheet
|
Note: all parameters are for reference only and can be customized |
|
|
Product name |
100kW load bank |
|
Specifications |
R100kW/400V/50Hz |
|
Formation |
One load bank(Including dry resistance load, electrical control components, measurement and control system) |
|
Load steps |
1kW, 2*2kW, 5kW, 2*10kW, 20kW, 50kW |
|
Load connection |
Copper bar |
|
Resistor |
Each resistance element: insulation impedance DC1000V/100MΩ above Withstand voltage AC 2000V for 5min Resistance error of each resistance tube: ±3% |
|
Load control |
Local manual control and remote PC control |
|
Loading accuracy |
≤ 3% |
|
Three phase balance |
Unbalance degree ≤ 3% |
|
Minimum step |
1kW |
|
Working mode |
Continuous work |
|
Load protection |
Short circuit, overcurrent, high temperature, fan fault protection |
|
External power |
380V/50Hz |
|
Cooling mode |
Forced air cooling, horizontal air outlet |
|
Insulation class |
F |
|
Measurement accuracy |
The display accuracy is 0.5,the sampling accuracy is 0.2 |
|
Electrical parameter display |
Three phase voltage, three-phase current, frequency, power, etc |
|
Load expansion |
Parallel expansion of multiple loads |
|
Standard |
Meet international standard, ship standard, military standard and telecommunication standard |
|
Transport |
The load bank has a load-bearing lifting hole, which meets the requirements of long-distance transportation |
|
Color |
Customized |
| Dimensions | 900mm*850mm*700mm (L*W*H) |
| Weight | 120Kg |
|
Ambient temperature |
-20℃ to 50℃ |
|
Humidity |
Up to 100% |
|
Altitude |
Up to 2500m |
|
Atmospheric pressure |
86 to 106kPa |
More specifications
|
Note: all parameters are for reference only and can be customized |
||||
|
Power(kW) |
Voltage(kV) |
Frequency(Hz) |
Size(mm,L*W*H) |
Weight(Kg) |
|
100 |
0.4 |
50/60 |
1100*900*1000 |
320 |
|
200 |
0.4 |
50/60 |
1350*1100*1100 |
450 |
|
300 |
0.4 |
50/60 |
1500*1200*1200 |
650 |
|
400 |
0.4 |
50/60 |
1700*1500*1500 |
830 |
|
500 |
0.4 |
50/60 |
1700*1500*1500 |
950 |
|
600 |
0.4 |
50/60 |
1800*1600*1600 |
1150 |
|
800 |
0.4 |
50/60 |
1900*1800*1700 |
1900 |
|
1000 |
0.4 |
50/60 |
2300*1700*2100 |
2100 |
|
1200 |
0.4 |
50/60 |
2500*1800*2200 |
2300 |
|
1500 |
0.4 |
50/60 |
2500*1860*2300 |
2600 |
|
1800 |
0.4 |
50/60 |
3000*2000*2300 |
4000 |
|
2000 |
0.4 |
50/60 |
3000*2000*2300 |
5000 |
|
2500 |
0.4 |
50/60 |
4000*2438*2500 |
6000 |
|
3000 |
0.4 |
50/60 |
6000*2438*2500 |
7000 |
