Product Overview

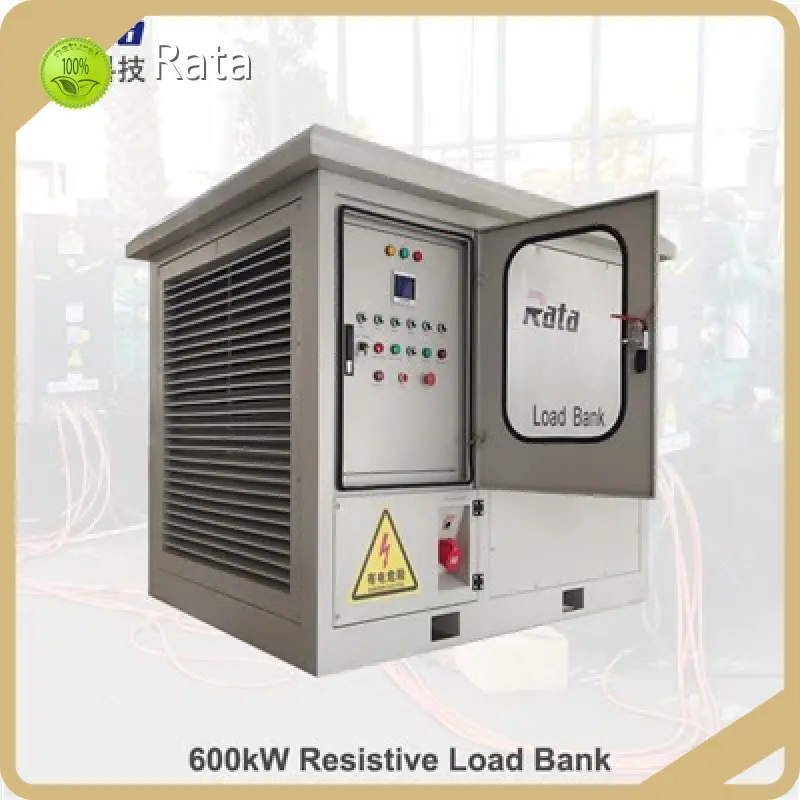

- Rata 600 kW resistive load bank (model R600kW/400VAC/50Hz/PF1.0) is a modular, high‑power AC dummy load designed for performance testing and aging of high‑power UPS, inverters, switching power supplies and diesel generator sets.
- It is a continuous‑duty, forced‑air cooled system built around dry resistance elements with independent IP and customizable configurations and load steps.
Product Features
- Dry resistance elements with high power density, no red‑heat phenomenon and automatic overheat protection; safe even if fans stop.
- Modular design for easy operation, maintenance and parallel expansion of multiple load containers.
- Precise measurement and control: local manual/automatic or remote control, min step 1 kW, loading accuracy ≤3%, three‑phase imbalance ≤3%.
- Robust electrical/mechanical specs: copper bar connections, insulation DC1000V/100MΩ+, AC withstand 2000V/5min, forced air side/top outlet cooling, insulation class F.
- Built‑in protections (short circuit, overcurrent, high temperature, fan fault) and clear electrical displays (three‑phase voltage, current, frequency, power).
Product Value
- Provides reliable, repeatable, and safe load conditions for commissioning, acceptance testing, routine maintenance and ageing of power equipment.
- Reduces risk of equipment damage during testing through accurate control and multiple protection functions.
- Customizable and scalable to match customer test requirements, enabling laboratory, factory and field validation of power systems.
Product Advantages
- Independently developed components and quality‑controlled manufacturing deliver high reliability and long service life.
- Modular and transport‑friendly design (lifting points, optional rollers) simplifies shipping, on‑site installation and expansion.
- Meets international, ship, military and telecommunication standards; supplier provides factory and site acceptance testing, installation support and operator training.
- Manufacturer strengths: experienced technical team, export capability, standardized production and strong after‑sales service.
Application Scenarios
- Performance testing, commissioning and ageing of high‑power UPS, inverters and switching power supplies.
- Load testing and acceptance for diesel generator sets, telecom base stations, data centers and industrial power systems.
- Factory acceptance tests, on‑site commissioning, routine maintenance and emergency/load capability verification for power, telecommunications, maritime and military installations.
