Product Overview
- Deyang Rata Technology Co., Ltd specializes in producing resistive load banks, resistive inductive load banks, rack mounted load banks, and DC load banks.

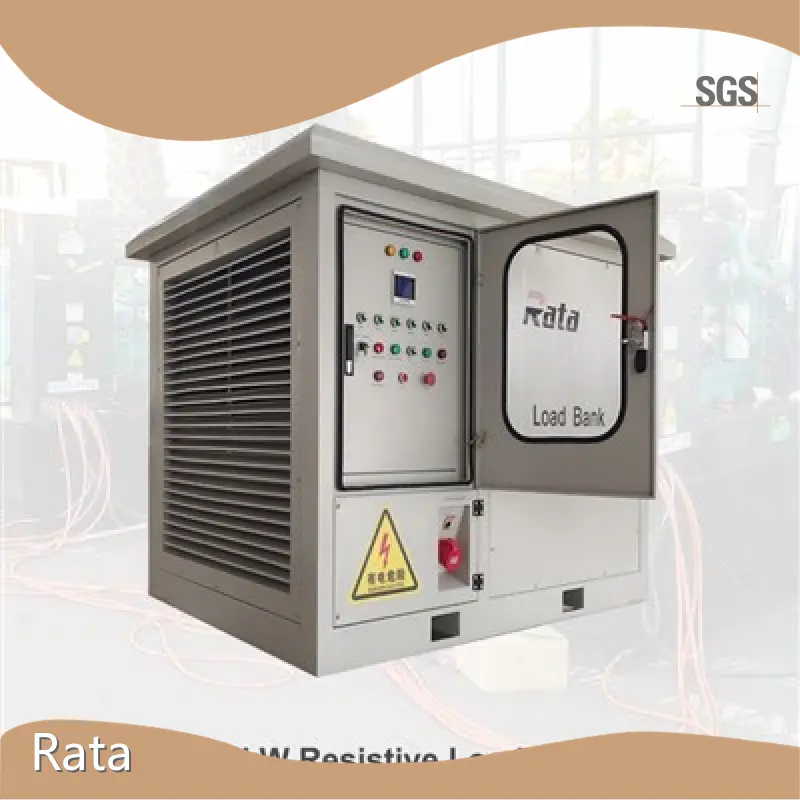

- The 600kW resistive load bank is used to test and evaluate the performance of power supply equipment, generators, UPS systems, and other devices.
- Canopy design allows for both indoor and outdoor use.
- The load bank is designed with advanced features such as local panel switching control and remote PC control mode with software.
Product Features
- Canopy design for outdoor/indoor application
- Rated power for AC 380V, 400V, 415V, 440V, 690V
- Loading accuracy ≤ 3%, 3 phase balance unbalance degree ≤ 3%
- Continuous work duty cycle
- Control interfaces include RJ45, RS232, RS485
Product Value
- Obtained CE, ISO9001, ISO14001, ISO45001, and SGS quality certificates
- OEM/ODM services available for custom design, logo, and color
- Lifelong technical services and support provided
- Good quality parts ensure long service life
- Complies with relevant international standards
Product Advantages
- Competitive advantage analysis conducted to identify strengths and weaknesses
- After-sales service available 24/7 for quick response to any issues
- Partnerships with reputable brands like ABB, Schneider, Omron, Siemens, Phoenix contact, and Delixi
- Fork lift holes for movement
- Parallel expansion of multiple loads possible
Application Scenarios
- Used for testing and evaluating the performance of power supply equipment, generators, UPS systems, and other devices
- Suitable for various industries such as telecommunications, military, marine, and more
- Can be used for both indoor and outdoor applications
- Ideal for customers looking for reliable and high-quality load banks
- Can meet the full load detection needs of different devices
Data Sheet
|
600kW Resistive Load Bank |
|
|
Product name |
600kW resistive load bank; |
| Model number | RT600KWLB; |
| Design | Canopy design for outdoor/indoor application; |
|
Rated power |
AC 380V,400V,415V,440V,690V,customized. 3 phase 4 wire. Connected with tin plated copper bar; |
| Control power |
AC380V,3 phase 4 wire,connected with quick coonector; |
| Frequency | 50Hz/60Hz; |
| Loading accuracy | ≤ 3%; |
| 3 phase balance | Unbalance degree ≤ 3%; |
| Duty cycle | Continuous work |
| Insulation | F |
|
Operation mode |
1)Local panel switching operation 2)Remote PC operation(Mod bus TCP communication protocol,PLC system,operation software,support load data save and printing); |
|
Load steps |
1kW resolution;1kW+2kW+2kW+5kW+10kW+10kW+20kW+50kW+100kW×5; |
|
Resistor |
8020 Ni-Cr alloy finned resistor; |
|
Cooling system |
Forced air cooling;horizontal air intake and outlet;Axial fan,noise less than 80dB at 3m distance; |
| Enclosure | Q235 steel,powder coated. |
|
Protection |
High temperature,low air volume,phase sequence,short circuit,fan interlock,emergency stop; |
|
Digital meter |
Voltage,current,power,power factor and frequency; |
|
Load expansion |
Parallel expansion of multiple loads; |
|
Standard |
Meet international standard,ship standard,military standard and telecommunication standard |
|
Movement |
Fork lift hoes |
|
Color |
RAL 7035(industrial grey) |
| Dimensions | 1910mm*1560mm*1750mm (L*W*H) |
| Weight | 1150Kg |
|
Ambient temperature |
-20℃ to 50℃ |
|
Humidity |
Up to 100% |
|
Altitude |
Up to 2500m |
|
Atmospheric pressure |
86 to 106kPa |
