Wholesale Rata Load Bank Company-4

Product Overview

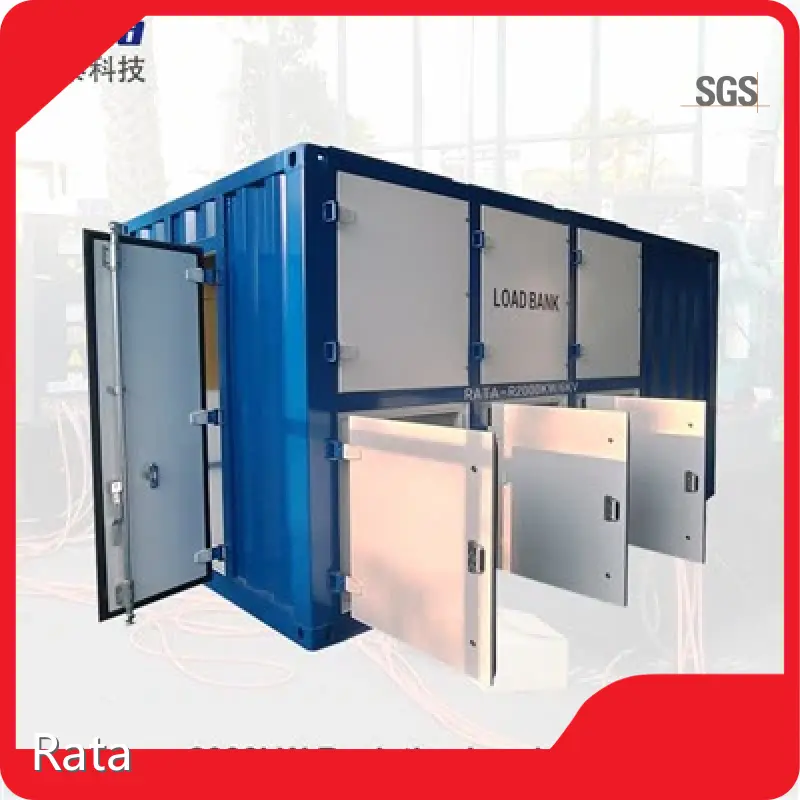

- Model: Rata R2000 kW / 6 kV / 50 Hz containerized resistive load bank (2 MW rated power), produced April 2024.

- Physical: container type unit, approx. 6,500 kg, horizontal air intake and vertical air outlet with ducting.

- Control: local manual panel and remote PC automatic control with operation software (curve/chart/table, data save and print).

- Primary use: designed and supplied for on-site generator set load testing (example: oil field generator testing).

Product Features

- High‑capacity resistive load: 8020 Ni‑Cr alloy finned resistors.

- Control & monitoring: local switching panel + remote PC control with data logging, curves and printable reports.

- Safety & protection: high‑temperature, low‑air‑volume, short‑circuit, over‑current protections, access control, smoke alarm and emergency stop.

- Mechanical & electrical: tin‑plated copper busbars/terminals for bottom power cable connection; container cover and steel mesh protection on the intake side.

- Environmental & acoustic: marine C5 anti‑corrosion paint level; axial fans keeping noise below 80 dB at 3 m.

Product Value

- Reliable, repeatable full‑load testing for generators and power systems, reducing commissioning and maintenance risk.

- Automated data capture and reporting speeds diagnostics and helps meet test documentation requirements.

- Robust construction and marine‑grade painting enable long service life in harsh or corrosive environments (e.g., oilfields, coastal sites).

- Onsite acceptance and user training demonstrate operability and shorten customer ramp‑up time.

- Backed by manufacturer quality systems and certifications for confidence in product consistency.

Product Advantages

- Proven manufacturer: Rata (since 2013) with 18 load‑bank patents, ISO 9001/14001/45001 and CE certification, plus multiple software copyrights.

- Strong after‑sales & service orientation: documented factory acceptance, customer training, and international export track record.

- Customization capability and experienced technical staff for tailored solutions.

- Good logistics location and production capacity for timely delivery.

- Competitive technical specs (2 MW capacity, 6 kV rating, compact containerized form, integrated safety and data functions).

Application Scenarios

- Onsite generator set load testing and commissioning (oil & gas fields, remote generator farms).

- Power plant and substation commissioning, routine generator maintenance and performance verification.

- Marine and shipboard generator testing or shore‑side test facilities (marine C5 paint).

- Rental fleets, test houses and electrical laboratories requiring portable high‑power resistive testing.

- Data centers, UPS systems and industrial facilities needing controlled load application for verification and acceptance tests.
