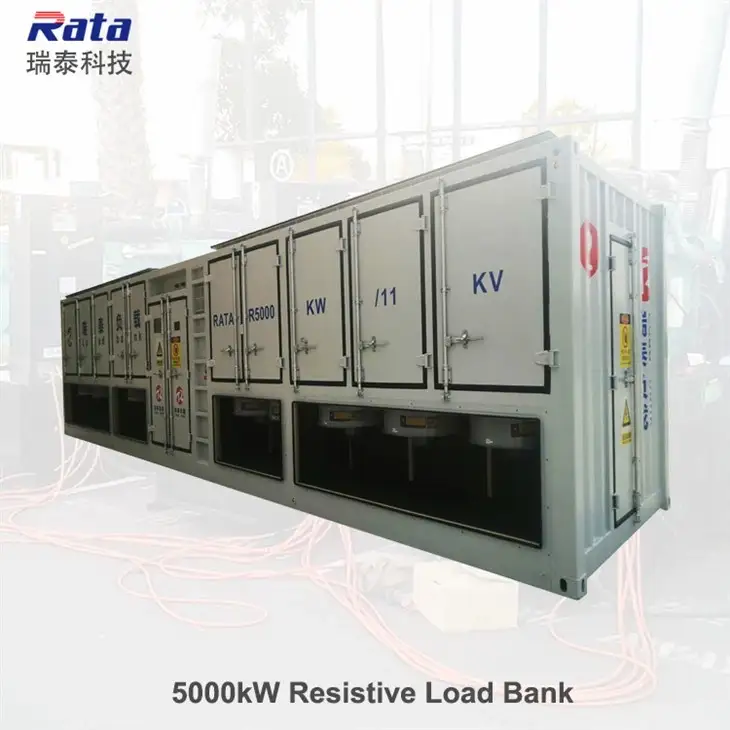

5MW High Voltage Load Bank
Rata 5000kW high voltage load bank is a special equipment for detecting high-voltage power supply. It can directly measure high-voltage power supply without going through transformer.
Rata is precisely manufactured using leading-edge production techniques in line with the current market standards.
5MW/11kV Resistive Load Bank
Used for Rwanda National Gas Power Plant
Brief Introduction
5MW/11kV AC resistive load bank designed use high voltage contactor for 11kV,local + remote PC control mode for clients' choice,horizontal air intake and vertical air outlet with airducts for water proof and prevent animals into the load bank.The load bank size is 12000*2530*2600mm,Installed on a cement base for use.Mainly used for power station.
Packing and Delivery
5MW resistive load bank packed with film only,because the load bank itself is water proof design.Generally export by Sea.
After Sales & Onsite service
Rata supply 7*24 hours after sales service in order to solve the problems.
Rata supply charged service include load bank commissioning and trainign to make sure the user fully know about the load bank and operation.
How to order
Send us your requirement of the load bank,our professional technicians will make design for the load bank to meet your needs.
Products Description
|
5MW Resistive Load Bank Data Sheet |
|
|
Product name |
5000kW resistive load bank; |
| Model number | RT5000kWLB; |
| Design | Container type with air duct for outdoor use; |
|
Rated power |
AC 11kV. Connected with tin plated copper bar. Other customized voltages are available; |
| Control power |
AC380V,3 phase 4 wire,connected with quick coonector/terminal; |
| Frequency | 50Hz/60Hz; |
| Loading accuracy | ≤ 3%; |
| 3 phase balance | Unbalance degree ≤ 3%; |
| Duty cycle | Continuous work |
| Insulation | F |
|
Operation mode |
1)Local panel switching operation 2)Remote PC operation(Mod bus TCP communication protocol,PLC system,operation software,support load data save and printing); |
|
Load steps |
100kW resolution;100kW+200kW+200kW+500kW+1000kW+1000kW+1000kW+1000kW |
|
Resistor |
8020 Ni-Cr alloy finned resistor; |
|
Cooling system |
Forced air cooling;horizontal air intake and vertical outlet;Axial fan,noise less than 80dB at 3m distance; |
| Enclosure | Q235 steel,powder coated. |
|
Protection |
High temperature,low air volume,phase sequence,short circuit,fan interlock,access control,temperature and humidity control,emergency stop; |
|
Digital meter |
Voltage,current,power,power factor and frequency; |
|
Load expansion |
Parallel expansion of multiple loads; |
|
Standard |
Meet international standard,ship standard,military standard and telecommunication standard |
|
Movement |
Lift lugs on the top |
|
Color |
RAL 7035(industrial grey) |
| Dimensions | 12000mm*2530mm*2600mm (L*W*H) |
| Weight | 18000Kg |
|
Ambient temperature |
-20℃ to 50℃ |
|
Humidity |
Up to 100% |
|
Altitude |
Up to 2500m |
|
Atmospheric pressure |
86 to 106kPa |
| Warranty period | 12 months start from commissioning at clients' ste |
| Packing | Wrapping film |
