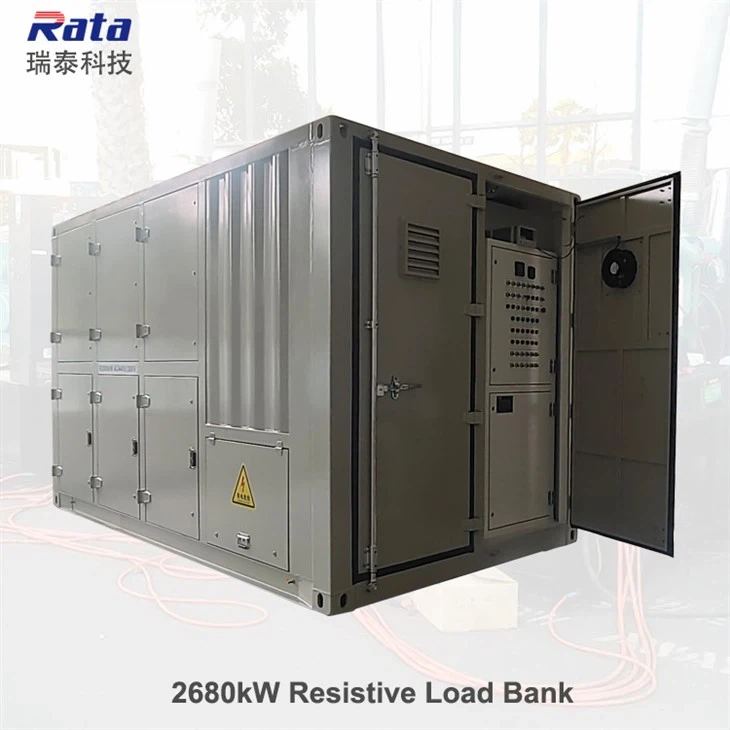

2680kW/2MW AC Resistive Load Bank
2680kW/2MW/440V/380V AC resistive load bank was designed as used for 440V and 380V power source.When the voltage is 440VAC,the power capactity should be 2680kW,when the voltage is 380VAC,the power capacity is 2000kW.
A variety of sizes and colors for our Rata can be selected by you.
Products Description

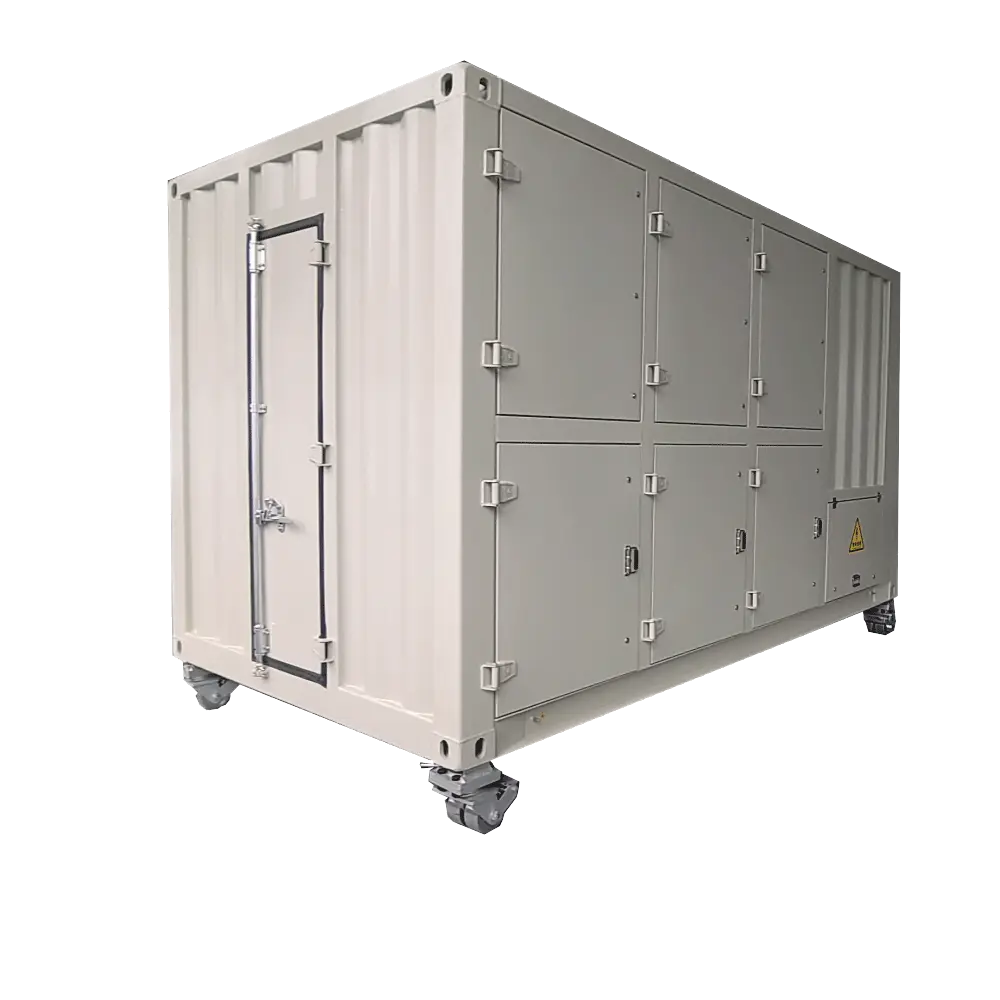

2680kW/2MW/440V/380V AC resistive load bank was designed for Korea client,used for 440V and 380V power source.When the voltage is 440VAC,the power capactity should be 2680kW,when the voltage is 380VAC,the power capacity is 2000kW.Container type,IP54 rating. Horizontal air intake and vertical air outlet with air duct,water and snow proof.Cover and steel mesh designed for the air intake to prevent foreign objects from entering.Lift lugs on the load bank top for movement.Customized load bank enclosure color.
main Data Sheet
| Rated power capacity | R2680kW:440V/2000kW:380V |
| Design | Container type with IP54 rating |
| Rated voltage | 440VAC/380VAC,3 phase 4 wire,connected with tin plated copper bar |
| Control voltage | 380VAC,3 phase 4 wire,connected with terminal |
| Control mode | Local panel switching control and remote PC control,generator tester,PLC system,RJ45 interface,super 6 category net cable,curve,chart,table,support load data save and printing |
| Load steps | 10kW+20kW+30kW+40kW+100kW+100kW+100kW+100kW+500kW+500kW+500kW |
| Cooling | Forced air cooling.Horizontal air intake and vertical air outlet with air duct.Axial fans,noise less than 80dB in 3 meters. |
| Resistor | 8020 Ni-Cr alloy finned resistor |
| Protection | Short circuit,overcurrent,high temperature,low air volume,fan fault protection,emergency stop,access control.smoke alarm |
| Size | 4500*2530*2600mm |
| Weight | 7500kgs |
| Packing | Wrapping film for load bank and wooden case and pallet for air duct. |
Packing & Delivery
Load bank packed with film for water proof,air duct packed with wooden case and pallet.
Clients Visitation
Before placed order for 2680kW/2000kW/400V/380VAC resistive load bank,the clients visited our company on Nov.7th,2023.We picked them from the Mianyang Airport,Sichuan Province and arranged food and accomdattion.Clients visited our factory and gave very positive feedback.
thinks so highly of design for Rata that we invest lots of money in it.
Data Sheet
|
Product name |
2680kW/2000kW load bank |
|
Rated power capacity |
R2680kW:440V/2000kW:380V |
| Rated voltage | 440VAC/380VAC,3 phase 4 wire,connected with tin plated copper bar |
| Control voltage | 380VAC,3 phase 4 wire,connected with terminal |
| Communication interface | RJ45 |
|
Load steps |
10kW+20kW+30kW+40kW+100kW+100kW+100kW+100kW+500kW+500kW+500kW |
|
Resistor |
8020 Ni-Cr alloy finned resistors |
|
Load control |
Local panel switching control and remote PC control,generator tester,PLC system,RJ45 interface,super 6 category net cable,curve,chart,table,support load data save and printing |
|
Loading accuracy |
≤ 3% |
|
Three phase balance |
Unbalance degree ≤ 3% |
|
Minimum step |
10kW |
|
Working mode |
Continuous work |
|
Load protection |
Short circuit,overcurrent,high temperature,low air volume,fan fault protection,emergency stop,access control.smoke alarm |
|
Cooling |
Forced air cooling.Horizontal air intake and vertical air outlet with air duct.Axial fans,noise less than 80dB in 3 meters. |
|
Insulation class |
F |
|
Measurement accuracy |
The display accuracy is 0.5,the sampling accuracy is 0.2 |
|
Electrical parameter display |
Three phase voltage, three-phase current, frequency, power, power factor,etc |
|
Load expansion |
Parallel expansion of multiple loads |
|
Standard |
Meet international standard, ship standard, military standard and telecommunication standard |
|
Transport |
Lift lugs on the top of the load bank |
|
Color |
Customized |
| Dimensions | 4500mm*2530mm*2600mm (L*W*H) |
| Weight | 7500Kg |
|
Ambient temperature |
-20℃ to 50℃ |
|
Humidity |
Up to 100% |
|
Altitude |
Up to 2500m |
|
Atmospheric pressure |
86 to 106kPa |
