Product Overview

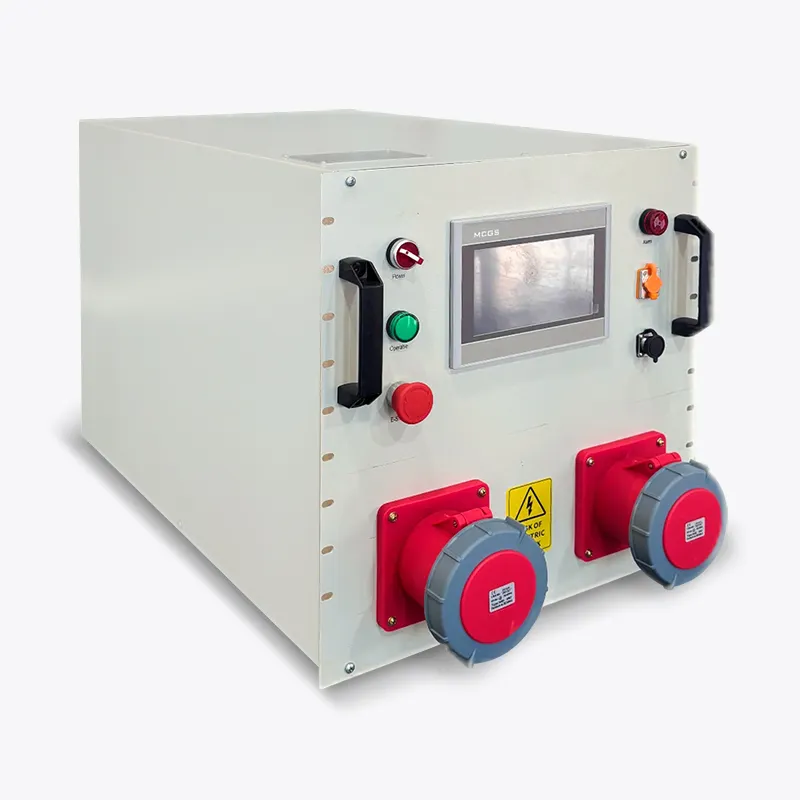

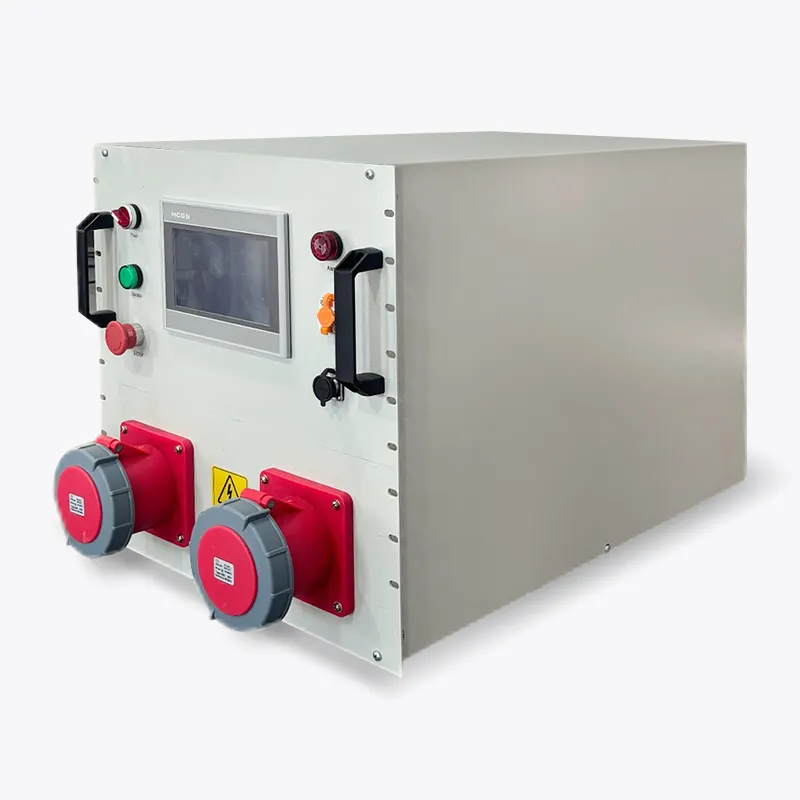

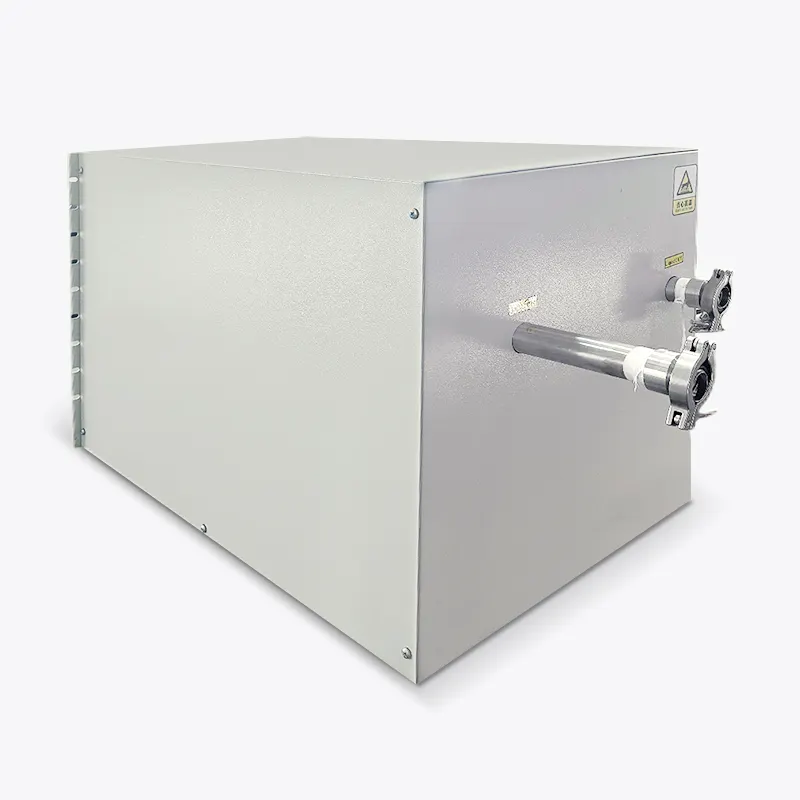

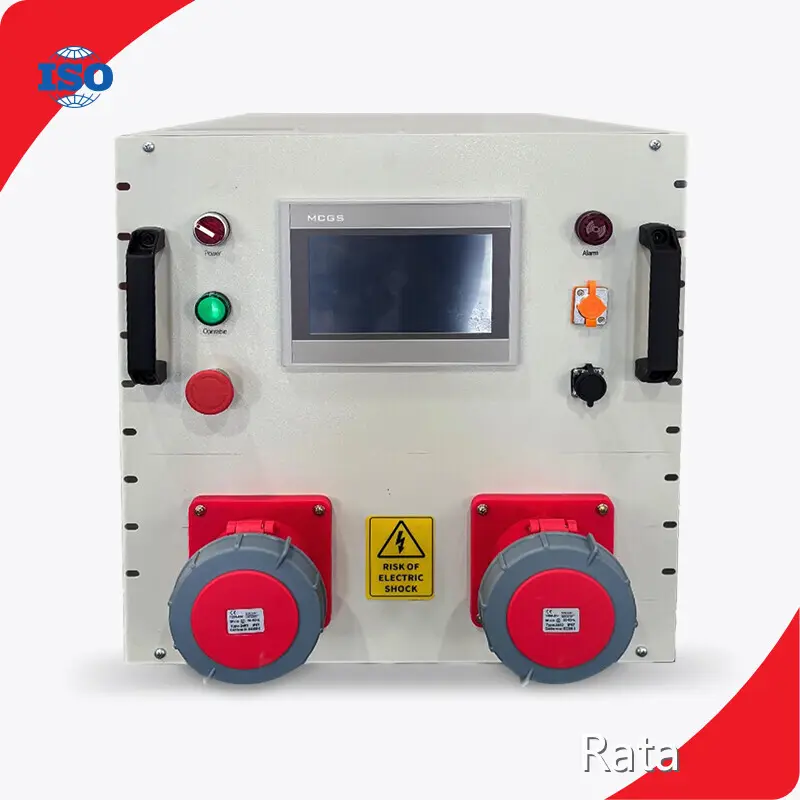

- Liquid Cooled Load Bank (Model RTLALB60M) providing 60 kW active load for indoor rack-mount or cabinet testing.

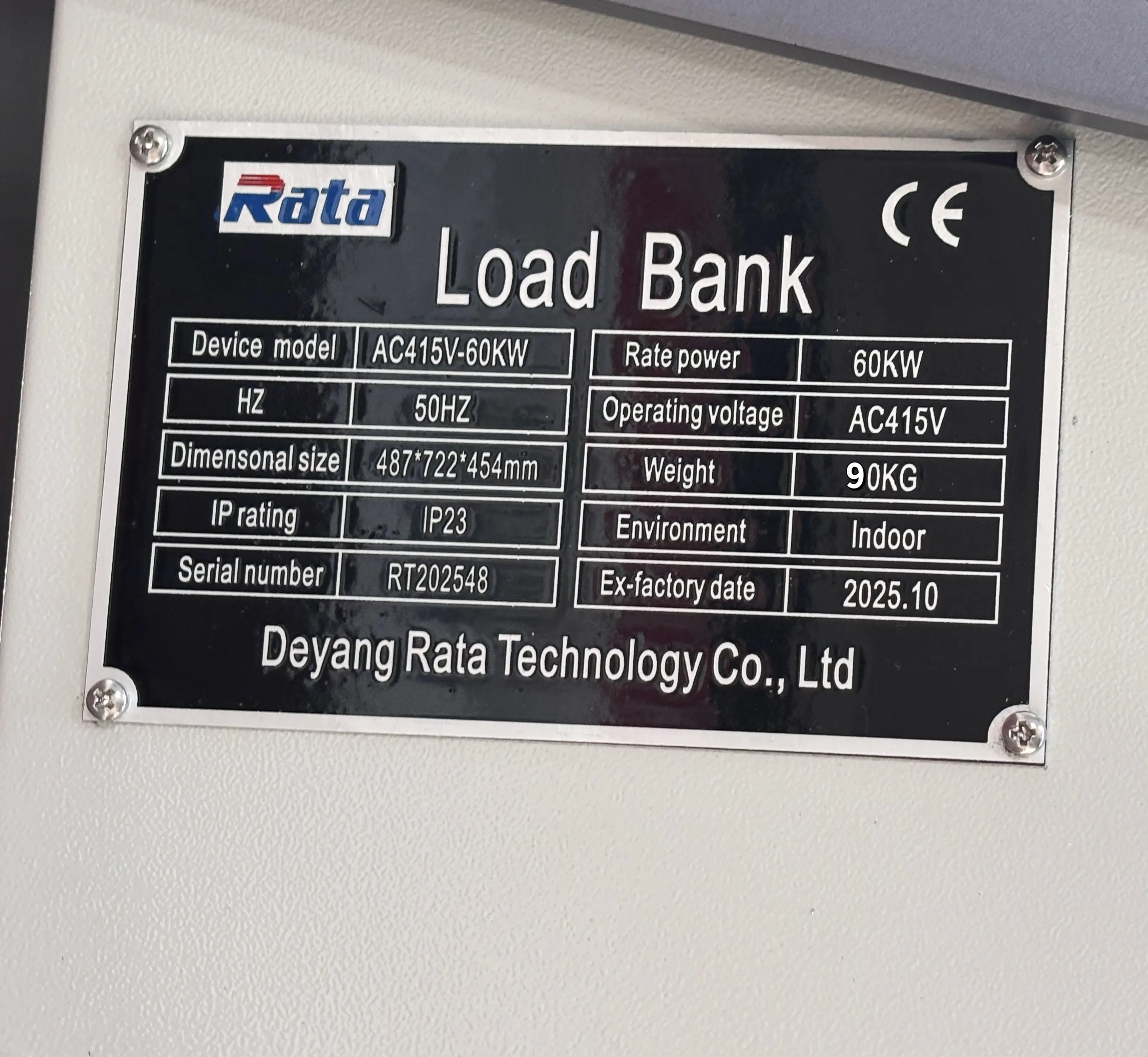

- Rated for 415 Vac, 50 Hz, 3‑phase operation; 10U height (19" rack compatible), approx. 90 kg.

- Continuous-duty design with liquid-cooled resistor modules housed in stainless steel and an IP23 indoor control chamber.

Product Features

- Liquid-cooled resistor modules (liquid-heated tube structure) for high thermal efficiency and stable operation.

- Precise load control with multi-step configuration (LA/LB/LC: 1+2+2+5+10 kW) and load accuracy ±3%.

- Integrated sensors and monitoring (temperature, flow) plus HMI touchscreen showing current, voltage, power, inlet/outlet temps, ΔT and flow.

- Protections: minimum-flow, overcurrent, fuse, outlet-temperature protection; automatic disconnect and alarm on fault.

- Robust build: 304 stainless steel resistor enclosure, cold-rolled stainless plate cabinet, quick connectors (C19), DN25 water flanges, Schneider MCBS/contactors and Siemens PLC available.

Product Value

- Low-noise operation (no high-power fans) ideal for noise-sensitive indoor environments such as data centers and labs.

- Space- and power-dense solution for testing UPS, energy storage inverters and small generators where rack or room space is constrained.

- Real-time monitoring and automatic safety interlocks reduce test risk and operator oversight, supporting reliable and repeatable validation.

- Lower lifecycle maintenance from a simple, stainless-steel liquid circuit and robust components—suited for frequent or long-term testing.

Product Advantages

- Higher acoustic comfort and lower airflow disturbance compared with air-cooled load banks.

- Industrial-grade components and certifications (ISO9001/14001/45001, CE) for dependable performance and compliance.

- Accurate, stable loading with proven international-brand electrical controls (Siemens/Schneider) and continuous-duty capability.

- Compact, portable rack format (10U, 19") with customizable appearance and proven manufacturing/quality control from Rata.

Application Scenarios

- UPS testing and commissioning in data centers and critical facilities.

- Energy storage and inverter testing for ESS manufacturers and integrators.

- Small generator load testing and validation in factories or rental fleets.

- Laboratory and R&D power testing, manufacturing QA, and modular or indoor test environments where noise, space and precise control matter.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
