Rack Mounted Load Banks by Rata-1
Product Overview

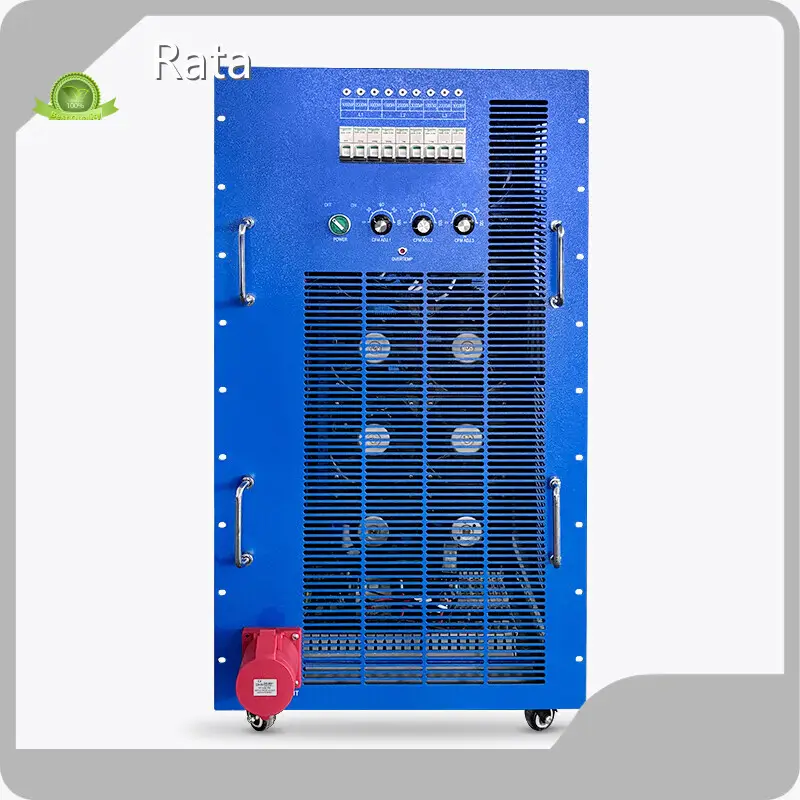

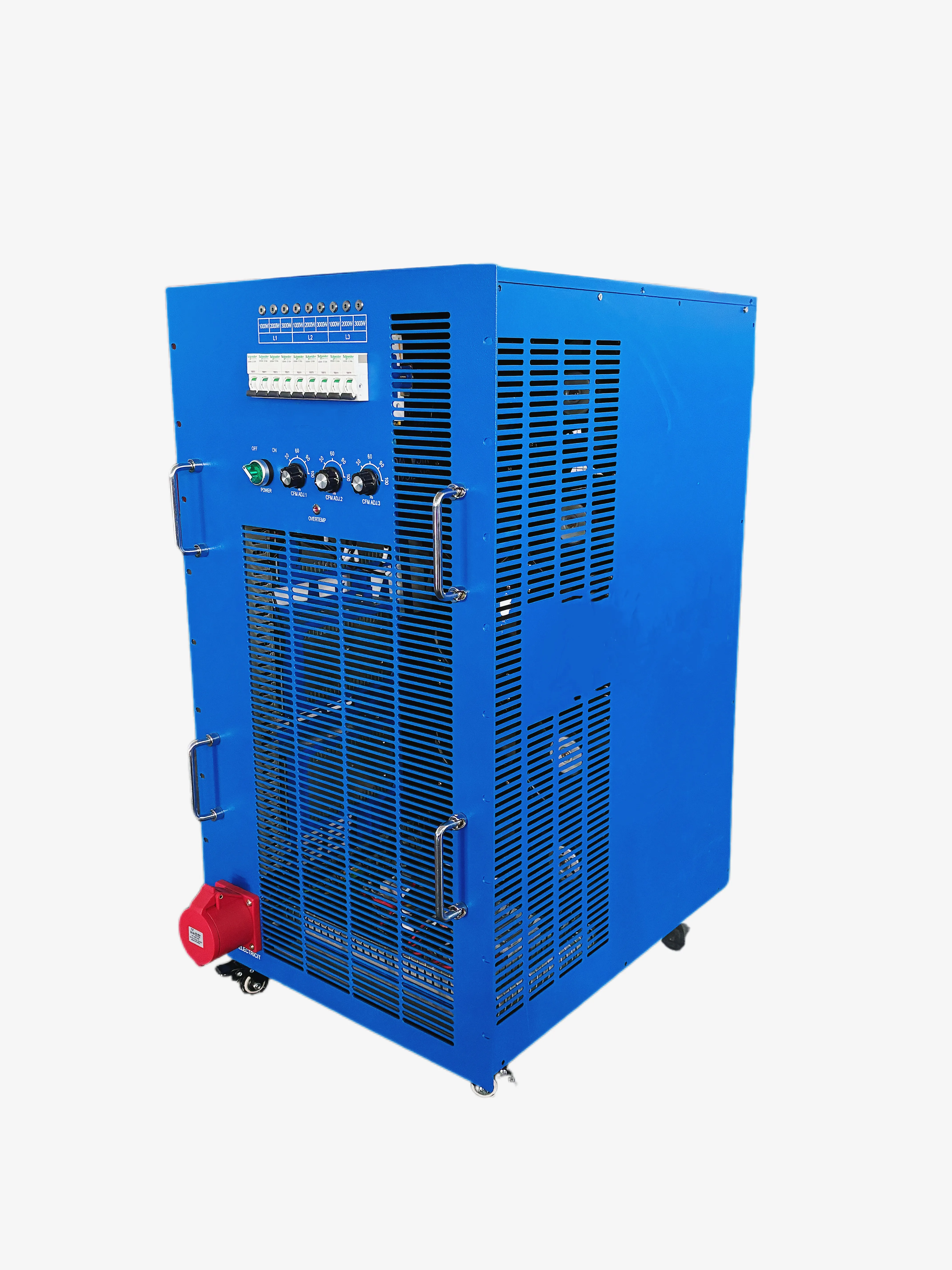

- The Rata RTLB18‑RM is an 18 kW rack‑mounted load bank engineered for accurate, repeatable electrical loading in data centers, UPS and generator test environments. It is built to 19‑inch rack width standards and designed for reliable, rack‑integrated airflow testing and cooling system verification.
Product Features
- Multi‑level forced‑air control: selectable airflow levels 0, 30%, 60%, 90% and 100% with control accuracy ±2%.
- High‑capacity cooling: 10 custom DC 26 V fans delivering roughly 5.5 m³/s of airflow (spec ~5,508–5,570 m³/h) with front intake / rear exhaust.
- Robust thermal protection: 80°C visual alarm and automatic shutoff at 90°C.
- Precise load switching: stepped load control implemented with Schneider circuit breakers.
- Resistive load elements: finned heating resistive tubes; rated for 400 Vac, 3‑phase, 50/60 Hz. Remote and manual control via push buttons and LoadMaster Remote™.
Product Value
- Provides accurate, repeatable loading for verification of UPS, generators and cooling systems, reducing commissioning and maintenance risk.
- Compact rack form factor simplifies integration into existing test racks and minimizes footprint in data halls.
- Built‑in safety and control features reduce need for external protective equipment and enable safer, more efficient testing workflows.
Product Advantages
- High reliability and industry‑grade components (Schneider breakers, custom fans) for long service life and consistent performance.
- Fine airflow and load step control deliver precise simulation of real world operating conditions for better diagnostics.
- Comprehensive protection (thermal alarms, trip, IP23 rating) and standardized electrical connections (32 A five‑pin plug) simplify deployment and safe operation.
- Portable handling features and bundled cabling make field use and rack installation straightforward.
Application Scenarios
- Data center commissioning and maintenance (cooling verification, airflow balancing).
- UPS, generator and power system load testing and acceptance.
- Laboratory and R&D test benches for power electronics and new energy sources.
- On‑site diagnostics for critical infrastructure where controlled, repeatable electrical loading is required.
