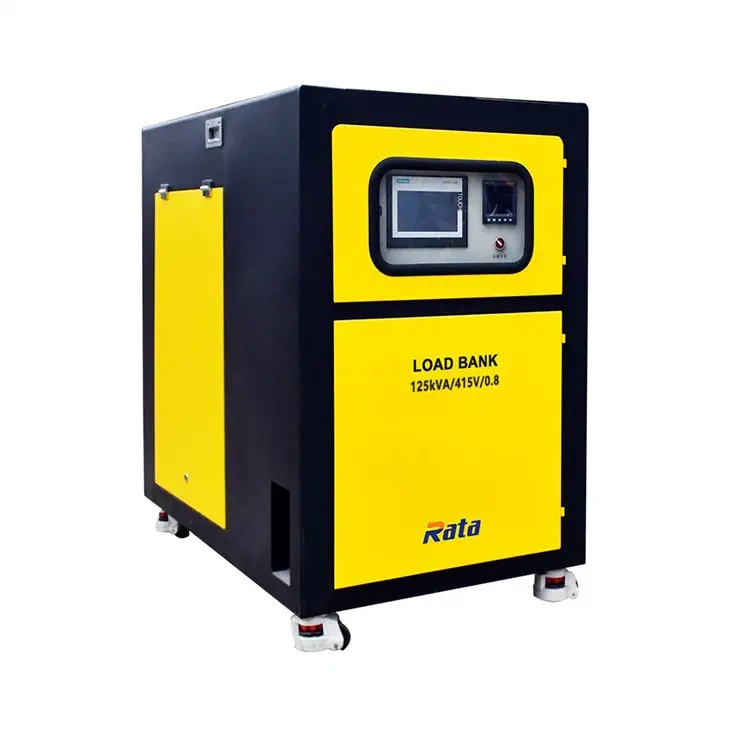

125kVA/415V Resistive Reactive Load Bank 1

125kVA/415V Resistive Reactive Load Bank 2

125kVA/415V Resistive Reactive Load Bank 3

125kVA/415V Resistive Reactive Load Bank 4

125kVA/415V Resistive Reactive Load Bank 5

125kVA/415V Resistive Reactive Load Bank 6

125kVA/415V Resistive Reactive Load Bank

Rata-R100kW/L75kvar/415V/PF0.8 is a 125kVA resistive reactive load bank produced by Rata. The load power factor is 0.8, the active power is 100kW, the reactive power is 75kvar, and the minimum loading step is 1kW/ 1kvar. The control mode is local touch screen control and remote PC control.

Applications:

Geneartor testing:

Data center:

Warranty time:

3 years

Delivery time:

4 weeks

ISO Certification:

ISO9001/ISO14001

Brand:

RATA

Factory Price:

Negotiate

Supply Ability:

200,000 Piece/Pieces per Month

Port:

Shanghai and Guangzhou are both available

Payment Terms:

L/C,Cash,Western Union,T/T, Paypal

Min.Order Quantity:

1 pcs

ODM & OEM:

Available

Certification:

CE 60204 Standard

Inquiry

Write a Review

Our experienced QC teams ensure the product to be in its best quality.

125kVA/415V resistive reactive load bank

125kVA/415V resistive reactive load box (Figure 1)

Product description

Rata-R100kW/L75kvar/415V/PF0.8 is a 125kVA resistive reactive load bank produced by Rata. The load power factor is 0.8, the active power is 100kW, the reactive power is 75kvar, and the minimum loading steps is 1kW/1kvar, the control mode is local touch screen control and remote PC control.

Application scenarios

500kW/375kvar resistive inductive load bank (Figure 2)

Technical parameters

No.	Technical parameter
1	Rated power	Apparent power: 125kVA Active power: 100kW Reactive power: 75kVAR
2	Rated voltage/power factor	415V 50/60Hz, PF=0.8
3	Load steps	Resistive 100kW: 1, 2, 2, 5, 10, 10, 20, 50 kW Inductive 75kVAR: 1, 2, 2, 5, 5, 10, 10, 20, 20 kVAR
4	Load accuracy	± 2%
5	Sampling accuracy	Level 0.5
6	Display parameters	Voltage, current, active power, reactive power, frequency, power factor
7	Wiring	Copper bar (L1 L2 L3 N)
8	Operating mode	Continuously working
9	Cooling method	Forced air cooling, horizontal inlet, horizontal outlet
10	Control power	Three-phase four-wire 380VAC
11	Control method	Local touch screen control and remote PC control, RS485 (30m)
12	Protective function	Over current protection, over voltage protection, short circuit protection, high temperature protection, low air volume protection and emergency shutdown protection
13	Ambient temperature	-10°C ~ +50°C
14	Product Size	L1860mm x W1100mm x H1540mm
15	Product weight	500kg
18	Delivery time	30 days
19	Warranty time	1 year

Product Specifications

Remarks: All parameters can be customized
Power (kW)	Voltage (kV)	Frequency (Hz)	*Dimensions (mm, LWH)*	Weight (Kg)
Low voltage load bank
100	0.4	50	11009001000	320
200	0.4	50	135011001100	450
300	0.4	50	150012001200	650
400	0.4	50	170015001500	830
500	0.4	50	170016001600	950
600	0.4	50	180016001600	1150
800	0.4	50	190018001700	1900
1000	0.4	50	230017002100	2100
1200	0.4	50	250018002200	2300
1500	0.4	50	250018602300	2600
1800	0.4	50	300020002300	4000
2000	0.4	50	300020002300	5000
2500	0.4	50	400024382500	6000
3000	0.4	50	600024382500	7000
High Voltage Load Bank
1000	6/10.5	50/60	300024382500	3500
1200	6/10.5	50/60	400024382500	3900
1500	6/10.5	50/60	400024382500	4500
1600	6/10.5	50/60	500024382500	5000
1800	6/10.5	50/60	500024382500	6500
2000	6/10.5	50/60	600024382500	7500
2200	6/10.5	50/60	600024382500	8000
2500	6/10.5	50/60	600024382500	10000
3000	6/10.5	50/60	700024382500	12000
4000	6/10.5	50/60	800024382500	14000
5000	6/10.5	50/60	900024382500	15000
6000	6/10.5	50/60	1200024382500	16000
7000	6/10.5	50/60	1200024382500	17000
8000	6/10.5	50/60	1200024382500	18000

We have a professional lab to ensure high quality for this product.

product introduction

Rata-R100kW/L75kvar/415V/PF0.8 is a 125kVA resistive reactive load bank produced by Rata. The load power factor is 0.8, the active power is 100kW, the reactive power is 75kvar, and the minimum loading steps is 1kW/1kvar, the control mode is local touch screen control and remote PC control.

Product Specifications

Rated power	Apparent power: 125kVA Active power: 100kW Reactive power: 75kVAR
Rated voltage/power factor	415V 50/60Hz, PF=0.8
Load steps	Resistive 100kW: 1, 2, 2, 5, 10, 10, 20, 50 kW Inductive 75kVAR: 1, 2, 2, 5, 5, 10, 10, 20, 20 kVAR
Load accuracy	± 2%
Sampling accuracy	Level 0.5
Display parameters	Voltage, current, active power, reactive power, frequency, power factor
Wiring	Copper bar (L1 L2 L3 N)
Operating mode	Continuously working
Cooling method	Forced air cooling, horizontal inlet, horizontal outlet
Control power	Three-phase four-wire 380Vac
Control method	Local touch screen control and remote PC control, RS485 (30m)
Protective function	Over current protection, over voltage protection, short circuit protection, high temperature protection, low air volume protection and emergency shutdown protection
Ambient temperature	-10°C ~ +50°C
Product Size	L1860mm x W1100mm x H1540mm
Product weight	500kg

Application scenarios
